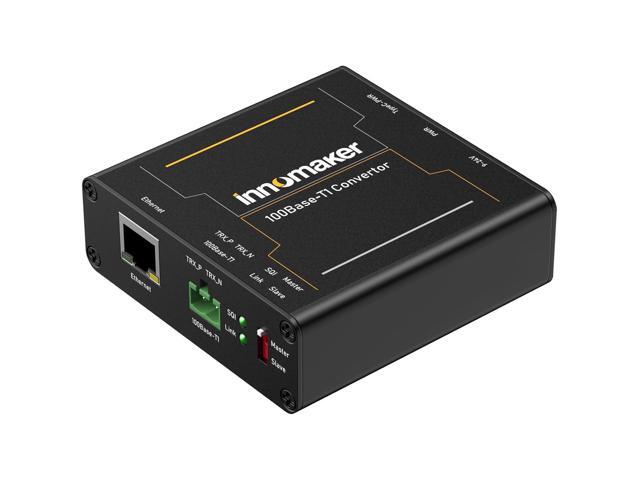

100BASE Ethernet Media Converter Device 2-Wire Ethernet 100BASE-T1 to Fast 100BASE-TX Automotive IEEE Compliant with 100Mbit/s Fullduplex Transmit

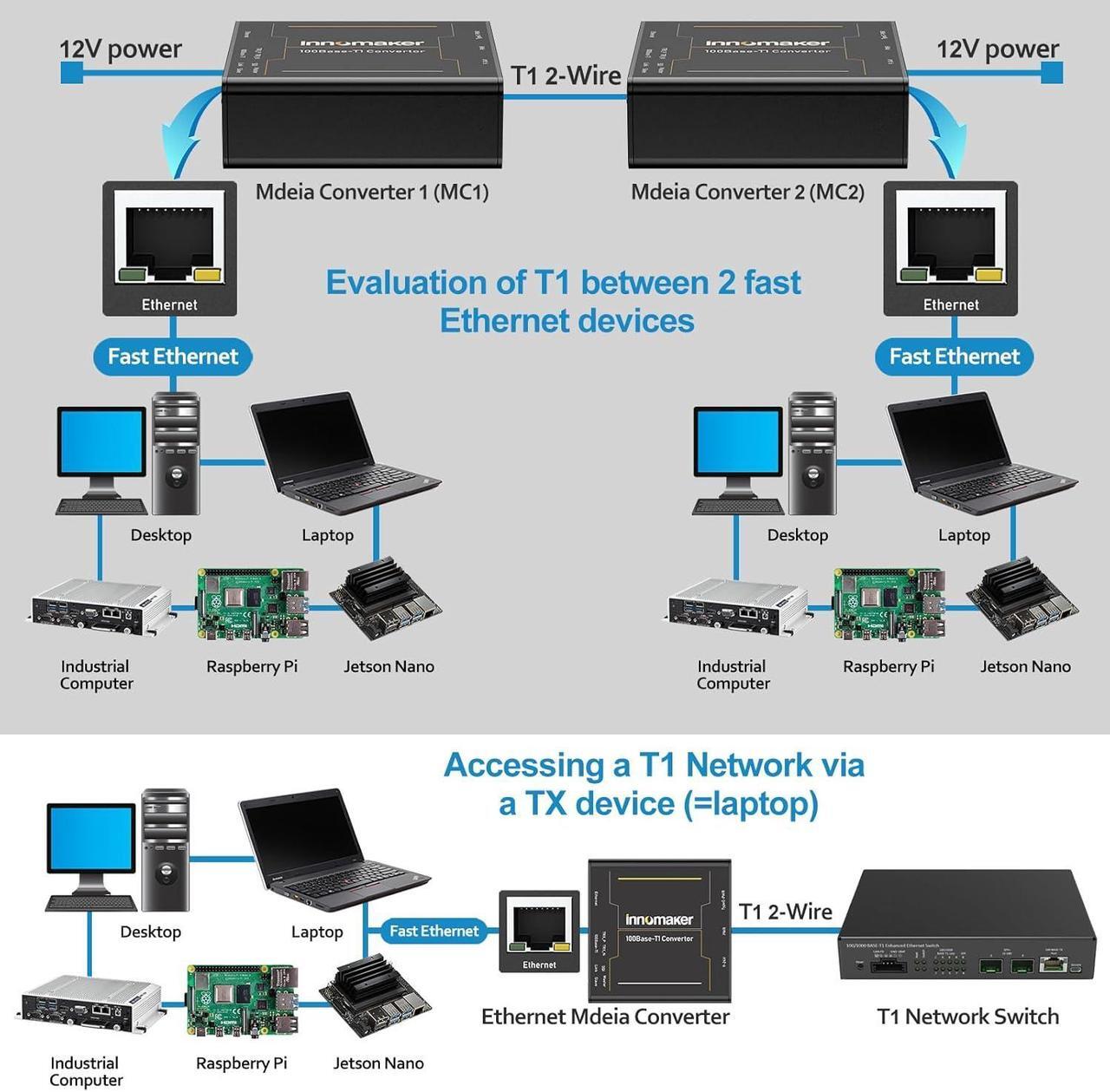

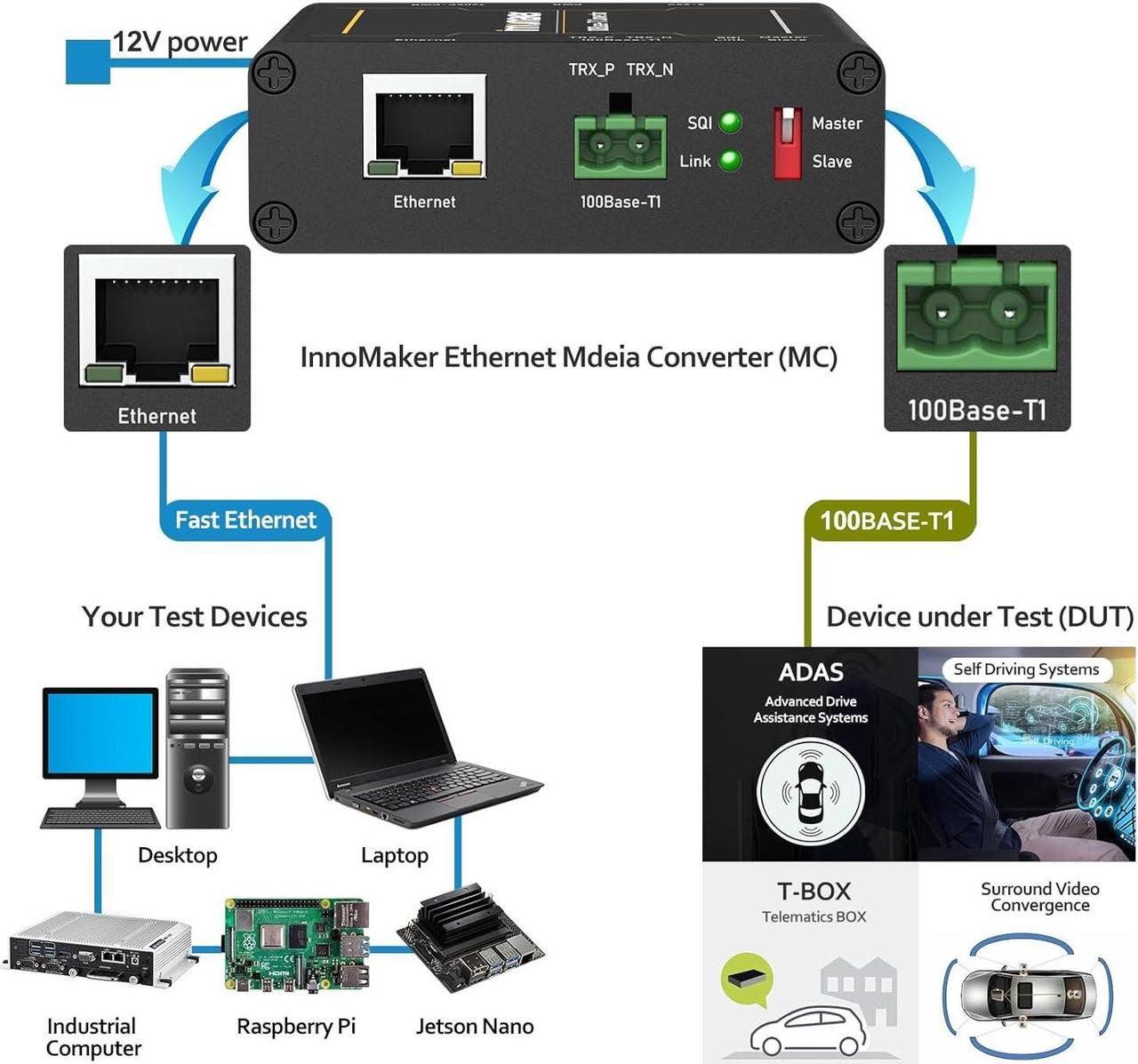

- 100BASE Ethernet Media Converter establishes a direct point-to-point conversion between automotive ECU's using 100BASE-T1(100 Mbit/s Fullduplex,) and any standard Fast Ethernet (100 Mbit/s, 100BASE-TX) device with an standard ethernet RJ45 connector.

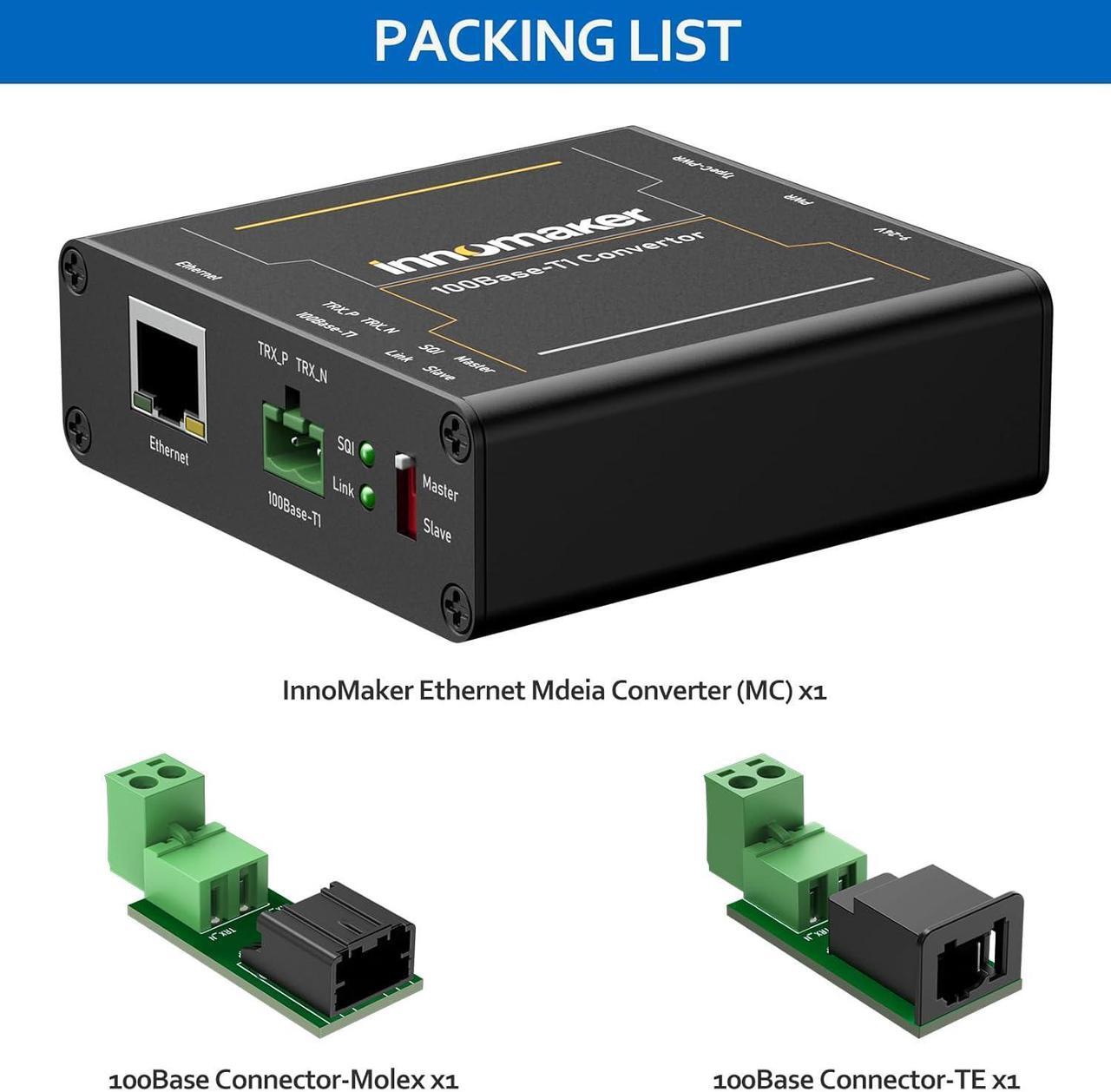

- 100BASE Ethernet Media Converter comes with 1x TE MATEnet and 1x MOLEX adapter. Do not provide the over unshielded twisted pair (UTP) cables. No extra hardware or software is needed to connect the device with a PC or a Laptop.
- By using the NXP TJA1101 IEEE 802.3bw compliant ethernet PHY transceiver, ensure a trustworthy and effective tool to customers that are looking for a cost-efficient, quick and manageable solution for testing requirements, with no latency and no packet loss.

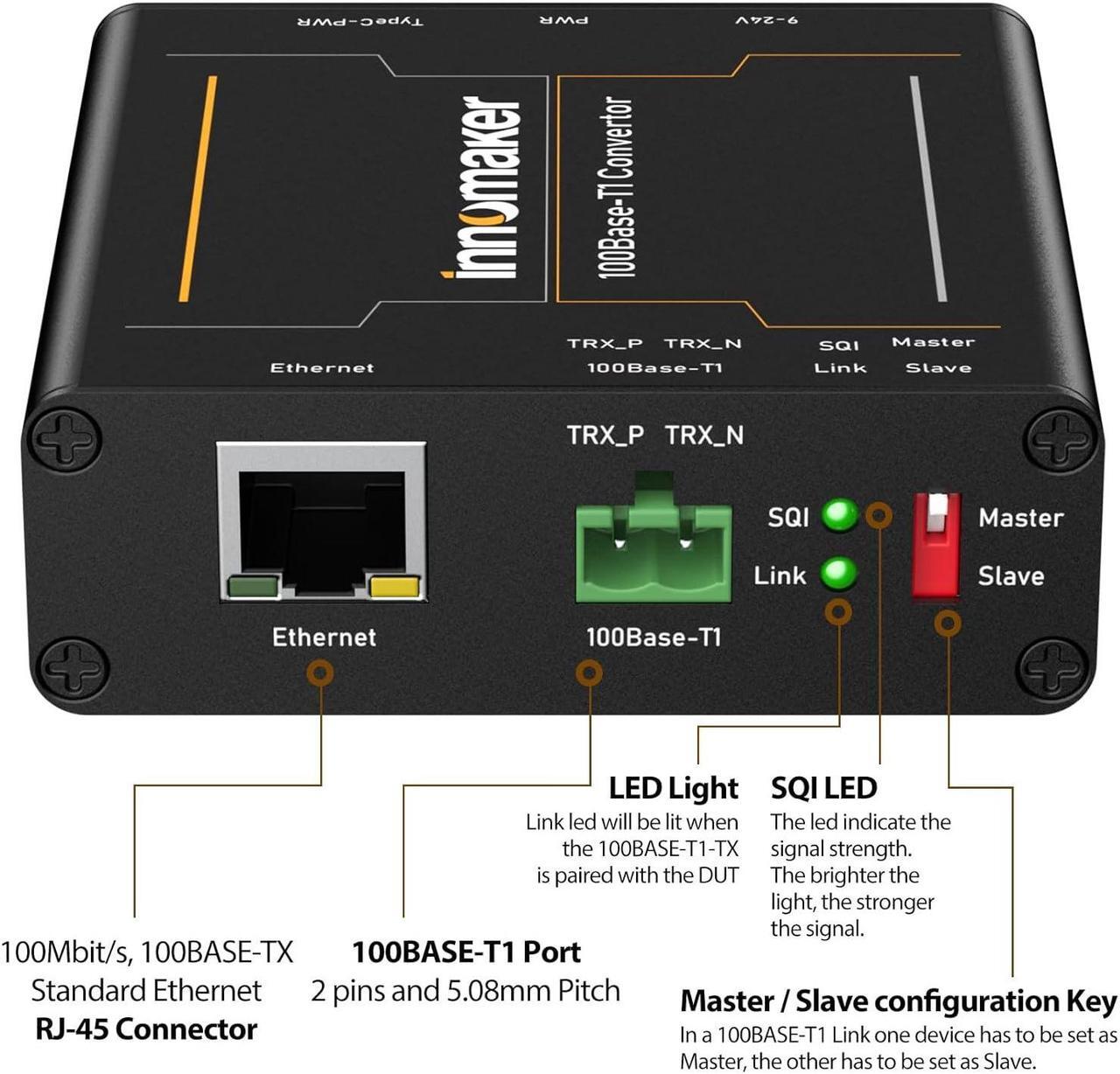

- Features with 100BASE-T1 Master/Slave configuration and link LED. The design makes it portable and easy to install in test racks. The galvanized sheet steel with black powder coating housing makes it robust.
- Plug and Play, No need to install the drivers. No c
+
+
Overview
Specs
Reviews

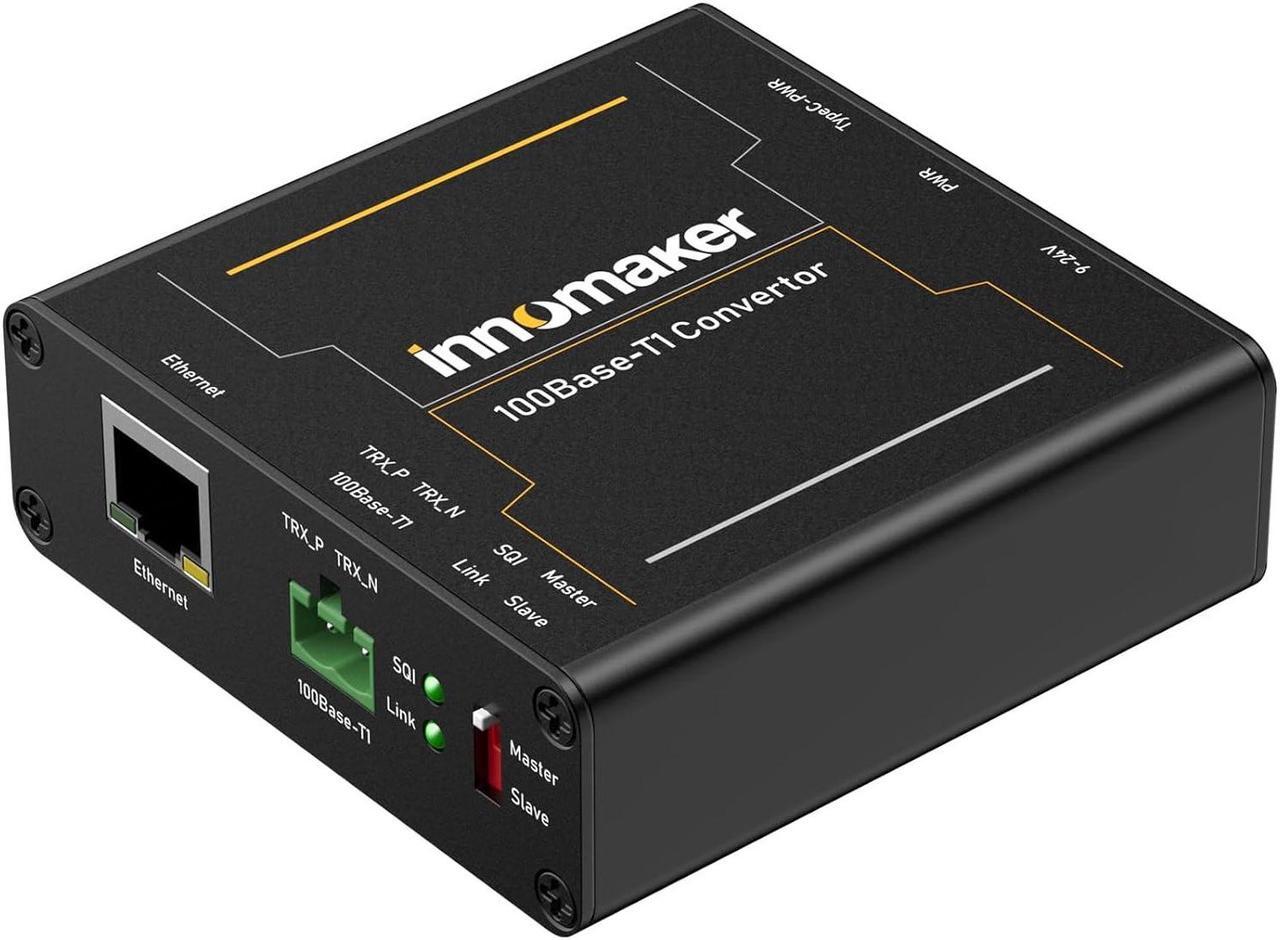

100BASE Ethernet Media Converter Device features bi-directional conversion between Standard Ethernet (100BASE-TX) and Automotive Ethernet (100BASE-T1). A massive stainless-steel housing, coupled with switches for ease of configuration enables the user to interact with the converter, effortlessly.
