What are the dimensions and weight of the Ubiquiti Gateway Fiber?

The dimensions of the Ubiquiti Gateway Fiber are 212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2 inches) and it weighs 605 g (1.3 lb).

What is the maximum throughput of the Ubiquiti Gateway Fiber?

The maximum throughput of the Ubiquiti Gateway Fiber is 5 Gbps with IDS/IPS and Layer 7 firewall.

Returns

$289^.99

Free 30-day Returns

This product is available from Newegg.

Limit 99999 per customer.

Price alert

Add to wish list

Sold by Techome

4.2 (83 seller ratings)

Shipped by Techome

Best Sellers

Newegg

$279^.00
+ FREE SHIPPING

Meet Your Seller

Techome

See Seller Store

Main image of Ubiquiti Gateway Fiber (UXG-Fiber (30W))

Alt view image 2 of 7 - Ubiquiti Gateway Fiber (UXG-Fiber (30W))

Alt view image 3 of 7 - Ubiquiti Gateway Fiber (UXG-Fiber (30W))

Alt view image 4 of 7 - Ubiquiti Gateway Fiber (UXG-Fiber (30W))

Alt view image 5 of 7 - Ubiquiti Gateway Fiber (UXG-Fiber (30W))

Alt view image 6 of 7 - Ubiquiti Gateway Fiber (UXG-Fiber (30W))

Alt view image 7 of 7 - Ubiquiti Gateway Fiber (UXG-Fiber (30W))

Shop All Ubiquiti Networks Products | Visit Techome Store

Ubiquiti Gateway Fiber (UXG-Fiber (30W))

(2) Write a Review

Model: Gateway Fiber

Gateway Lite
Dream Machine Pro
Dream Machine Special Edition
Cloud Gateway Ultra
Dream Machine Pro Max
Cloud Gateway Max
CloudKey+ 1TB SSD
CloudKey+ 1TB HDD
Gateway Fiber

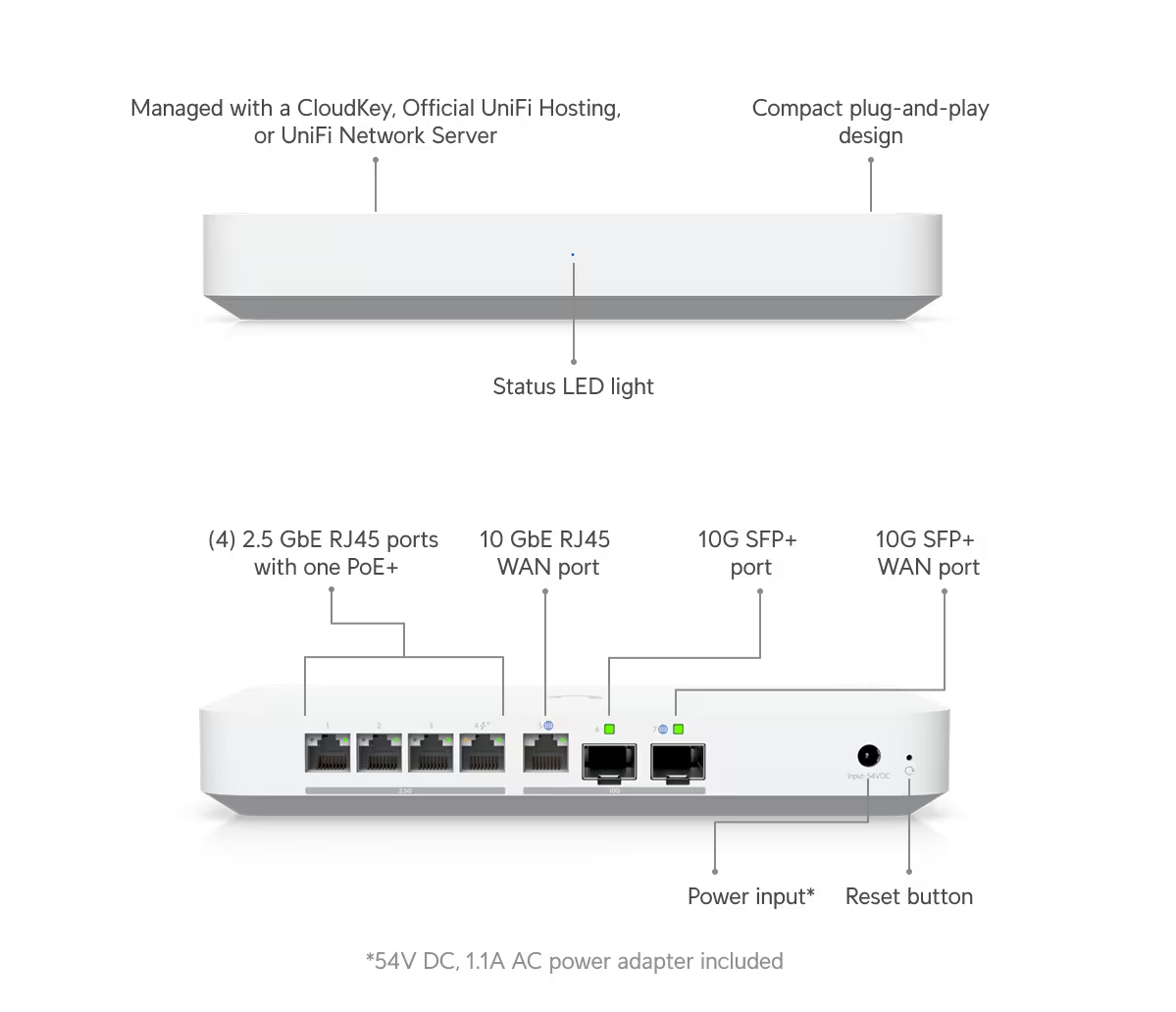

10G WAN & LAN: Includes 1 x 10G SFP+, 1 x 10 GbE RJ45 (WAN), and 1 x 10G SFP+ (LAN).
Built-in Switch: Integrated 4-port 2.5 GbE RJ45 switch with 1 PoE+ port (30W budget).
High-Speed Security: 5 Gbps throughput with IDS/IPS and Layer 7 firewall.
VPN & SD-WAN Ready: Supports WireGuard, OpenVPN, Teleport, Site-to-Site VPN.
Advanced Filtering: Includes ad blocking, DPI, and regional/domain-based control.
UniFi Integration: Managed via CloudKey, UniFi OS Hosting, or UniFi Network Server.

Overview

Specs

Reviews (2)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Gateway Fiber

UXG-Fiber (30W)

Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch

Deployment

What's in the box

Best Seller Ranking	#5 in Firewall & Network Security Devices

Model
Brand	Ubiquiti
Series	Advanced Hosting
Model	Gateway Fiber
Part Number	UXG-Fiber (30W)

Details
Form Factor	Desktop
Standards	Networking Multi-WAN Load Balancing Dynamic Routing: OSPF Advanced QoS Multicast DNS (mDNS) Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) Integrated RADIUS Server RADIUS over TLS (RadSec) Additional Internet Failover with UniFi LTE Backup Internet Quality and Outage Reporting MAC Address Table Size: 4,000
Security	Stateful Firewall Application-Aware Layer 7 Firewall DPI & Traffic Identification Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) Content Filtering Intrusion Prevention (IPS/IDS) Ad Blocking IDS/IPS Signatures: 55,000+ With CyberSecure
Ports	4 x 2.5 GbE RJ45, 1 x 10 GbE RJ45, 2 x 10G SFP+
WAN Ports	Max. WAN Port Count: 6 Default WAN Ports: (1) 10G SFP+, (1) 10 GbE RJ45
LEDs	Ethernet SFP+ System
VPN	License-Free SD-WAN: Site-to-Site VPN Site Magic IPsec OpenVPN VPN Server: Teleport Zero-Configuration VPN WireGuard OpenVPN L2TP VPN Client: OpenVPN WireGuard
Throughput	IDS/IPS Throughput: 5 Gbps
PoE Interface	PoE Budget: 30W Max. PoE Wattage per Port by PSE PoE+: 30W Voltage Range PoE Mode: 50—57V
Button	(1) Factory-reset
Compliance	NDAA Compliant
Power Input	Power Method: DC jack (54V DC/1.1A) Power Supply: 54V DC/1.1A (Adapter included) Supported Voltage Range: 100—240V AC
Max Power Consumption	25W (Excluding PoE output)

Features
Features	Processor: Quad-core ARM® Cortex®-A73 at 2.2 GHz System Memory: 2 GB

Dimensions & Weight
Dimensions	212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2")
Weight	605 g (1.3 lb)

Additional Information
First Listed on Newegg	June 17, 2025
