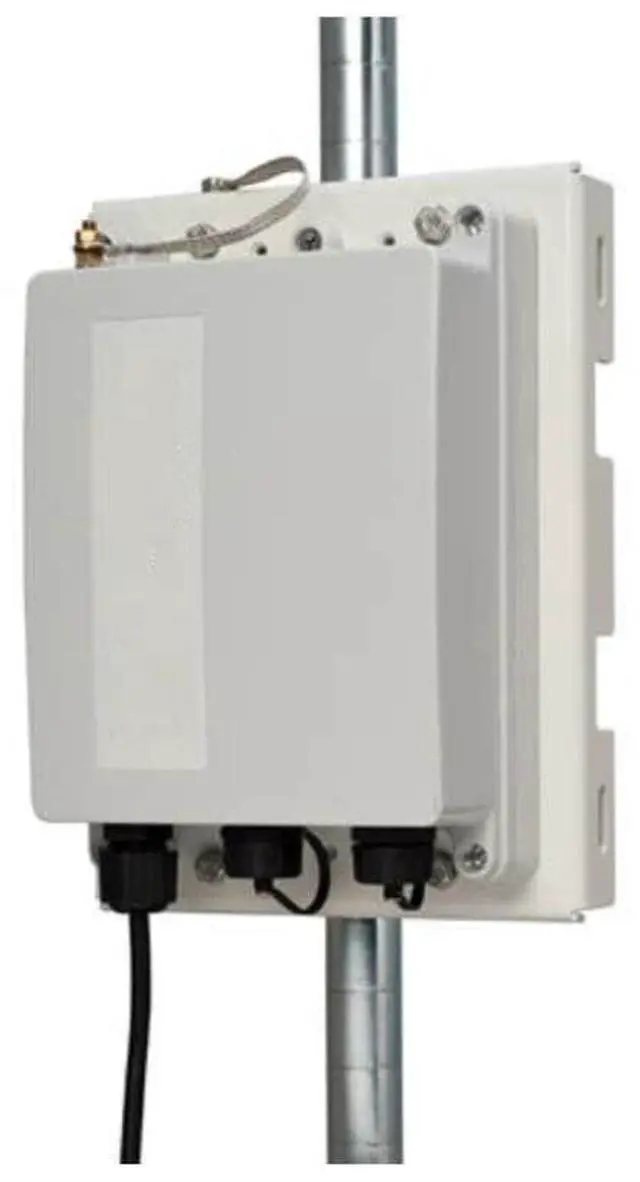

CISCO SYSTEMS AIR-PWRINJ-60RGD1= Power Injector 60W Outdoor NA

General InformationManufacturer: Cisco Systems, IncManufacturer
Part Number: AIR-PWRINJ-60RGD1=Manufacturer
Website Address:
http: //www. cisco.
comBrand Name: CiscoProduct
Line: AironetProduct
Name: Aironet
PoE InjectorMarketing Information: The power injector increases wireless LAN deployment flexibility of the access point by combining 55-VDC power with the data signal, and sending both to the connected access point. The power injector combines 55-VDC power (supplied by internal power supply) with the data signal, sending both to the access point. The power injector provides up to 60 W over all four wire pairs of shielded, outdoor rated Ethernet cable. The total length of the Ethernet cable from the AP to the switch must not exceed 320 ft (100 m). The wire gauge of the cable must be 26 AWG. The Ethernet cable from the switch to the power injector must be a shielded CAT5e or higher Ethernet cable. The Ethernet cable from the power injector to the access point must be a shielded outdoor-rated CAT5e or higher Ethernet cable with a 0.20 to 0.35 inch diameter. A shielded, outdoor Ethernet cable connects the power injector to a 10/100/1000 Ethernet switch, hub, or network, and another shielded, outdoor cable carries power and data to the access point's Ethernet port. The power injector's AC power receptacle connects an approved AC power cord to a wall outlet or power strip.

The power injector can be mounted on most horizontal and vertical surfaces, but must be mounted in a vertical orientation to comply with safety requirements.
Product Type: PoE
InjectorTechnical InformationProtection Type: Surge
ProtectionPower DescriptionInput Voltage: 120 V AC230 V ACMaximum
Output Voltage: 55 V DCMaximum
Output Power: 60
WInterfaces/PortsInput Ports: 1
EthernetOutput Ports: 1
EthernetPhysical CharacteristicsMount Type:
Pole/Wall-mountableHeight: 2.8"W
idth: 5.9"L
ength: 8.4"W
eight (Approximate): 2.98
lbMiscellaneousCompatibility: Cisco Aironet 1560 Series Outdoor Access PointsCertifications & Standards: CE IEEE 802.3 af IEEE 802.3 at FCC Part 15, Class B CE, EN50522 Class B EN55024 VCCI EN61000-4-5 Class 5 (6kV CM) UL60950-1 UL60950-22
Environmentally Friendly: YesEnvironmental
Certification: RoHSWEEEGS
