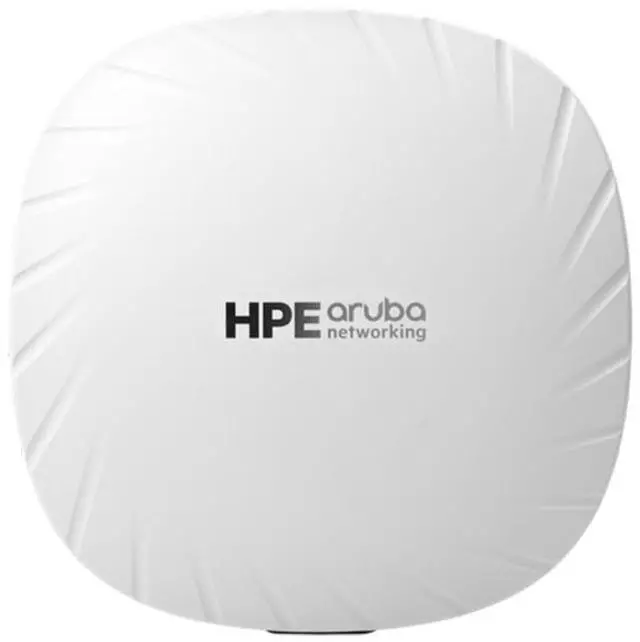

HPE Aruba Networking AP-515 (US) Dual Radio 4x4/2x2 802.11ax Internal Antennas Unified Campus Access Point | Q9H63A
OPEN BOX Product Type
- Wi-Fi 6 AP provides up to 2.69 Gbps maximum combined data rate.
- Supports OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security.
- IoT-ready with Bluetooth 5 and Zigbee support and fast wired connections with 2.5 Gbps Ethernet and 1 Gbps Ethernet ports.
- Client and RF optimization to match clients with the optimal AP and reduce coverage gaps.
- Dynamic segmentation and policy enforcement firewalls (PEF) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security.
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the HPE Aruba Networking AP-515
| Brand | HPE Aruba Networking |
|---|---|
| Series | 510 Series |
| Model | AP-515 |
| Part Number | Q9H63A |
| Standards | 802.11ax |
|---|---|
| WiFi Generation | Wi-Fi 6 |
| Device Management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Wireless Data Rates | Max bandwidths and peak data rate per band: 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), and maximum peak data rate 2.69 Gbps. |
| Frequency Band | 2.4 GHz, 5 GHz |
| Antenna | Four integrated dual-band downtilt omnidirectional antennas for 4x4 MIMO with peak antenna gain of 4.2 dBi in 2.4 GHz and 7.5 dBi in 5 GHz. |
| Mounting Location | Indoor |
| Operating Range | AP type: Indoor, dual radio, 5 GHz 802.11ax 4x4 MIMO and 2.4 GHz 802.11ax 2x2 MIMO |

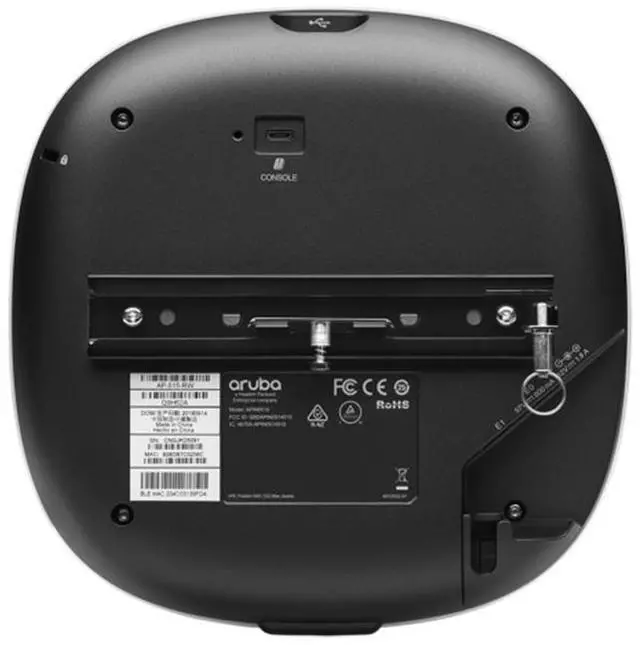

| Interface | E0: HPE Smart Rate port (RJ-45, maximum negotiated speed 2.5 Gbps) E1: 10/100/1000BASE-T Ethernet network interface (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) |
| Max Power Consumption | Maximum power consumption: DC powered: 16.0W PoE powered (802.3af, IPM enabled): 13.5W PoE powered (802.3at/bt): 20.8W Maximum power consumption in idle mode: 12.6W (PoE) or 9.7W (DC) Maximum power consumption in deep-sleep mode: 5.9W (PoE) or 1.5W (DC) |
| Dimensions | 20 x 20 x 4.6 cm |
|---|---|
| Weight | 0.81 Kg |
| First Listed on Newegg | June 21, 2019 |
|---|
