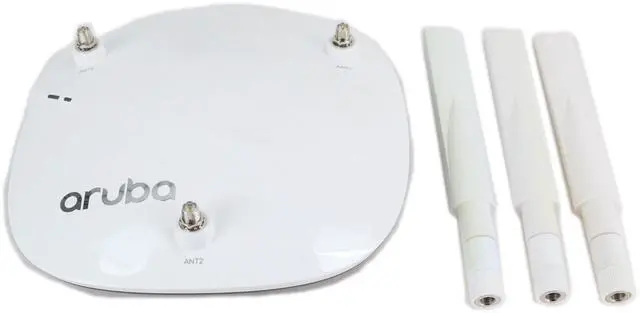

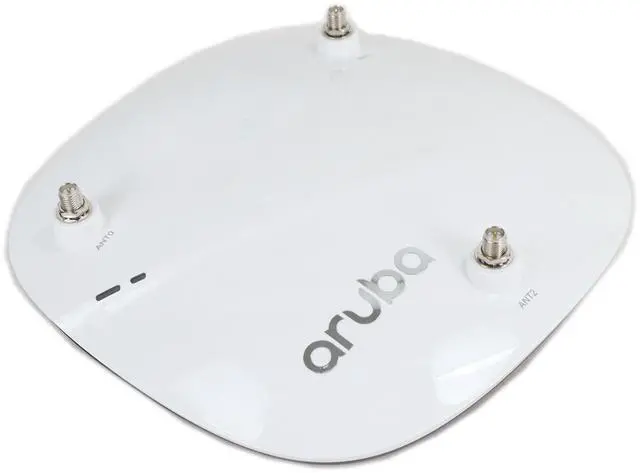

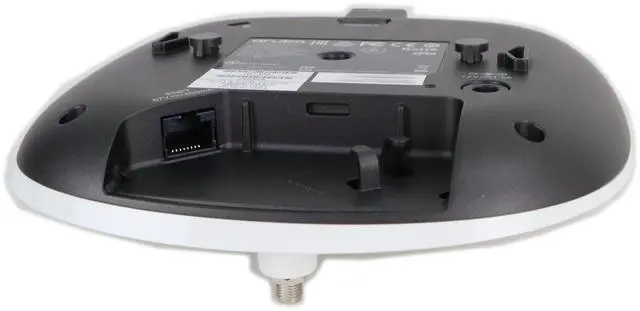

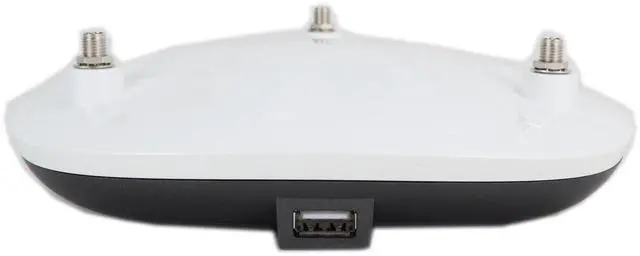

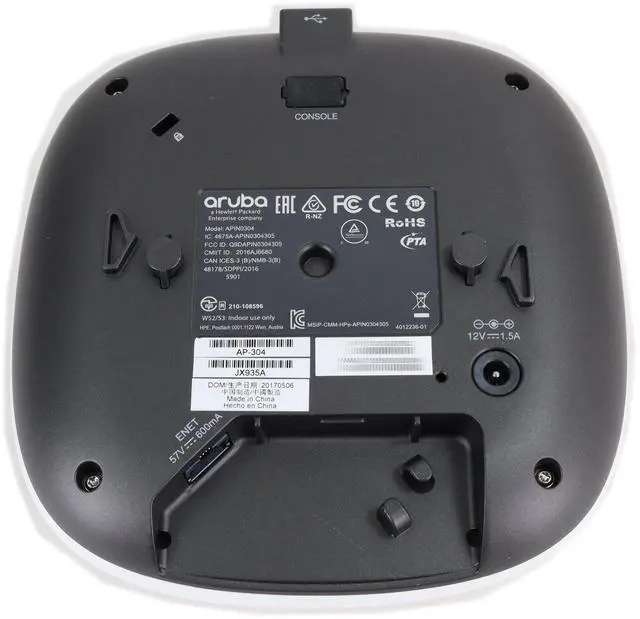

HP Aruba AP-304 Wireless Access Point 802.11 n/ac Dual 2x2 3x3 APIN0304 JX935A

HP Aruba AP-304 controller-based Access Point 802.11 n/ac Dual 2x2 / 3x3 APIN0304 JX935A

Condition: Refurbished
(AP with antennas. Units might have slight discoloration.)

Compeve SKU: 460100101513

Specification:

Model:
AP-304
APIN0304
PN - JX935A

Resolve sticky clients with MU-MIMO-aware ClientMatch
Maximum concurrent data rate of 1,300 Mbps in the 5GHz band and 300 Mbps in the 2.4GHz band (for an aggregate peak data rate of 1.6Gbps)
Participates in Arubas Dynamic Segmentation solution
Includes integrated Bluetooth Low Energy (BLE) radio, for advanced location and indoor wayfinding

AP-304 (controller-managed) and IAP-304 (Instant):
- 5GHz 802.11ac 3x3 MIMO (1,300 Mbps max rate) and 2.4GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios, with a total of three dual-band RP-SMA connectors for external antennas

AP-304/IAP-304: Three RP-SMA connectors for external dual band antennas. Worst-case internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 0.8dB in 2.4GHz and 1.6dB in 5GHz

AP type: Indoor, dual radio, 5GHz 802.11ac 3x3 MIMO and 2.4GHz 802.11n 2x2 MIMO
Software-configurable dual radio supports 5GHz (Radio 0) and 2.4GHz (Radio 1

5GHz: Three spatial stream Single User (SU) MIMO for up to 1,300 Mbps wireless data rate to individual 3x3 VHT80 client devices
5GHz: Two spatial stream Multi User (MU) MIMO for up to 867 Mbps wireless data rate to up to two (1x1 VHT80) MU-MIMO capable client devices simultaneously
2.4GHz: Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to individual 2x2 HT40 client devices
Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
