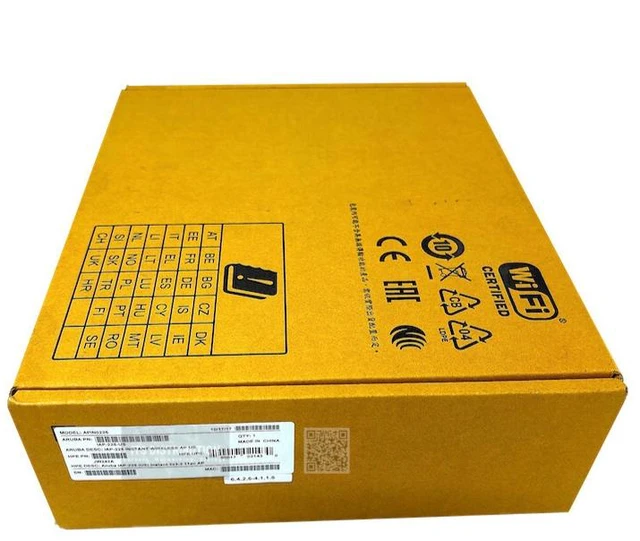

Aruba Instant IAP-225-US 802.11n/ac Dual 3x3:3 Integrated AP (JW242A)

Specs:

-2.4-GHz (600 Mbps max) and 5-GHz (1.3 Gbps max)

radios, each with 3x3 MIMO and three integrated omni-

directional downtilt antennas.

-AP type: Indoor, dual radio, 5 GHz 802.11ac and

2.4 GHz 802.11n

-Support for up to 256 associated client devices per radio,

and up to 16 BSSIDs per radio

-Power sources sold separately

-Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af or

802.3at-compliant source

-Six integrated downtilt omni-directional antennas

for 3x3 MIMO with maximum antenna gain of 3.5 dBi

in 2.4 GHz and 4.5 dBi in 5 GHz. Built-in antennas are

optimized for horizontal ceiling mounted orientation

of AP-225. The downtilt angle for maximum gain is

approximately 30 degrees

-Two 10/100/1000BASE-T Ethernet network interfaces (RJ-45)

-Auto-sensing link speed and MDI/MDX

-Load balancing support to achieve platform throughput

greater than 1 Gbps

-802.3az Energy Efficient Ethernet (EEE)

-PoE-PD: 48 Vdc 802.3af PoE or 802.3at PoE+

-DC power interface, accepts 1.7/4.0mm center-positive circular plug with 9.5 mm length

-USB 2.0 port (Type A connector)

-Serial console interface (RJ-45)

-Visual indicators (LEDs): Power/system status, Ethernet link status (2x; ENET0, ENET1), Radio status (2x; RAD0, RAD1)

-Kensington security slot

-Reset button

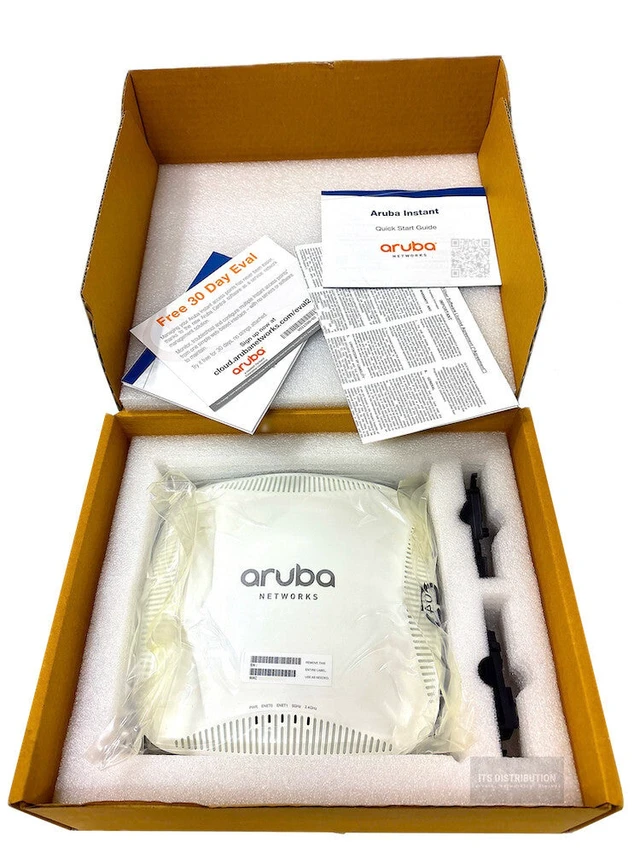

Included with AP:

- Mounting brackets (2) for attaching to 9/16-inch or

15/16-inch T-bar drop-tile ceiling

Manufacturer Part Numbers: JW242A, APIN0225, IAP-225-US, JW242-61001
