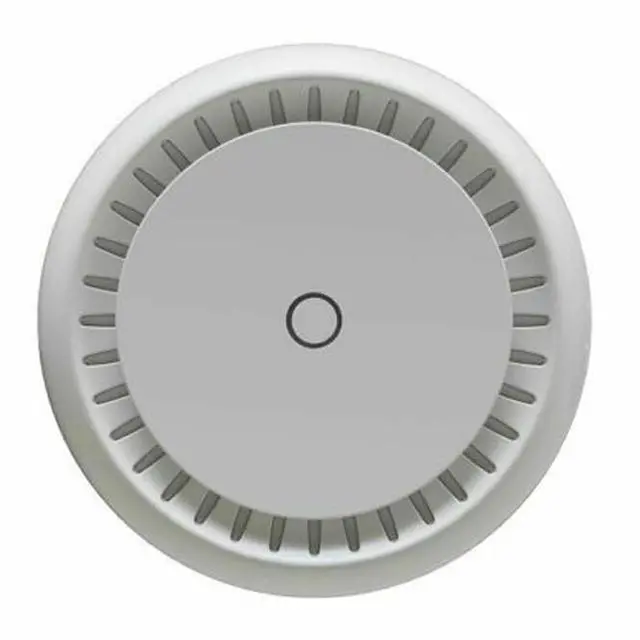

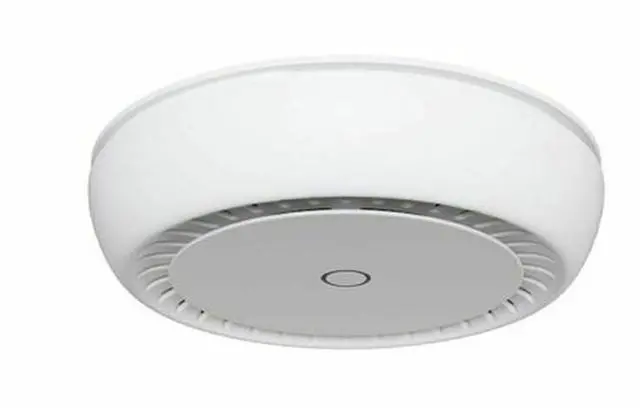

Mikrotik cAP XL ac Dual Band Dual Chain 2xG Ethernet ports International version
- The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!
- The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you dont have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.

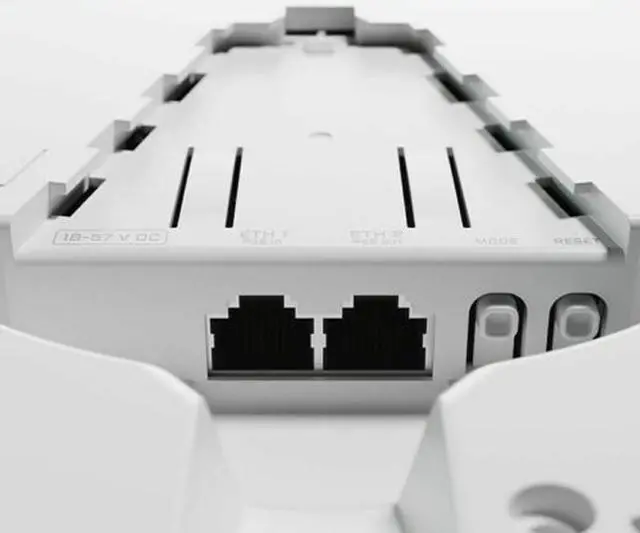

- Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Details
Product code RBcAPGi-5acD2nD-XL
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Wireless capabilities
Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11 b/g/n
Antenna gain dBi for 2.4 GHz 6
Wireless 2.4 GHz chip model IPQ-4018
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11 a/n/ac
Antenna gain dBi for 5 GHz 5.5
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5
AC speed AC1200
Ethernet
Details
10/100/1000 Ethernet ports 2
Number of 1G Ethernet ports with PoE-out 1
Powering
Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 24 W
Max power consumption without attachments 11 W
FAN count Passive
PoE in 802.3 af/at
PoE in input Voltage 18-57 V
PoE-out
Details
PoE-out ports Ether2
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 500 mA
Max out per port output (input 30-57 V) 330 mA
Max total out (A) 500 mA
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
Other
Details
Mode button Yes
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 26 -100
11MBit/s 26 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -96
54MBit/s 21 -80
MCS0 26 -96
MCS7 20 -75
MCS9 18 -70
