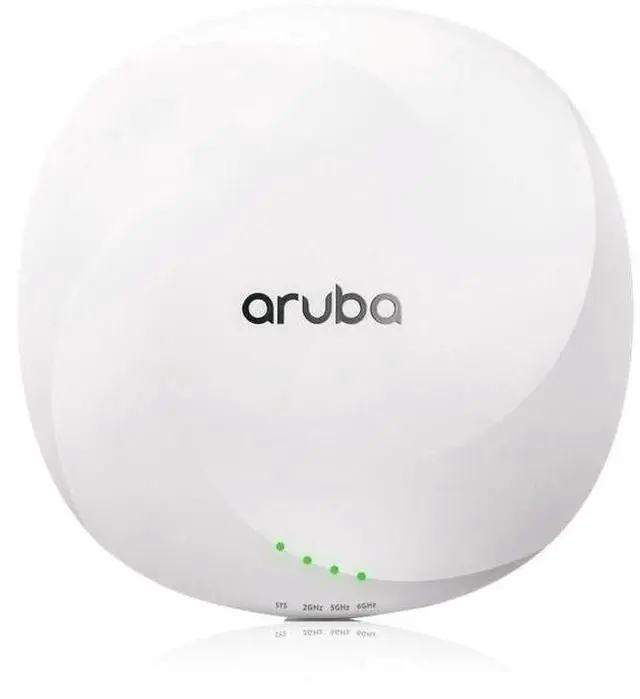

Aruba R7J33A AP-635 Tri Band 802.11ax 3.90 Gbit/s Wireless Access Point - Indoor - TAA Compliant

General InformationManufacturer: Hewlett Packard EnterpriseManufacturer
Part Number: R7J33AManufacturer
Website Address:
http: //www. hpe.
comBrand Name: ArubaProduct
Series: 630Product
Model: AP-635Product
Name: AP-635
Wireless Access PointMarketing Information: Fast, resilient, and secure Wi-Fi 6E connectivityFor enterprises who need more wireless capacity and wider channels, Aruba 630 Series Campus APs are designed to take advantage of the 6 GHz band via three dedicated radios. By using the 6 GHz band, capacity is more than doubled - so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices and growth in cloud. Unique to Aruba, the 630 Series includes ultra tri-band filtering and dual 2.5 Gbps ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity. MORE CAPACITY AND WIDER CHANNELS
The 630 Series APs are designed to take advantage of the 6 GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. It delivers 3.9 Gbps maximum aggregate data rates Tri-radio, 2x 2:2 MIMO in all three bands ( 3.9 Gbps aggregate peak). Advantages of 6GHzWi-Fi 6E provides up to 1200 MHz in the 6 GHz band for higher throughput and improved application performance. With up to seven 160 MHz channels, Wi-Fi 6E can better support low-latency, bandwidth hungry applications like high-definition video and artificial reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6 GHz band so there is no interference or slowdowns due to legacy devices. Device class supportThe 630 Series APs are part of the low power indoor (LPI) device class. This fixed indoor-only class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services which is required for standard class APs. LESS INTERFERENCE630 Series Access Points include Aruba's ultra tri-band filtering, which enables enterprises to take advantage of the high end of 5 GHz with the lower end of 6 GHz without experiencing interference.

Since there is only 50 MHz between 5 GHz and the 6 GHz, without advanced filtering, enterprises would likely experience problems between the bands and would therefore be limited in the number of channels available. By applying advanced filtering capabilities, enterprises can take full use of available spectrum without creating coverage gaps or islands. BUSINESS CONTINUITY
The Series 630 APs provide high availability with two HPE Smart Rate ethernet ports for hitless failover for both data and power. Configurable to 1 or 2.5 Gbps, these dual ports provide business continuity for mission critical applications. GLOBAL READINESS
While the need for more Wi-Fi capacity is recognized across the globe, countries are approaching 6 GHz differently. The 630 Series APs are set up to automatically update regulatory rules once 6E regulations have been approved and certified.
Product Type: Wireless Access PointTechnical InformationWireless
LAN Standard: 802.11 axBluetooth
Standard: Bluetooth 5Network
Band: Tri
BandFrequency Band: 2.40
GHz5 GHz6 GHzIndoor/Outdoor: IndoorWireless
Transmission Speed: 3.90
Gbit/sMIMO Technology: YesBeamforming
Technology: YesData
Encryption: YesEncryption
Standard: WPA-ENTWPA2-ENTWPA3-ENTWPAWPA2WPA2-MPSKWPA3WPA3-SAE
Interfaces/PortsEthernet Technology: 2.5 Gigabit EthernetNumber of
Network (RJ-45) Ports: 2PoE (RJ-45)
Port: YesPoE
PD Port:
YesUSB: YesPhysical
CharacteristicsForm Factor: DesktopCeiling MountableAntenna
Form Factor:
InternalHeight:
2"Width: 8.7"D
epth: 8.7"W
eight (Approximate): 2.87 lbMiscellaneousTAA
Compliant: Yes
