What are the dimensions and weight of the Fortinet FortiGate Rugged 70G-5G-DUAL?

The dimensions of the Fortinet FortiGate Rugged 70G-5G-DUAL are 5.47 inches in height, 4.1 inches in width, and 4.8 inches in length, with a weight of 4.63 lbs (2.1 kg).

What are the key features of the Fortinet FortiGate Rugged 70G-5G-DUAL?

The Fortinet FortiGate Rugged 70G-5G-DUAL features a ruggedized design with a fanless operation, enterprise-grade protection through FortiGuard AI-powered Security Services, built-in SD-WAN for reliable connectivity, and simplified management for faster deployment and comprehensive monitoring.

$6,306^.99

Free 92-day Returns

Limit 99999 per customer.

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List

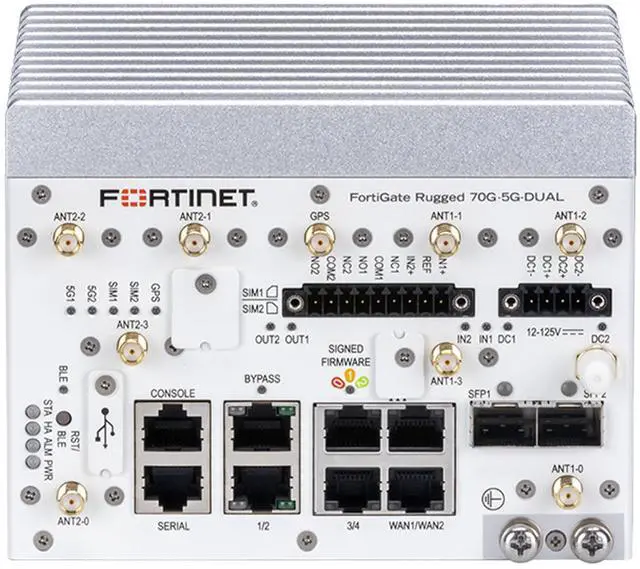

Main image of Fortinet FortiGate Rugged 70G-5G-DUAL, Ruggedized, indoor IP40 Next-generation Firewall w/ dual power inputs | FGR-70G-5G-DUAL

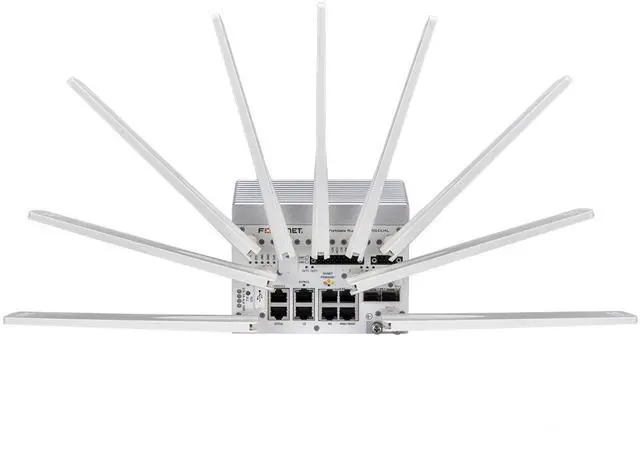

Alt view image 2 of 4 - Fortinet FortiGate Rugged 70G-5G-DUAL, Ruggedized, indoor IP40 Next-generation Firewall w/ dual power inputs | FGR-70G-5G-DUAL

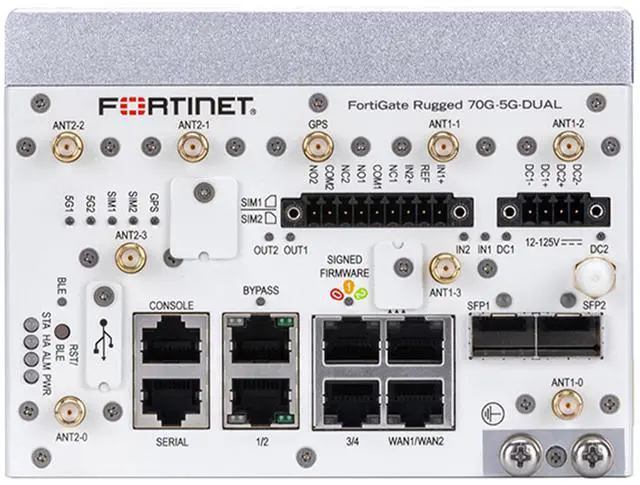

Alt view image 3 of 4 - Fortinet FortiGate Rugged 70G-5G-DUAL, Ruggedized, indoor IP40 Next-generation Firewall w/ dual power inputs | FGR-70G-5G-DUAL

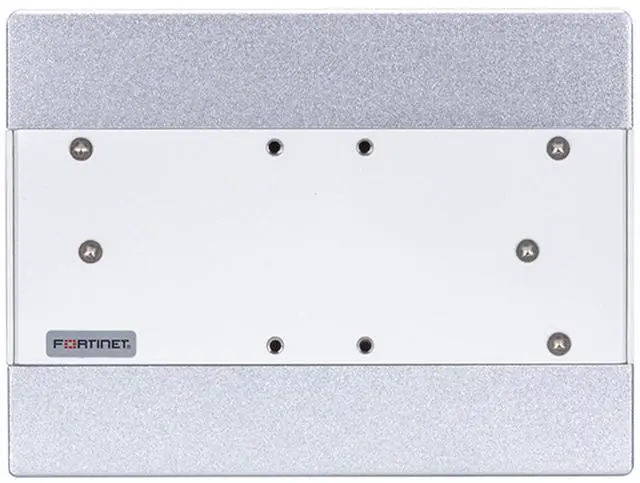

Alt view image 4 of 4 - Fortinet FortiGate Rugged 70G-5G-DUAL, Ruggedized, indoor IP40 Next-generation Firewall w/ dual power inputs | FGR-70G-5G-DUAL

Shop All Fortinet Products

Fortinet FortiGate Rugged 70G-5G-DUAL, Ruggedized, indoor IP40 Next-generation Firewall w/ dual power inputs | FGR-70G-5G-DUAL

Be the first to review this product...

Ruggedized Appliance with fanless design ensures reliable operations in harsh conditions.
Enterprise-grade Protection with consolidated FortiGuard AI-powered Security Services.
Built-in SD-WAN supports reliable connectivity with lower costs and better user experience.
Simplified Management enables faster deployment, comprehensive monitoring, security automation, and easier management.

View Data Sheet Details

Overview

Specs

Reviews

See all Q & A

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

FortiGateRugged-70G-5G-DUAL Ruggedized, indoor, 6x GE RJ45 LAN ports (including 2x GE RJ45 bypass port ), 2x SFP, 1x RJ45 serial port (data), 1x RJ45 serial port (console), 1x USB port, 1x MicroSD card slot, embedded 5G wireless WAN module (includes, 2x SIM slots - Active/Active, 8x external 5G antennae), Passive GPS (includes, 1x external SMA GPS antenna), dual power inputs.

Model
Brand	Fortinet
Series	FortiGate Rugged Series
Model	FortiGate Rugged 70G-5G-DUAL
Part Number	FGR-70G-5G-DUAL

Details
Form Factor	DIN-rail
Ports	6 GE RJ45 ports 2 SFP slots 1 bypass pair
VPN	SYSTEM PERFORMANCE AND CAPACITY IPv4 Firewall Throughput (1518/512/64 byte UDP packets): 8/8/8 Gbps Firewall Latency (64 byte, UDP): 5.82 µs Firewall Throughput (Packets Per Second): 12 Mpps Concurrent Sessions (TCP): 1.4 M New Sessions/Second (TCP): 85 000 Firewall Policies: 5000 IPsec VPN Throughput (512 byte): 7.1 Gbps Gateway-to-Gateway IPsec VPN Tunnels: 200 Client-to-Gateway IPsec VPN Tunnels: 500 SSL Inspection Throughput (IPS, avg. HTTPS): 1.4 Gbps SSL Inspection CPS (IPS, avg. HTTPS): 715 SSL Inspection Concurrent Session (IPS, avg. HTTPS): 1.4 M Application Control Throughput (HTTP 64K): 3.6 Gbps Virtual Domains (Default/Maximum): 10 / 10 Maximum Number of FortiAPs (Total/Tunnel): 96 / 48 Maximum Number of FortiTokens: 500 Maximum Number of FortiSwitches: 24 High Availability Configurations: Active-Active, Active-Passive, Clustering
Compliance	Regulatory Compliance: FCC Part 15 Class A, RCM, VCCI Class A, CE, UL/cUL, CB USGv6/IPv6
Max Power Consumption	26.2 W

Features
Features	CELLULAR WIRELESS Maximum Tx Power: 23 dBm (Power Class 3), 26 dBm (Power Class 2 in B41/n41) Regions: All Regions Modem Model: Telit Cinterion FN990A28-HP (2 SIM Slots, Active/Active) 5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 support on n41, n77, n78, n79 bands) LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 UMTS/HSPA+: B1, B2, B4, B5, B6, B8, B19 WCDMA: B1, B2, B4, B5 (B6, B19), B8 (for EU and APAC regions only) Module Certifications*: FCC, IC, RED, NCC, JATE/TELEC, KC, NCC+, RCM, GCF, PTCRB, AT&T, FirstNet, KDDI, KT, Telstra, T-Mobile US, Verizon Carrier Certifications: PTCRB, AT&T, AT&T FirstNet Capable, Verizon, T-Mobile Diversity MIMO GNSS Bias

Dimensions & Weight
Dimensions	Height x Width x Length (inches): 5.47 x 4.1 x 4.8
Weight	4.63 lbs (2.1 kg)

Additional Information
First Listed on Newegg	February 13, 2026
