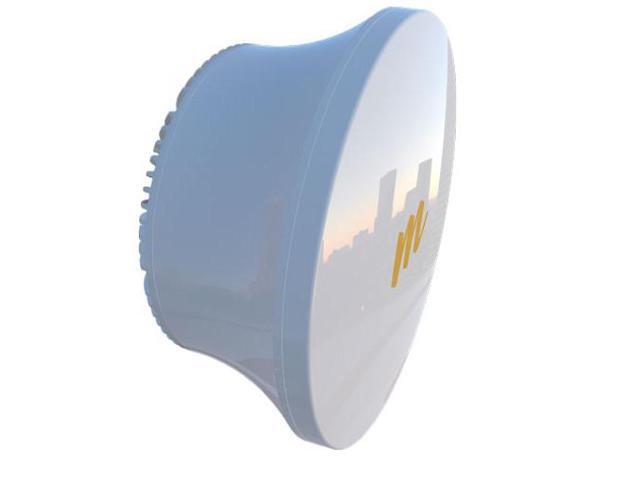

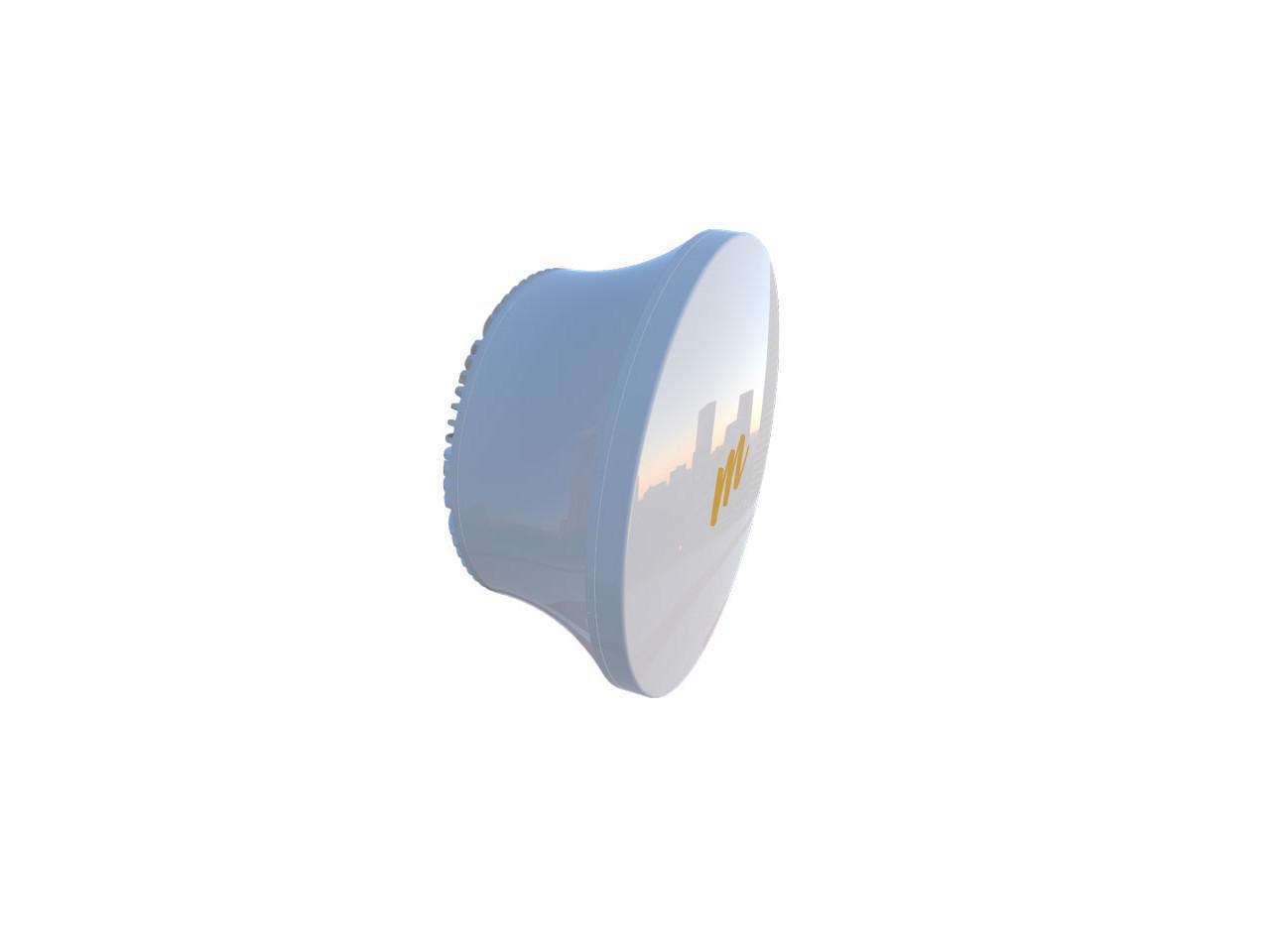

The Mimosa B24 Backhaul delivers nearly a Gigabit of low latency IP traffic in a single direction. Designed from the ground-up using reliable, high volume components, the B24 achieves incredible performance at a disruptive price that fits the economics of broadband providers and enterprises in suburban and urban markets. The B24 dynamically adapts to changing demands using Auto-TDMA technology. Low-latency Gigabit throughput can be directed either upstream or downstream as needed to maximize spectrum utilization throughout the day. Legacy FDD radios are limited to symmetric traffic usage, leaving vast amounts of spectrum constantly underutilized.

Product Features: Lightweight, Low
Power Gigabit Ethernet: 10/100/1000-BASE-T
Fiber Capable: Supports SFP+ interface for fiber operation
Ethernet Redundancy: Dual Link fail-over; Does not support simultaneous Ethernet + fiber operation Dual
Protocol Operation: 2 dual-stream radios operating on non-contiguous frequencies allow for traditional FDD-like performance or TDMA automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM 4 GHz 802.11 b/g/n radio for local management access
Security: 128-bit AES PSK with hardware acceleration
QoS: Supports 4 pre-configured QoS levels
GPS Location: GNSS-1 (GPS +
GLONASS) Collocation Synchronization: 1PPS GPS TX/RX synchronization for collocated co-channel radios; Adjustable up/downstream bandwidth ratio
Product

Specifications

: Max
Throughput: Up to 1.5 Gbps Ip aggregate
UL/DL Max PHY rate: 1.7
Gbps PHY Low Latency: 30 dB
Cross-Polar Isolation: >20dB
Polarization: Dual-linear (slant 45deg) Max
Power Consumption: 19.5 W
System Power Method: 48V DC 802.3 at compliant
System Lighting & ESD Protection: 6 kV
PoE Power Supply: Passive PoE compliant, 50V 1.2A power over ethernet (included)
Approvals: FCC 15.249, IC RSS210, ETSI EN 300-440 V 2.1.
1 CE RoHS Compliance: Yes;
WEEE Safety: EC/EN/ 60950-1
Physical:
Dimensions: ( 10.24 x 10.24 x 5.3 ) without bracket; ( 10.24 x 10.24 x 9.9 ) with bracket
Weight: 2.76 kg (6lbs) including mount
Enclosure Characteristics: Outdoor UV stabilized plastic; Powder-coated, aluminum mounting panel
Wind survivability: 200km/h (125 mph)
Wind Loading: 12.52 kg @ 160km/h ( 27.61 lbs @ 100 mph)
Mounting: Precision lightweight aiming pole mount with +-15deg elevation and +- 2.5 deg horizontal adjustment screws
Network Interfaces: Gigabit Ethernet (RJ45) and gigabit fiber (SFP) cage);
Operation modes: Hot standby
Environmental: Outdoor Ingress
Protection Rating: IP67
Operating Temperature: -40degC to +55degC (-40deg F to 131deg F)
Operating Humidity: 5 to 100% condensing
Operating Altitude: 4, 420m (14500') max
Shock & Vibration: ETS 300-019-2-4 class 4M5
Product Includes: (1) B24 Radio (1) Passive PoE 50V 1.2A (1) Pole Mount Horizontal Adjustment Screws
