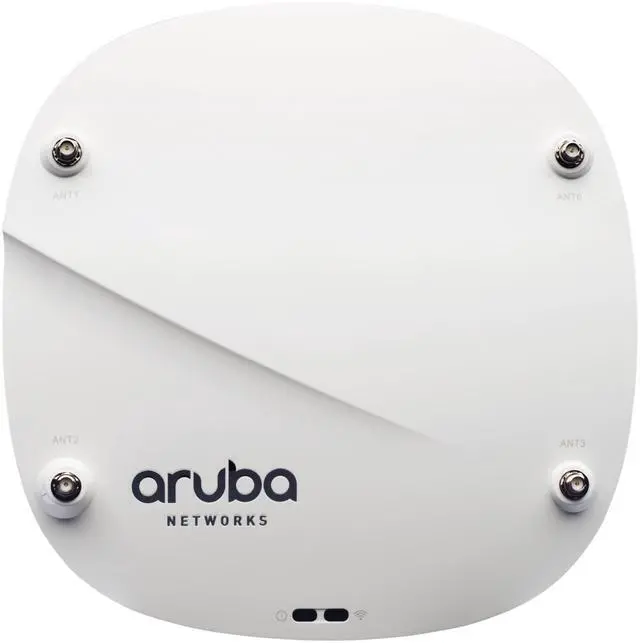

HPE Aruba AP-335 802.11n/ac 4x4:4 MU-MIMO Dual Radio Integrated Antenna 2.5+1 GbE AP (JW801A)

General InformationManufacturer: Hewlett Packard EnterpriseManufacturer
Part Number: JW801AManufacturer
Website Address:
http: //www. hpe.
comBrand Name: ArubaProduct
Series: 330Product
Model: AP-335Product
Name: AP-335
Wireless Access PointMarketing Information: The Aruba 330 Series access points provide the fastest gigabit data speeds and superb user experience for mobile devices and applications in a digital workplace. Designed with an integrated HPE Smart Rate port to scale up to 5Gbps Ethernet, the 330 Series allows enterprises to leverage their multi-gigabit Ethernet wired network infrastructures to eliminate bottlenecks. Thanks to ClientMatch technology, ArubaOS enables the 330 series to automatically detect and classify 802.11 ac Wave 2 capable mobile devices. This allows ClientMatch to automatically collect Wave 2 capable devices under a single Wave 2 radio so that performance benefits of multi-userMIMO can be realized - without the adverse effects of slower 802.11 ac and traditional 802.11 n capable mobile devices. This means increased network capacity and a boost in network efficiency. With a maximum concurrent data rate of 1, 733 Mbps in the 5 GHz band and 800 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 2.5G bps), the 330 Series Access Points deliver a best-in-class, next-generation 802.11 ac Wi-Fi infrastructure that is ideal for lecture halls, auditoriums, public venues, and high-density office environments.

The high performance and high density 802.11 ac 330 Series Access Points support 160 MHz channel bandwidth (VHT160), 4-stream multi-user MIMO (MU-MIMO) and 4 spatial streams (4SS). They provide simultaneous data transmission to multiple devices, maximizing data throughput and improving network efficiency. The 330 Series Access Points have an integrated Bluetooth Aruba Beacon that simplifies the remote management of a network of large-scale battery-powered Aruba beacons while also providing advanced location and indoor wayfinding, and proximity-based push notification capabilities. It enables businesses to leverage mobility context to develop applications that will deliver an enhanced user experience and increase the value of the wireless network for organizations.
Product Type: Wireless Access PointTechnical InformationWireless
LAN Standard: IEEE 802.11 acFrequency
Band: 5 GHz 2.40 GHzTotal Number of
Antennas: 12Number of
Internal Antennas: 12Wireless
Transmission Speed: 2.50
Gbit/sMIMO Technology: YesBeamforming
Technology: YesInterfaces/PortsEthernet
Technology: Gigabit EthernetNumber of
Network (RJ-45) Ports: 2PoE (RJ-45)
Port: NoPoE
PD Port:
YesVGA:
NoHDMI:
NoUSB:
YesPowerline: NoManagement
Port: YesPhysical
CharacteristicsForm Factor: Wall
MountableCeiling MountableHeight:
2"Width: 8.9"D
epth: 8.8"W
eight (Approximate): 2.54 lb
