Silarius SIL-86AP1G64 Dual-band 1G Gigabit 86 Panel Wireless Access Point
- The dual-band 86 Panel Wireless Access Point (Model SIL86AP1G64) is a 802.11ac AC1200 wireless access point independently developed by Silarius. The SIL86AP1G64 has a built-in MIMO antenna, Compliant with IEEE 802.11a/b/g/n/ac protocol and supports max wireless access rate of 1.167Gbps, which can provide a faster and better wireless connecting experience and wireless coverage. The SIL86AP1G64 can easily meet the best choice for various streaming media applications with high data volume. It can provide high-definition IP video with the best picture quality. It also supports VoIP and data applications with demanding service quality, and supports intelligent RF, QoS and Wireless Seam Roaming and other functions. It adopts Fast Ethernet port uplink to ensure wireless high-speed transmission, supports DC power supply and PoE power supply, and can be flexibly configured according to the customer's on-site power supply environment. Cooperating with Silarius AC series products
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Panel AP Highlights:
Dual-band MIMO Technology
Compliant with IEEE 802.11ac protocol standard, the maximum transmission rate can reach 1.167Gbps, adopt 2.4G and 5G dual radio link design, support four independent spatial streams, increase the number of terminal access four times.
Fast Ethernet Uplink Interface

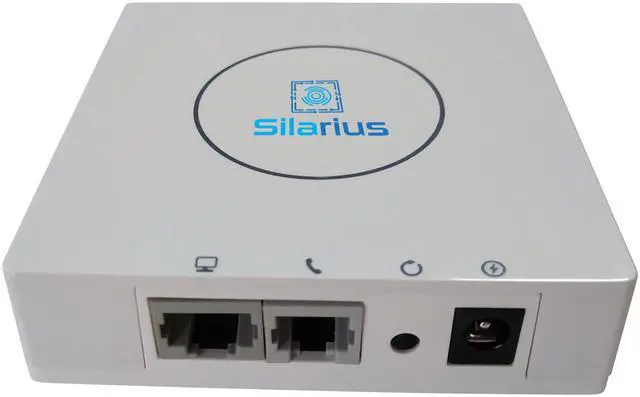

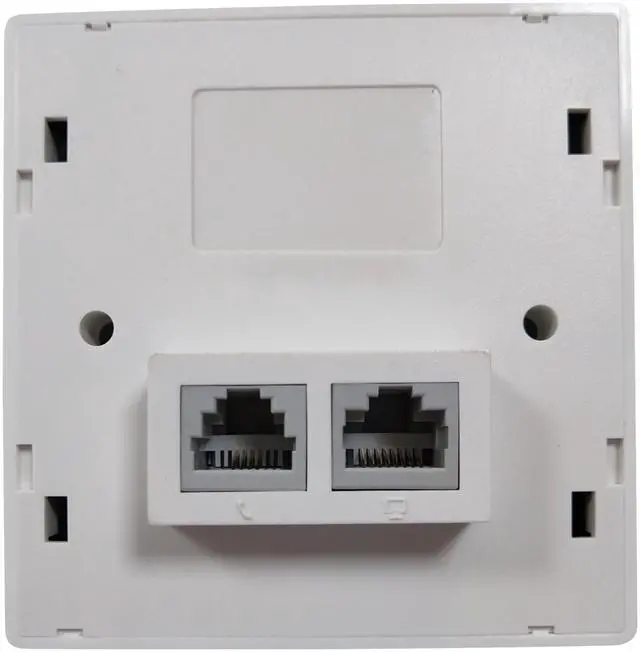

One 100M PoE uplink port is used on the back and one 100M LAN port on the front to ensure wireless high-speed transmission. Meantime, there is a pair of RJ11 transparent transmission ports to meet the traditional telephone access requirements.
Built-in high gain PIFA antenna
Built-in 4 high-gain PIFA antennas, not only support the characteristics of compact size and high efficiency, but more stable process optimization, uni-direction in signal coverage, and smoother data transmission.
Intelligent load balancing
In the case of high-density wireless users, combined with Silarius AC series products, through intelligent load balancing based on the number of users, traffic, and frequency bands, it improves bandwidth utilization and provides more extreme Internet experience.
5G Priority Algorithm
Support 5G priority algorithm, compatible with multiple devices and replace the 5G high-speed channel simultaneously, maximize the use of 5G transmission high bandwidth.
Support standard PoE and DC power supply
Compliant standard IEEE 802.3af PoE and local DC supply, simple network layout.
FAT/FIT Integration
AP supports the integration of FAT and FIT and can be flexibly switched at any time according to different networking requirement. Large scale AP will be managed by AC Controller of Silarius series.
Support English SSID
Support English SSID, you can specify an SSID containing up to 32 characters, to provide a personalized SSID for shopping malls or enterprises to improve recognition.
Multi-frequency and Multi-channel Seamless Roaming
Compatible with AC product of Silarius series portfolio network deployment, seamless roaming and self-adaptation can be achieved in full Wi-Fi coverage area.
Hardware Spec
Model
SIL86AP1G64
Spec
Dual-Band 86 Panel
Dimension
86*86*34mm
Ethernet Port
2*10/100Mbps+2*RJ11
PoE
IEEE802.3af
Antenna
Built-in high gain PIFA antenna
RST
Support
DC
Support 12V/1APower Supply
Working Temperature
and Humidity
-10?~45?, 10%~90%, Non-condensing
Storage Temperature
and Humidity
-40?~70?, 10%~90%, Non-condensing
Software Spec
Model
SIL86AP1G64
Spatial flow
4
2.4G Channel
1
5G Channel
1
2.4G Transmission Rate(Max)
300Mbps
5GTransmission Rate (Max)
867Mbps
Wi-Fi Access Number (Max)
64
Wi-Fi Concurrent Number
(Max)
32
Working Frequency
802.11ac/n/a: 5.725GHz-5.850GHz, 5.15~5.25GHz
802.11b/g/n: 2.4GHz-2.483GHz
Modulation
Technology
OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16QAM@24Mbps, 64QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, [email protected]/11Mbps
MIMO-OFDM: MCS 0-31
MIMO-OFDM(11ac): MCS 0-9
Modulation Way
11b:DSS:[email protected]/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps
11a/g: OFDM:64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
11n: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
11ac:MIMO-OFDM:BPSK,QPSK, 16QAM,64QAM,256QAM
Support Channel
Number
802.11a, 802.11n, 802.11ac(Compatible with 802.11a mode): 9 channels
802.11b, 802.11g, 802.11n(Compatible with 802.11b/g mode): 13 channels
Channel Adjustment
Support Auto, Manual Adjustment
Power Adjustment
Support
RF Time Switch
Support Turn on/off RF based on Specify Time Period
Access Limited
Support User Restrictions based on SSID
English SSID
Support
SSID Hidden
Support
Load Balancing
Support Intelligent Balance based on users, traffic, and Frequency bands
Bandwidth Limited
Support Speed Limit based on STA/SSID/AP
STA Related
Support STA Abnormal Offline Detection, STA Burn-in Testing, STA-based Statistics and Status Query
Link Integrity Detection
Support
Authentication Method
Support Pre-shared Key, 802.1x Authentication
Black and White List
Support Static Black and White List
User Isolation
Support Isolation between SSIDs, automatic VLAN grouping, user isolation under designated VLAN
Prevent Terminal
Stickiness
Perceive the STA connected to the AP, and Intelligently Guide the STA to Access the best AP
Prohibit Low rate
Terminal Access
Set a Threshold for the Speed of Access Terminals, prohibit weak Signal Terminals below a Certain Speed from Accessing, and Improve the Overall Network Speed
High-density Access
Scenario Optimization
Support Broadcast Probe Request Response Control to Optimize High-density Access Scenarios
ARP to Unicast
Convert ARP Broadcast Messages to Unicast, Reduce Broadcast packets and Increase transmission speed
FAT and FIT
Integration
Support the integration of FAT and FIT, support switch flexibly between the two working modes of FAT and FIT.
Channel Encryption
Support
Access Point VPN
Support the encrypted data transmission communication with Silarius AC. Accessing the corporate intranet data resources is transmitted through an encrypted tunnel.
Dual-band MIMO Technology
Compliant with IEEE 802.11ac protocol standard, the maximum transmission rate can reach 1.167Gbps, adopt 2.4G and 5G dual radio link design, support four independent spatial streams, increase the number of terminal access four times.
Fast Ethernet Uplink Interface
One 100M PoE uplink port is used on the back and one 100M LAN port on the front to ensure wireless high-speed transmission. Meantime, there is a pair of RJ11 transparent transmission ports to meet the traditional telephone access requirements.
Built-in high gain PIFA antenna
Built-in 4 high-gain PIFA antennas, not only support the characteristics of compact size and high efficiency, but more stable process optimization, uni-direction in signal coverage, and smoother data transmission.
Intelligent load balancing
In the case of high-density wireless users, combined with Silarius AC series products, through intelligent load balancing based on the number of users, traffic, and frequency bands, it improves bandwidth utilization and provides more extreme Internet experience.
5G Priority Algorithm
Support 5G priority algorithm, compatible with multiple devices and replace the 5G high-speed channel simultaneously, maximize the use of 5G transmission high bandwidth.
Support standard PoE and DC power supply
Compliant standard IEEE 802.3af PoE and local DC supply, simple network layout.
FAT/FIT Integration
AP supports the integration of FAT and FIT and can be flexibly switched at any time according to different networking requirement. Large scale AP will be managed by AC Controller of Silarius series.
Support English SSID
Support English SSID, you can specify an SSID containing up to 32 characters, to provide a personalized SSID for shopping malls or enterprises to improve recognition.
Multi-frequency and Multi-channel Seamless Roaming
Compatible with AC product of Silarius series portfolio network deployment, seamless roaming and self-adaptation can be achieved in full Wi-Fi coverage area.
Hardware Spec
Model
SIL86AP1G64
Spec
Dual-Band 86 Panel
Dimension
86*86*34mm
Ethernet Port
2*10/100Mbps+2*RJ11
PoE
IEEE802.3af
Antenna
Built-in high gain PIFA antenna
RST
Support
DC
Support 12V/1APower Supply
Working Temperature
and Humidity
-10?~45?, 10%~90%, Non-condensing
Storage Temperature
and Humidity
-40?~70?, 10%~90%, Non-condensing
Software Spec
Model
SIL86AP1G64
Spatial flow
4
2.4G Channel
1
5G Channel
1
2.4G Transmission Rate(Max)
300Mbps
5GTransmission Rate (Max)
867Mbps
Wi-Fi Access Number (Max)
64
Wi-Fi Concurrent Number
(Max)
32
Working Frequency
802.11ac/n/a: 5.725GHz-5.850GHz, 5.15~5.25GHz
802.11b/g/n: 2.4GHz-2.483GHz
Modulation
Technology
OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16QAM@24Mbps, 64QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, [email protected]/11Mbps
MIMO-OFDM: MCS 0-31
MIMO-OFDM(11ac): MCS 0-9
Modulation Way
11b:DSS:[email protected]/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps
11a/g: OFDM:64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
11n: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
11ac:MIMO-OFDM:BPSK,QPSK, 16QAM,64QAM,256QAM
Support Channel
Number
802.11a, 802.11n, 802.11ac(Compatible with 802.11a mode): 9 channels
802.11b, 802.11g, 802.11n(Compatible with 802.11b/g mode): 13 channels
Channel Adjustment
Support Auto, Manual Adjustment
Power Adjustment
Support
RF Time Switch
Support Turn on/off RF based on Specify Time Period
Access Limited
Support User Restrictions based on SSID
English SSID
Support
SSID Hidden
Support
Load Balancing
Support Intelligent Balance based on users, traffic, and Frequency bands
Bandwidth Limited
Support Speed Limit based on STA/SSID/AP
STA Related
Support STA Abnormal Offline Detection, STA Burn-in Testing, STA-based Statistics and Status Query
Link Integrity Detection
Support
Authentication Method
Support Pre-shared Key, 802.1x Authentication
Black and White List
Support Static Black and White List
User Isolation
Support Isolation between SSIDs, automatic VLAN grouping, user isolation under designated VLAN
Prevent Terminal
Stickiness
Perceive the STA connected to the AP, and Intelligently Guide the STA to Access the best AP
Prohibit Low rate
Terminal Access
Set a Threshold for the Speed of Access Terminals, prohibit weak Signal Terminals below a Certain Speed from Accessing, and Improve the Overall Network Speed
High-density Access
Scenario Optimization
Support Broadcast Probe Request Response Control to Optimize High-density Access Scenarios
ARP to Unicast
Convert ARP Broadcast Messages to Unicast, Reduce Broadcast packets and Increase transmission speed
FAT and FIT
Integration
Support the integration of FAT and FIT, support switch flexibly between the two working modes of FAT and FIT.
Channel Encryption
Support
Access Point VPN
Support the encrypted data transmission communication with Silarius AC. Accessing the corporate intranet data resources is transmitted through an encrypted tunnel.
