[Description]

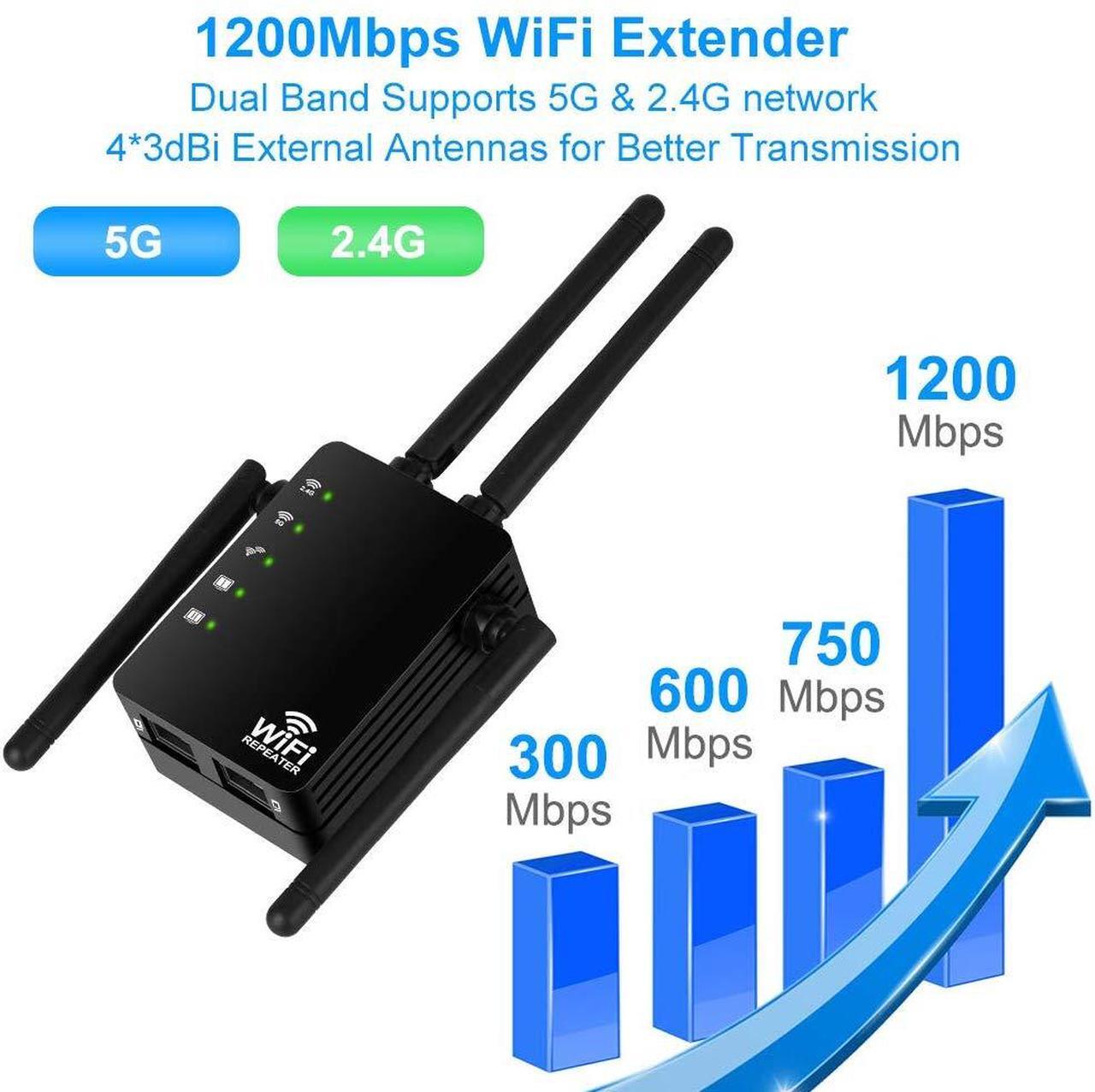

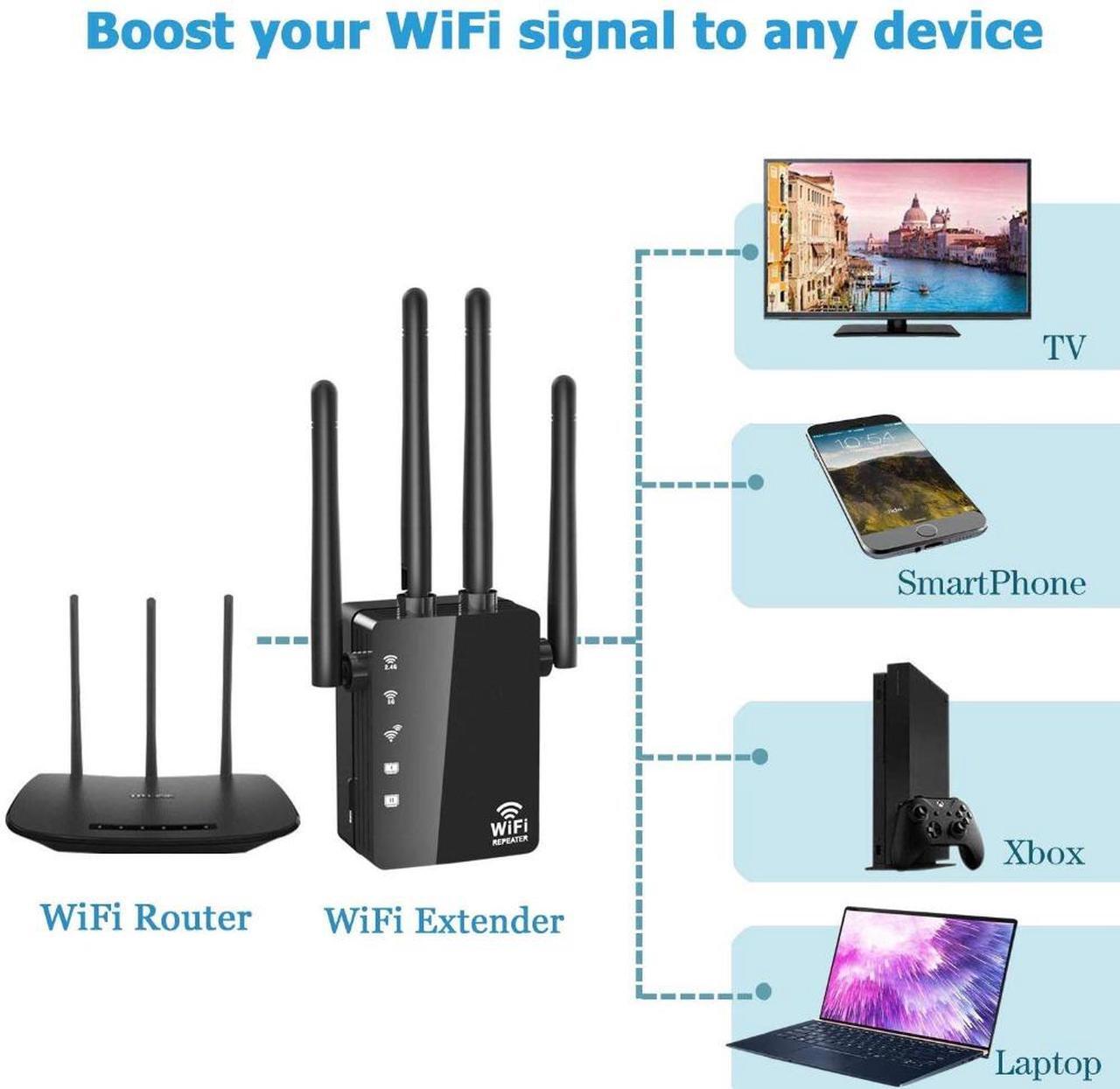

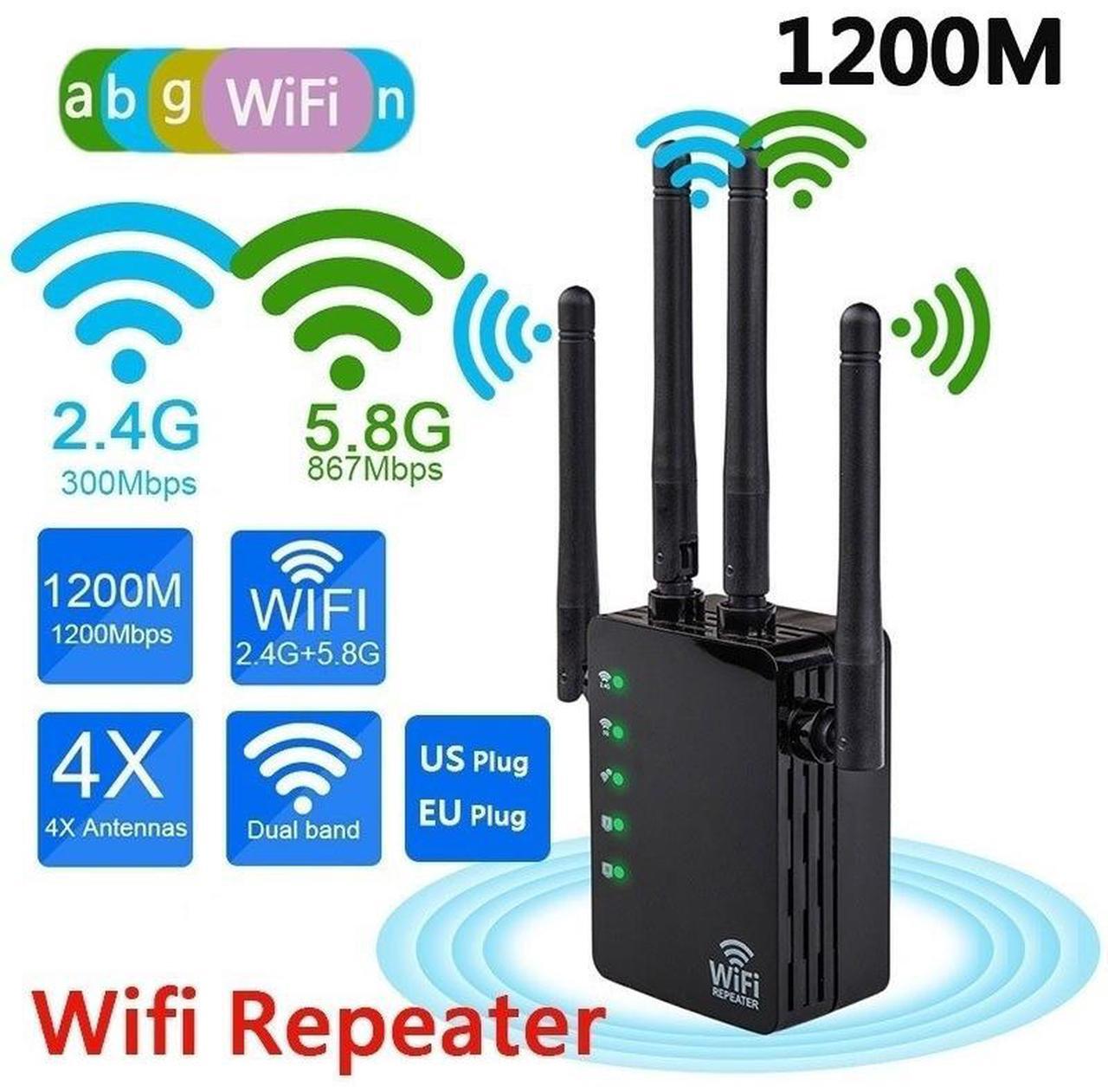

This dual band wifi Repeater is Mainly used for providing free WIFI service in big area such as factory , community , street,home or etc. For example, the normal enhancer can expend distance up to 150~300 meters away. If there are more repeaters or more bigger power repeater, the range will extended further.The Repeater simultaneously supports 2.4G and 5G wireless network connection, and it can supports 2.4G up to 300M or 5G transmission speeds of up to 876M.. Kills Wi-Fi dead zone with strong Wi-Fi expansion at combined speed of up to 1.2Gbps
[Specification]
Standards:EEE 802.11ac, IEEE 802.11a,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Wireless Signal Rates With Automatic Fallback
5GHz
11ac: Up to 880Mbps(dynamic) ,11a: Up to 54Mbps(dynamic)
2.4GHz
11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Frequency Range : 2.4 GHz & 5.8GHz
Wireless Transmit Power: <20dBm(EIRP)
Modulation Type:DBPSK,DQPSK,CCK, OFDM
Receiver Sensitivity:
1200M:-68dBm@10% PER 300M:-68dBm@10% PER 150M: -68dBm@10% PER 108M: -68dBm@10% PER
Wireless Security: 64/128 bit WEPWPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Interface : 2 10/100M LAN Port Antenna
Type : 4* 3dBi Antenna
Power supply Input :AC100~240V Output :DC 5V/1A
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Relative Humidity: 10% ~ 90%, non-condensation
Storage Humidity: 5%~95% non-condensing
[Package]
1x Dual Band wifi Extender
1xUser Manual
