Lysora CPE5 5GHz Outdoor WiFi Bridge Kit, 2-Pack Point-to-Point, 867Mbps, 16dBi, 3 Mile Range, Gigabit, IP55, Adapters & PoE Injectors Included

Overview

The Lysora CPE5 is a 5 GHz outdoor wireless bridge built for reliable, long-distance point-to-point and point-to-multipoint links. With a built-in 16 dBi high-gain directional antenna and up to 867 Mbps of wireless throughput, it delivers stable connectivity across distances of up to 5 km (3.11 miles) ideal for CCTV backhaul, building-to-building links, and remote-site networking where running cable isn't practical. Its IP55 weatherproof housing and wide 30°C to +55°C operating range make it dependable in demanding outdoor environments, while support for both web-based and Lysora Cloud management keeps deployment and monitoring simple. NDAA compliant and certified to FCC, IC, and cTUVus standards, the CPE5 is a trusted choice for government, commercial, and installer projects with strict sourcing requirements.

Key Features

1. 5 GHz High-Speed Bridge Up to 867 Mbps wireless throughput on the 5 GHz band (2×2 MIMO, 802.11ac) for fast, stable data links.
2. Built-In 16 dBi Directional Antenna High-gain antenna delivers focused, long-range coverage for reliable connections up to 5 km (3.11 miles).
3. Point-to-Multipoint Ready TDMA technology supports PTMP deployments with up to 5 CPEs from a single base station.
4. Three Gigabit Ethernet Ports 3× 10/100/1000BASE-T ports for flexible wired connectivity and daisy-chaining.
5. IP55 Weatherproof Design Rugged, sealed housing rated for outdoor use in rain, dust, and extreme temperatures (30°C to +55°C).
6. Flexible Power Options Includes both a 24V DC power adapter and a 24V passive PoE injector; also supports PoE/PoE+.
7. Easy Management Configure and monitor via web interface or Lysora Cloud, with built-in antenna alignment, spectrum scan, VLAN, and SNMP support.
8. NDAA Compliant Meets federal sourcing requirements for government, education, and public-sector installations.

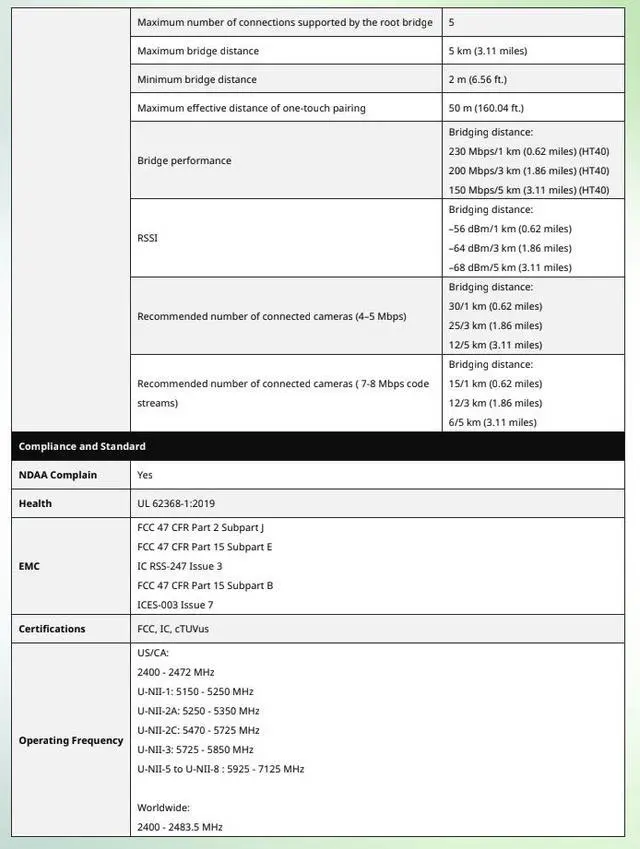

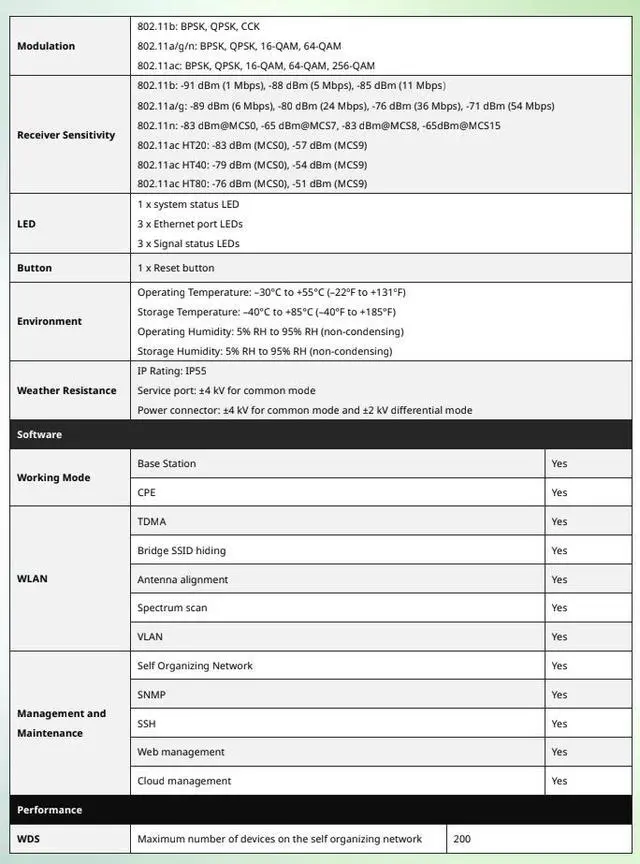

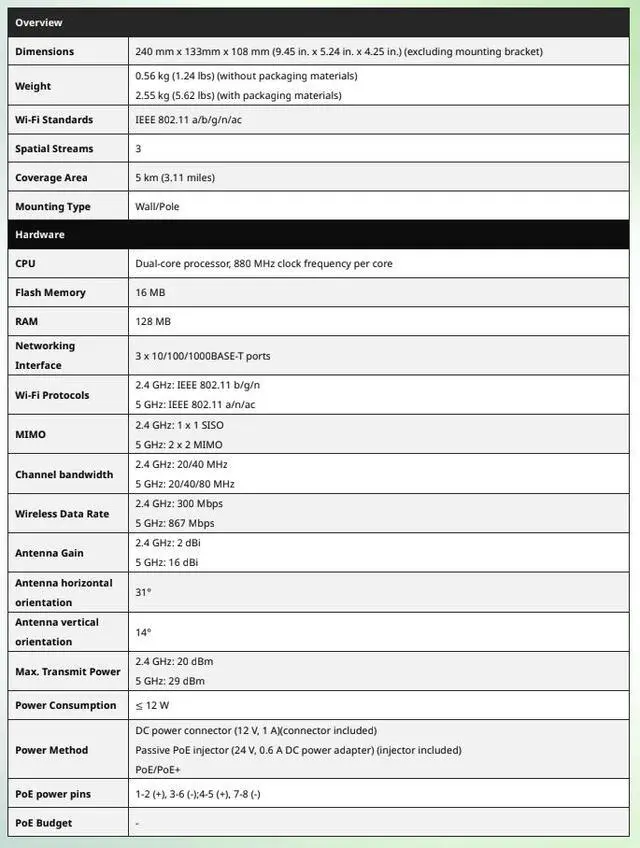

Specifications

1. Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac
2. Wireless Data Rate: 5 GHz 867 Mbps / 2.4 GHz 300 Mbps
3. Antenna Gain: 16 dBi (5 GHz), 2 dBi (2.4 GHz)
4. Max Transmit Power: 29 dBm (5 GHz)
5. Networking: 3× 10/100/1000BASE-T Gigabit ports
6. Processor: Dual-core, 880 MHz per core | 128 MB RAM | 16 MB Flash
7. Power: 24V DC adapter (included) / 24V passive PoE injector (included); 12W consumption
8. Weather Rating: IP55 | Surge protection: ±4 kV common mode
9. Operating Temp: 30°C to +55°C (22°F to +131°F)
10. Dimensions: 240 × 133 × 108 mm (9.45 × 5.24 × 4.25 in.)
11. Certifications: FCC, IC, cTUVus | NDAA Compliant
12. Management: Web + Lysora Cloud
13. In the Box: CPE5 unit, 2× DC power adapter, 2× 24V PoE injector, mounting brackets, screws, user manual, warranty card
