Lysora L7-T WiFi 7 Outdoor Access Point, BE5040 Dual-Band Wireless AP, IP65 Weatherproof, 2.5G PoE+, MLO, Long Range

Overview

The Lysora L7-T is a Wi-Fi 7 (802.11be) dual-band outdoor access point built to deliver high-performance wireless beyond the walls courtyards, patios, parking lots, warehouses, campuses, marinas, and construction sites. It brings the same flagship radio as Lysora's indoor L7: 4323 Mbps on 5 GHz plus 688 Mbps on 2.4 GHz across 5 spatial streams, with Multi-Link Operation (MLO), 4K-QAM (4096-QAM), and a 2.5 Gigabit uplink port. Where it differs is durability and reach an IP65-rated weatherproof enclosure, a wide 30°C to +65°C operating range, ±4 kV surge protection, and higher-gain antennas that extend usable 5 GHz coverage to a 150 m recommended radius (up to 300 m in ideal open conditions). It supports up to 511 clients, runs in AP or router mode, supports wireless meshing, and is managed centrally through the Lysora App, web interface, or Lysora Cloud with AI optimization across up to 300 APs. NDAA compliant and certified to FCC, IC, and cTUVus standards.

Key Features

1. Outdoor-Rated Wi-Fi 7 IP65 weatherproof enclosure with ±4 kV surge protection, rated from 30°C to +65°C (22°F to +149°F) for year-round outdoor operation.
2. BE5000-Class Performance 4323 Mbps (5 GHz) + 688 Mbps (2.4 GHz), ~5 Gbps combined across 5 spatial streams.
3. Multi-Link Operation (MLO) Aggregates bands simultaneously for higher throughput, lower latency, and more reliable connections.
4. 4K-QAM (4096-QAM) Denser modulation delivers faster real-world speeds.
5. Long-Range Coverage High-gain antennas (6.28 dBi @ 5 GHz) with RF beamforming reach a recommended 150 m / 492 ft radius on 5 GHz, up to 300 m in open conditions.
6. 2.5 Gigabit Uplink Single 2.5GbE port removes the wired bottleneck of older 1GbE outdoor APs.
7. High Client Capacity Up to 511 clients, with 3×3 MU-MIMO on 5 GHz and 2×2 on 2.4 GHz.

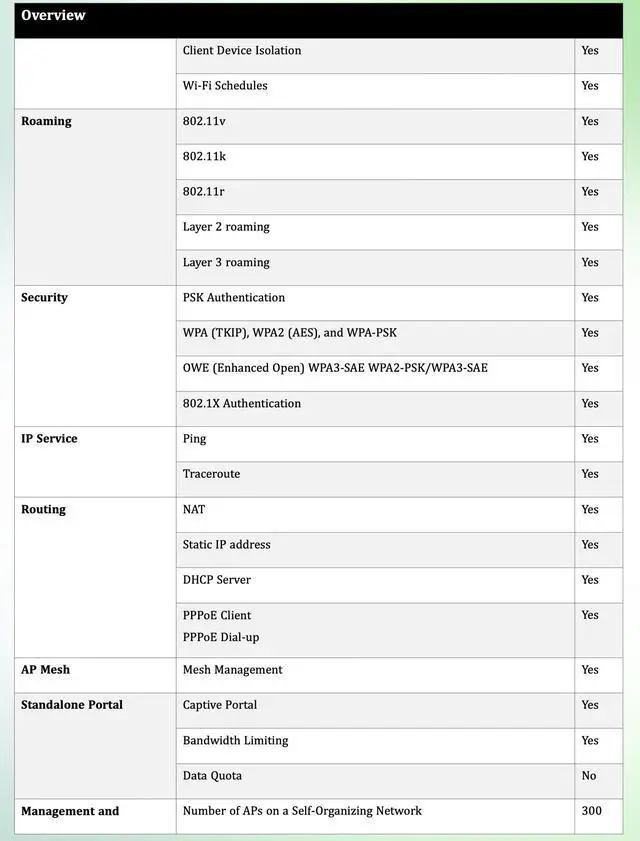

8. Seamless Roaming 802.11k/v/r plus Layer 2/Layer 3 roaming for smooth indoor-to-outdoor handoff.
9. Wall or Pole Mount Both mounting kits included for flexible installation.
10. AI-Optimized Cloud Management Web, Lysora App, or Lysora Cloud with AI optimization and SNMP; scales to 300 APs.
11. Enterprise Security WPA3-SAE, WPA2/WPA, OWE Enhanced Open, 802.1X, and captive portal.
12. NDAA Compliant Meets federal sourcing requirements for government and public-sector projects.

Specifications

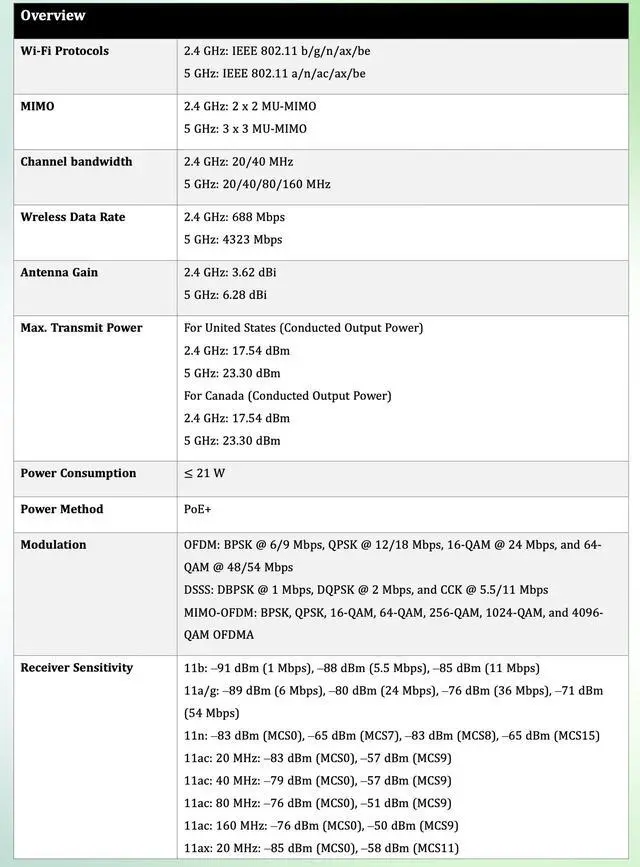

1. Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax/be (Wi-Fi 7)
2. Throughput: 5 GHz 4323 Mbps / 2.4 GHz 688 Mbps (~5 Gbps combined)
3. Spatial Streams: 5 | MIMO: 3×3 MU-MIMO (5 GHz), 2×2 MU-MIMO (2.4 GHz)
4. Channel Bandwidth: 20/40/80/160 MHz (5 GHz), 20/40 MHz (2.4 GHz)
5. Key Wi-Fi 7 Features: MLO, 4K-QAM (4096-QAM), RF Beamforming, OFDMA
6. Coverage Radius: 5 GHz 150 m recommended / 300 m max | 2.4 GHz 50 m recommended / 100 m max
7. Max Clients: 511 | Recommended: ~110 concurrent (160 MHz, 802.11ax)
8. Antenna Gain: 6.28 dBi (5 GHz), 3.62 dBi (2.4 GHz)
9. Max Transmit Power: 26 dBm (both bands)
10. Networking: 1× 10/100/1000/2500BASE-T (2.5GbE) port
11. Power: 802.3af/at PoE+ PoE injector or PoE switch required (not included)
12. Power Consumption: 21W (see note)
13. Modes: AP Mode / Router Mode | Wireless Mesh supported
14. Security: WPA3-SAE, WPA2/WPA, OWE, 802.1X, captive portal
15. Management: Lysora App / Web / Lysora Cloud with AI Optimization | SNMP
16. Mounting: Wall or Pole (mounts included)

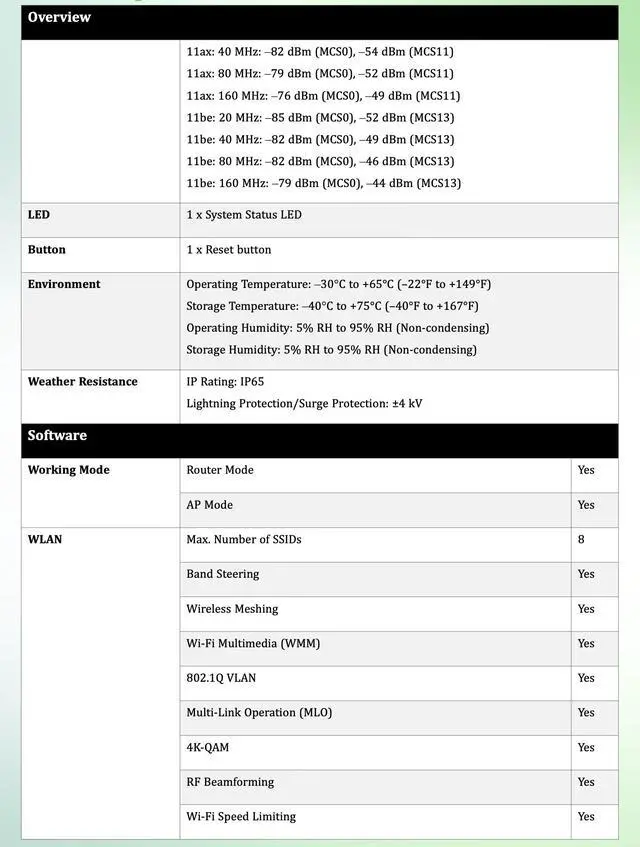

17. Weather Rating: IP65 | Surge/Lightning Protection: ±4 kV
18. Operating Temp: 30°C to +65°C (22°F to +149°F)

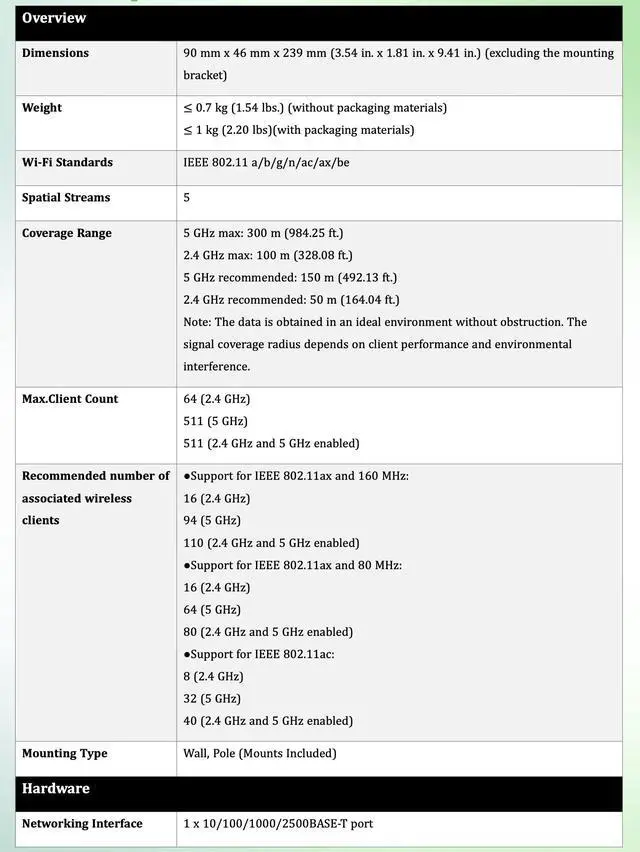

19. Dimensions: 90 × 46 × 239 mm (3.54 × 1.81 × 9.41 in.) | 0.7 kg (1.54 lbs)

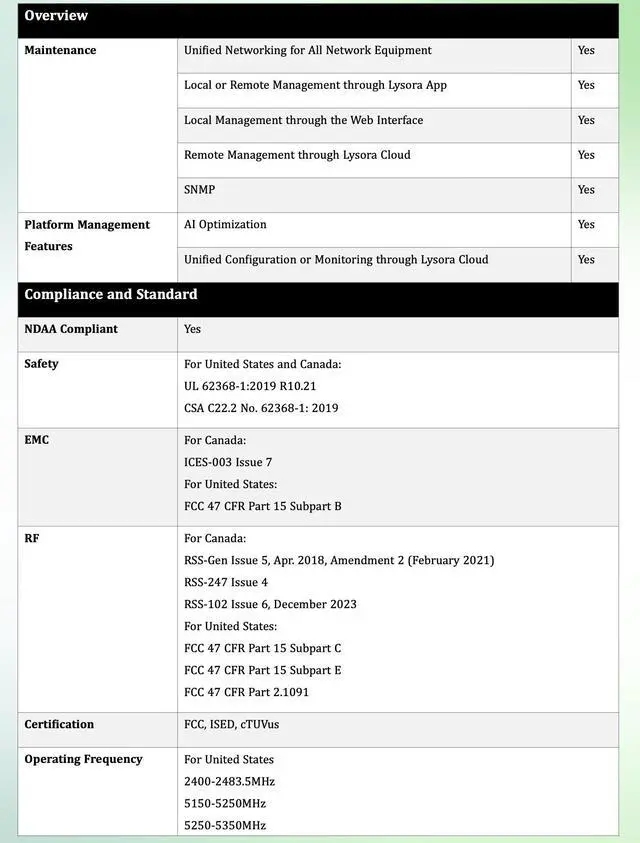

20. Certifications: FCC, IC, cTUVus, UL 62368-1 | NDAA Compliant
