Lysora L7-W WiFi 7 Wall Plate Access Point, BE3600 Dual-Band In-Wall AP, 4 Gigabit LAN Ports, 2.5G PoE+, Hotel Dorm Office

Overview

The Lysora L7-W is a Wi-Fi 7 (802.11be) dual-band wall-plate access point designed for per-room coverage in hotels, dormitories, apartments, hospitals, and offices. Instead of mounting on the ceiling, it installs flush into a standard wall box replacing an existing data jack with a full BE3600 access point plus a 4-port Gigabit switch. It delivers 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz across 4 spatial streams, with Multi-Link Operation (MLO), 4K-QAM (4096-QAM), and a 2.5 Gigabit uplink. The four Gigabit LAN ports let guests or staff hard-wire TVs, phones, and laptops right at the wall, and one port supplies PoE output to power an IP phone or camera without a second drop. Powered by a single PoE+ cable and managed centrally through the Lysora App, web, or Lysora Cloud with AI optimization across up to 300 APs, it makes high-density room-by-room deployments clean and fast. NDAA compliant and certified to FCC, IC, and cTUVus standards.

Key Features

1. Wall-Plate Wi-Fi 7 BE3600 dual-band performance in a slim, flush-mount design that replaces a standard wall data jack.
2. Per-Room Coverage Roughly 592 sq ft (55 m²) of dedicated coverage per unit the proven approach for hotels, dorms, and MDUs where thick walls defeat hallway APs.
3. Multi-Link Operation (MLO) Aggregates bands simultaneously for higher throughput, lower latency, and more reliable connections.
4. 4K-QAM (4096-QAM) Denser modulation delivers faster real-world speeds.
5. Built-In 4-Port Gigabit Switch Four 10/100/1000 LAN ports let you hard-wire TVs, VoIP phones, and workstations right at the wall.
6. PoE Passthrough One LAN port provides 802.3af PoE output to power an IP phone, camera, or small device no extra cable run required.
7. 2.5 Gigabit Uplink Single 2.5GbE WAN port removes the wired bottleneck from the room back to the closet.
8. Single-Cable Install 802.3af/at PoE In means one Ethernet run handles both data and power.
9. Seamless Roaming 802.11k/v/r plus Layer 2/Layer 3 roaming for smooth movement between rooms and floors.
10. Guest-Ready Built-in captive portal, bandwidth limiting, client isolation, and up to 8 SSIDs per unit.
11. AI-Optimized Cloud Management Web, Lysora App, or Lysora Cloud with AI optimization and SNMP; scales to 300 APs.
12. NDAA Compliant Meets federal sourcing requirements for government and public-sector projects.

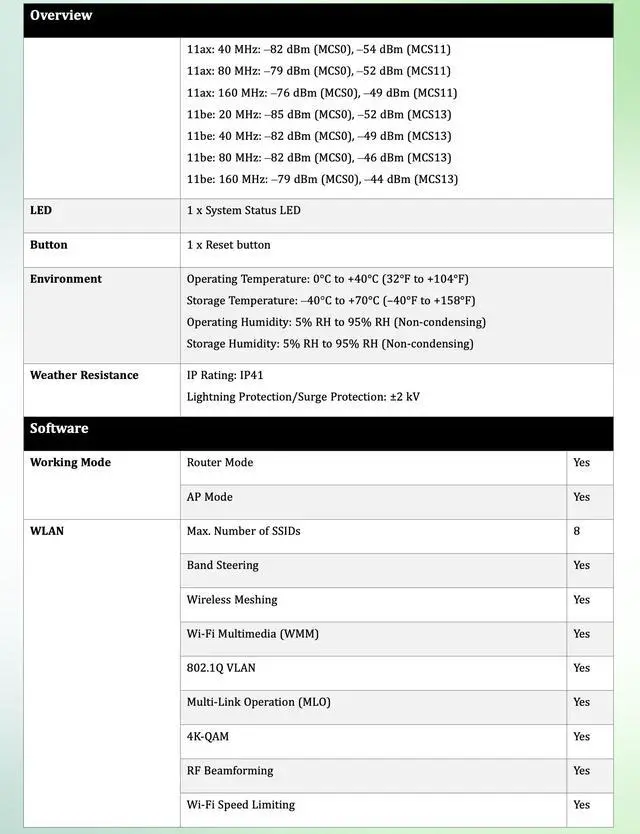

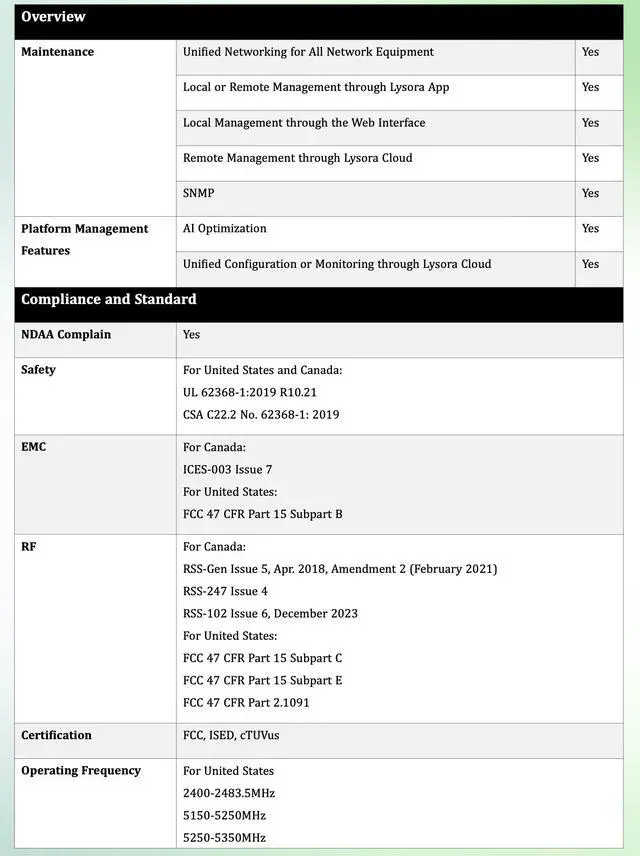

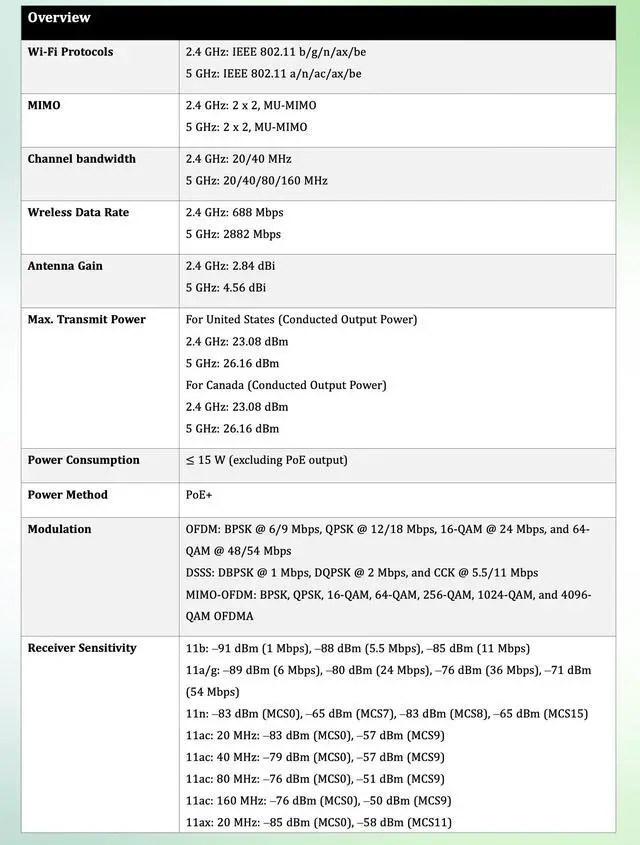

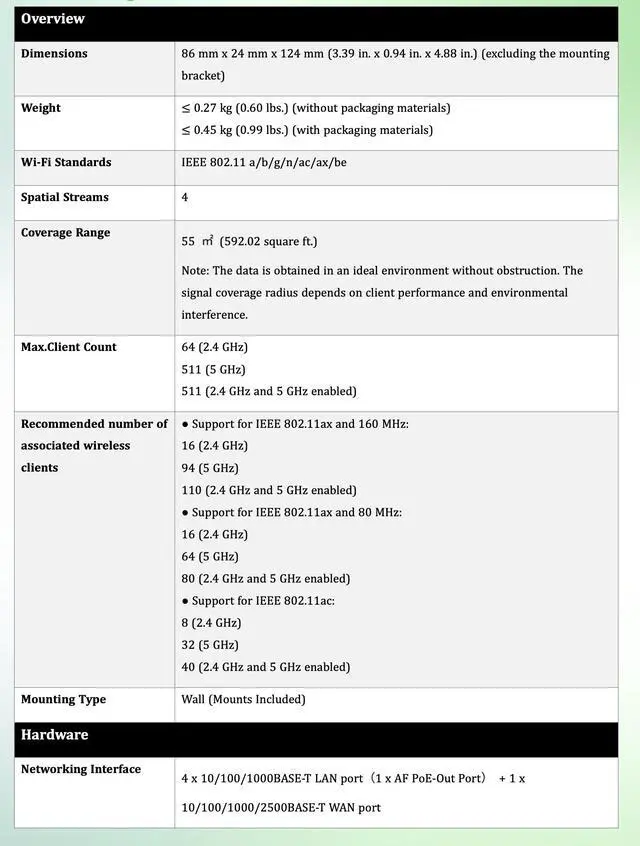

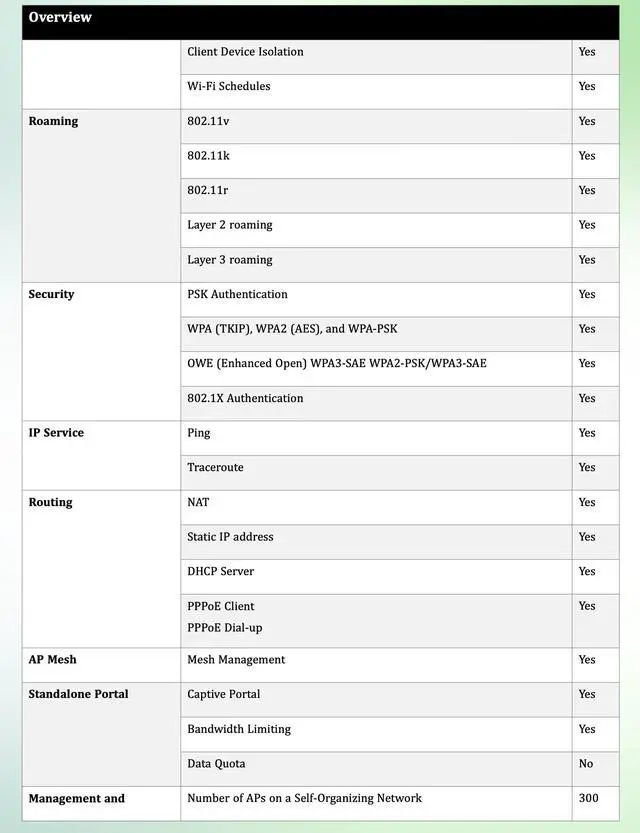

Specifications

1. Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax/be (Wi-Fi 7)
2. Throughput: 5 GHz 2882 Mbps / 2.4 GHz 688 Mbps (BE3600, ~3.6 Gbps combined)
3. Spatial Streams: 4 | MIMO: 2×2 MU-MIMO (both bands)
4. Channel Bandwidth: 20/40/80/160 MHz (5 GHz), 20/40 MHz (2.4 GHz)
5. Key Wi-Fi 7 Features: MLO, 4K-QAM (4096-QAM), RF Beamforming, OFDMA
6. Coverage Area: ~55 m² (592 sq ft, ideal conditions)
7. Max Clients: 511 | Recommended: ~110 concurrent (160 MHz, 802.11ax) | Max SSIDs: 8
8. Networking: 1× 2.5GbE WAN uplink + 4× 10/100/1000 LAN (1 port with 802.3af PoE Out)
9. Antenna Gain: 4.56 dBi (5 GHz), 2.84 dBi (2.4 GHz)
10. Max Transmit Power: 21.7 dBm (5 GHz), 20 dBm (2.4 GHz)
11. Power: 802.3af/at PoE In PoE injector or PoE switch required (not included)
12. Power Consumption: 15W (excluding PoE output)
13. Modes: AP Mode / Router Mode | Wireless Mesh supported
14. Security: WPA3-SAE, WPA2/WPA, OWE, 802.1X, captive portal
15. Management: Lysora App / Web / Lysora Cloud with AI Optimization | SNMP
16. Mounting: Wall (mounts included)
17. Environment: Indoor use only IP41 | Operating 0°C to 40°C (32°F to 104°F) | ±2 kV surge
18. Dimensions: 86 × 24 × 124 mm (3.39 × 0.94 × 4.88 in.) | 0.27 kg (0.60 lbs)
19. Certifications: FCC, IC, cTUVus, UL 62368-1 | NDAA Compliant
