Lysora CPE3-P 5GHz Outdoor Wireless Bridge with PoE Out, 13dBi Antenna, 867Mbps, 1.86 Mile Range, 3x Fast Ethernet Ports, IP55, Adapter and Injector Included, NDAA Compliant

Overview

The Lysora CPE3-P is a 5 GHz outdoor wireless bridge with PoE output designed for remote camera sites where there's no cable and no power convenience. Its 13 dBi high-gain directional antenna delivers stable links up to 3 km (1.86 miles) at up to 867 Mbps, and because the unit can pass PoE power out to a connected device, a single Ethernet run from your building can bridge the wireless link and power an IP camera at the far end. It supports point-to-multipoint deployment via TDMA with up to 5 CPE clients, and operates in either CPE or Base Station mode. The IP55 weatherproof enclosure and 30°C to +55°C operating range handle year-round outdoor conditions, while built-in antenna alignment, spectrum scan, and three signal-strength LEDs make installation fast. Managed through the web interface, SSH, or Lysora Cloud. Ships with both a 24V DC adapter and a 24V passive PoE injector. NDAA compliant and certified to FCC, IC, and cTUVus standards.

Key Features

1. PoE Power Output Supplies up to 15.4W of PoE to a connected device, letting one bridge both link and power a remote IP camera.
2. 13 dBi Directional Antenna High-gain 30° beam for stable long-distance point-to-point links.
3. Up to 3 km (1.86 mi) Range Connects remote buildings, gates, parking areas, and camera sites without trenching cable.
4. 867 Mbps on 5 GHz 2×2 MIMO 802.11ac with 80 MHz channels and 29 dBm max transmit power.
5. Point-to-Multipoint Ready TDMA supports up to 5 CPE clients; operates in CPE or Base Station mode.

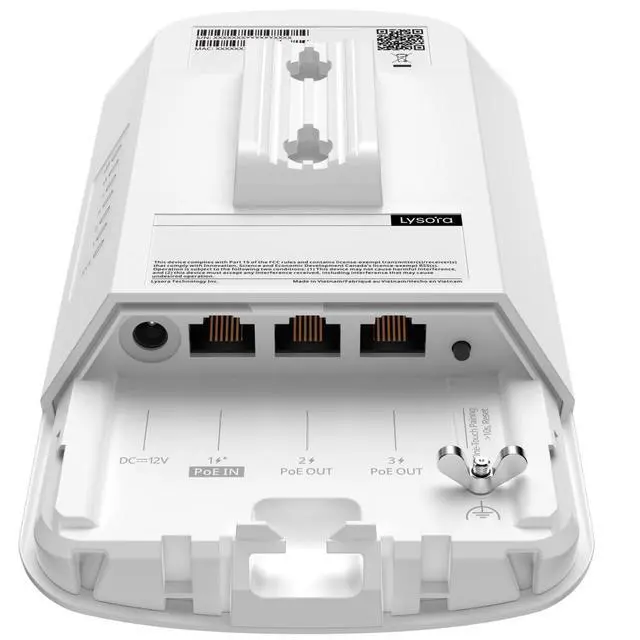

6. Three Ethernet Ports 3× 10/100 Mbps ports for flexible connectivity at the remote site.
7. IP55 Weatherproof Sealed outdoor housing rated 30°C to +55°C (22°F to +131°F) with ±4 kV surge protection.
8. Power Included Ships with a 24V DC adapter and a 24V passive PoE injector; also supports 12V DC and PoE/PoE+.
9. Fast Install Built-in antenna alignment tool, spectrum scan, and 3 signal-strength LEDs.
10. Flexible Management Web interface, SSH, and Lysora Cloud with self-organizing network support.
11. NDAA Compliant Meets federal sourcing requirements for government and public-sector projects.

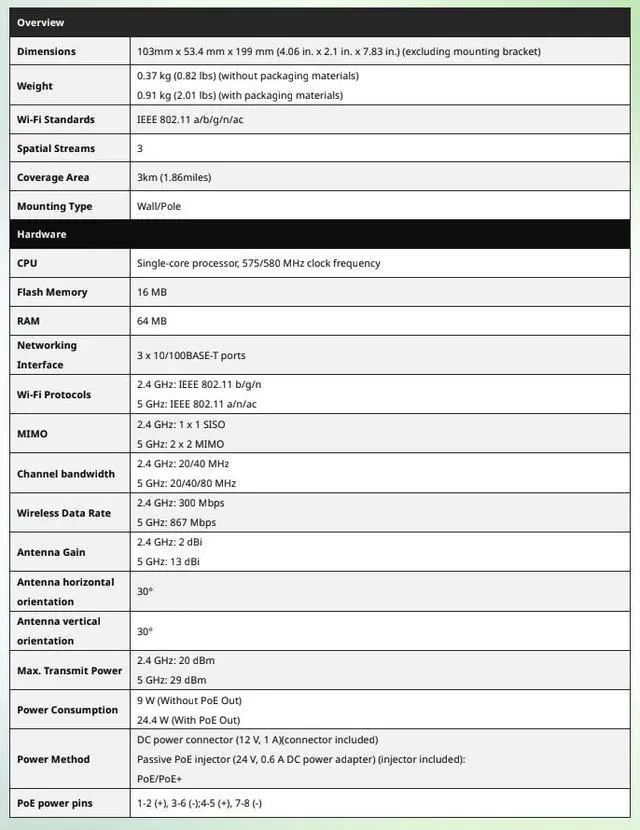

Specifications

1. Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac
2. Wireless Data Rate: 5 GHz 867 Mbps / 2.4 GHz 300 Mbps
3. MIMO: 2×2 MIMO (5 GHz), 1×1 SISO (2.4 GHz) | 3 spatial streams
4. Antenna: 13 dBi (5 GHz), 2 dBi (2.4 GHz) | 30° horizontal, 30° vertical
5. Max Transmit Power: 29 dBm (5 GHz), 20 dBm (2.4 GHz)
6. Channel Bandwidth: 20/40/80 MHz (5 GHz)
7. Range: up to 3 km (1.86 miles)
8. Networking: 3× 10/100BASE-T ports (Fast Ethernet not Gigabit)
9. Processor: Single-core 575/580 MHz | 64 MB RAM | 16 MB Flash
10. Working Modes: CPE / BaseStation

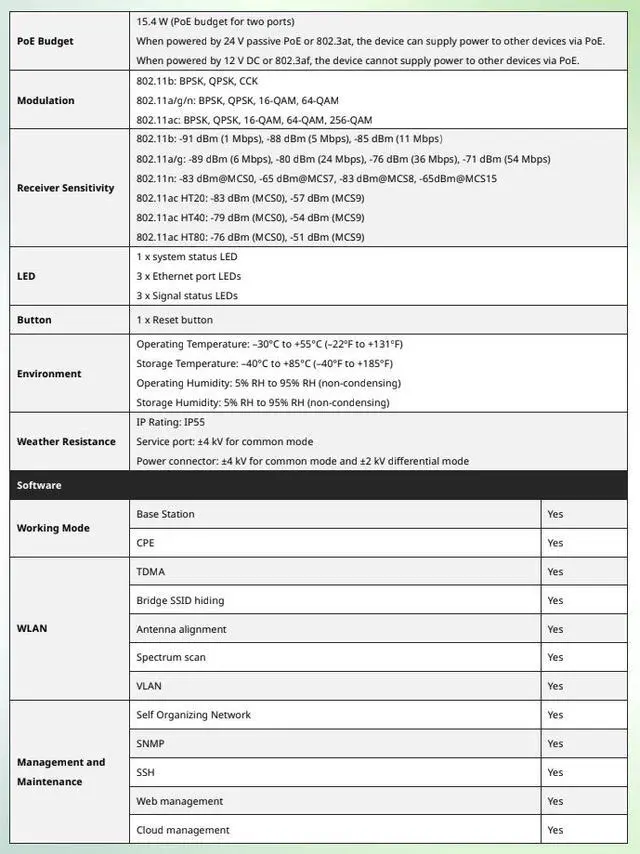

11. PoE Out: 15.4W budget across two ports available only when the unit is powered by 24V passive PoE or 802.3at; not available on 12V DC or 802.3af
12. Power In: 24V/1.5A DC adapter (included) + 24V passive PoE injector (included); also 12V/1A DC, PoE/PoE+
13. Power Consumption: 9W (without PoE out) / 24.4W (with PoE out)
14. Weather Rating: IP55 | Surge: ±4 kV common mode
15. Operating Temp: 30°C to +55°C (22°F to +131°F)
16. Mounting: Wall or Pole
17. Dimensions: 103 × 53.4 × 199 mm (4.06 × 2.10 × 7.83 in.), excluding mounting bracket
18. Weight: 0.37 kg (0.82 lbs)
19. Management: Web / SSH / Lysora Cloud | Self-Organizing Network (no SNMP)

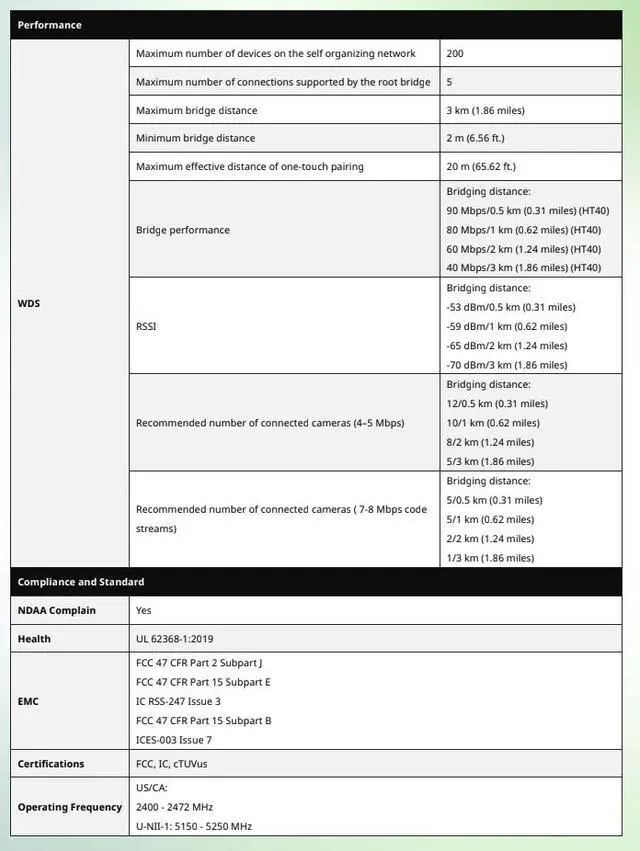

20. Certifications: FCC, IC, cTUVus, UL 62368-1 | NDAA Compliant

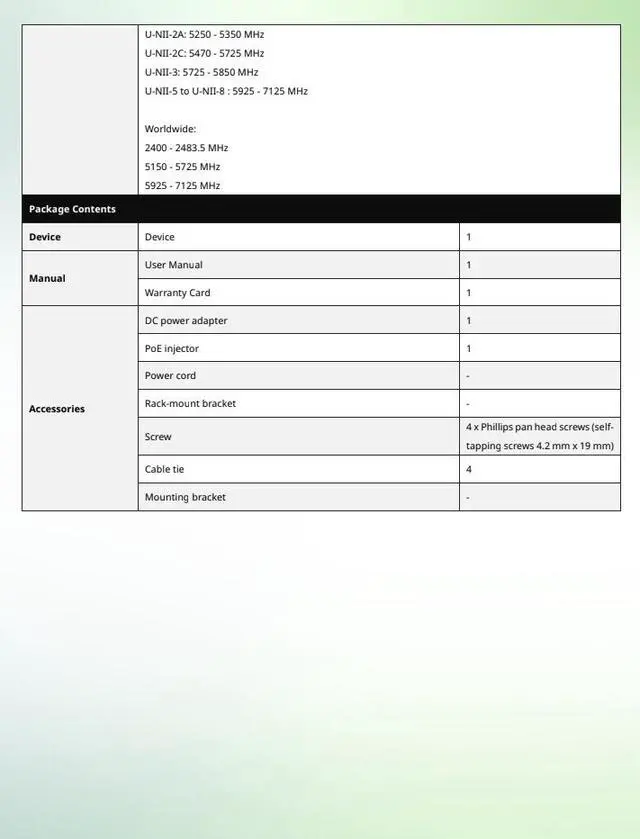

21. In the Box: CPE3-P unit, 24V DC adapter, 24V passive PoE injector, 4× screws, 4× cable ties, user manual, warranty card
