Lysora L7Pro WiFi 7 Tri-Band Access Point, BE14000 6GHz, 8 Spatial Streams, 10G SFP+ and 2.5GbE Ports, 600 Clients, MLO 4K-QAM, Cloud Managed, NDAA Compliant

Overview

The Lysora L7Pro is a Wi-Fi 7 (802.11be) tri-band ceiling-mount access point built for the most demanding high-density environments large offices, lecture halls, conference centers, and stadium-grade deployments. Adding a full 6 GHz radio to the 2.4 and 5 GHz bands, it reaches BE14000-class throughput: 8646 Mbps on 6 GHz, 4323 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz across 8 spatial streams, with 320 MHz channel support on 6 GHz. That extra clean spectrum is the point the 6 GHz band is uncongested and unavailable to older devices, so it delivers consistently high performance where 2.4 and 5 GHz are saturated. It supports up to 600 concurrent clients across all three bands, with Multi-Link Operation (MLO), 4K-QAM, RF beamforming, and full 802.11k/v/r plus Layer 2/Layer 3 roaming. Uniquely in this lineup, it offers both a 2.5 Gigabit port and a 10 Gigabit SFP+ port, so the uplink never becomes the bottleneck. Runs in AP or router mode, supports wireless meshing, and is managed through the Lysora App, web, or Lysora Cloud with AI optimization across up to 300 APs. NDAA compliant and certified to FCC, IC, and cTUVus standards.

Key Features

1. Tri-Band Wi-Fi 7 (BE14000) 8646 Mbps (6 GHz) + 4323 Mbps (5 GHz) + 688 Mbps (2.4 GHz) across 8 spatial streams.
2. Full 6 GHz Radio Access to clean, uncongested spectrum with 320 MHz channels the single biggest real-world performance gain over dual-band Wi-Fi 7.
3. 600 Client Capacity 256 clients each on 5 GHz and 6 GHz, 128 on 2.4 GHz, for genuinely high-density venues.
4. 10 Gigabit SFP+ Uplink Plus a 2.5GbE copper port, so wired capacity matches the radio's throughput.
5. Multi-Link Operation (MLO) Aggregates bands simultaneously for higher throughput, lower latency, and more reliable connections.
6. 4K-QAM (4096-QAM) Denser modulation delivers faster real-world speeds.
7. 3×3 MU-MIMO on 5 and 6 GHz With RF beamforming for strong, even coverage across ~1,560 sq ft.
8. Seamless Roaming 802.11k/v/r plus Layer 2/Layer 3 roaming for smooth mobility across large floorplans.
9. AI-Optimized Cloud Management Web, Lysora App, or Lysora Cloud with AI optimization and SNMP; scales to 300 APs.
10. Enterprise Security WPA3-SAE, WPA2/WPA, OWE Enhanced Open, 802.1X, and captive portal with bandwidth limiting.
11. NDAA Compliant Meets federal sourcing requirements for government and public-sector projects.

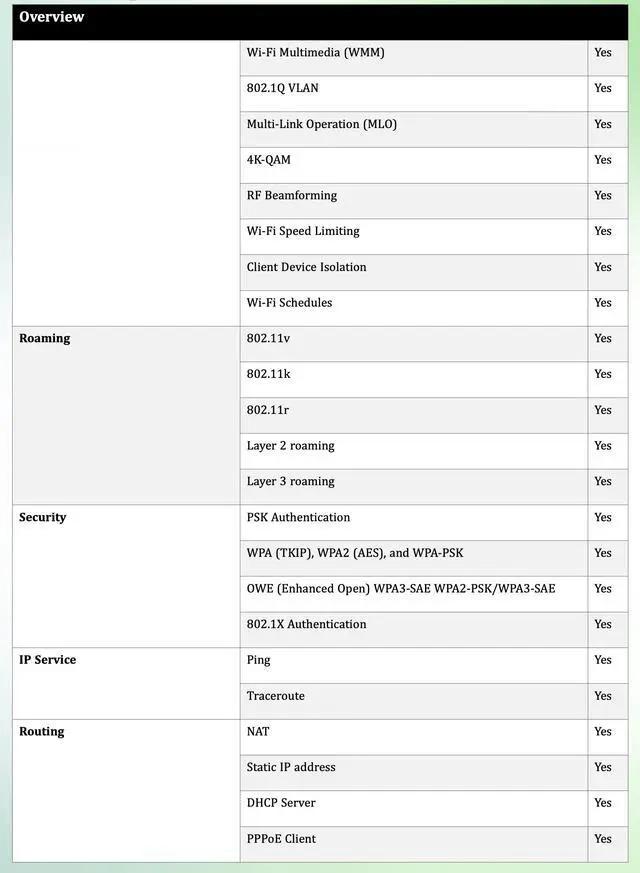

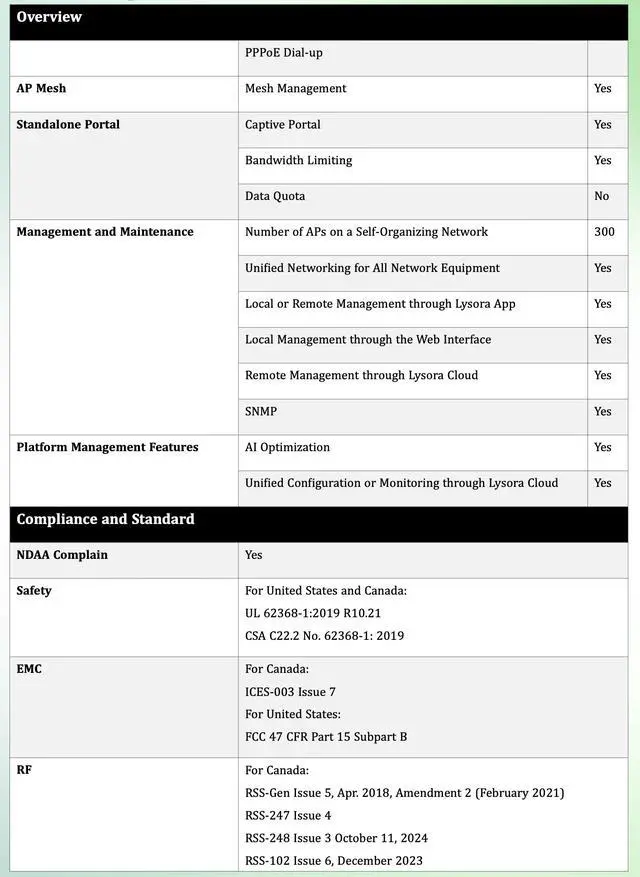

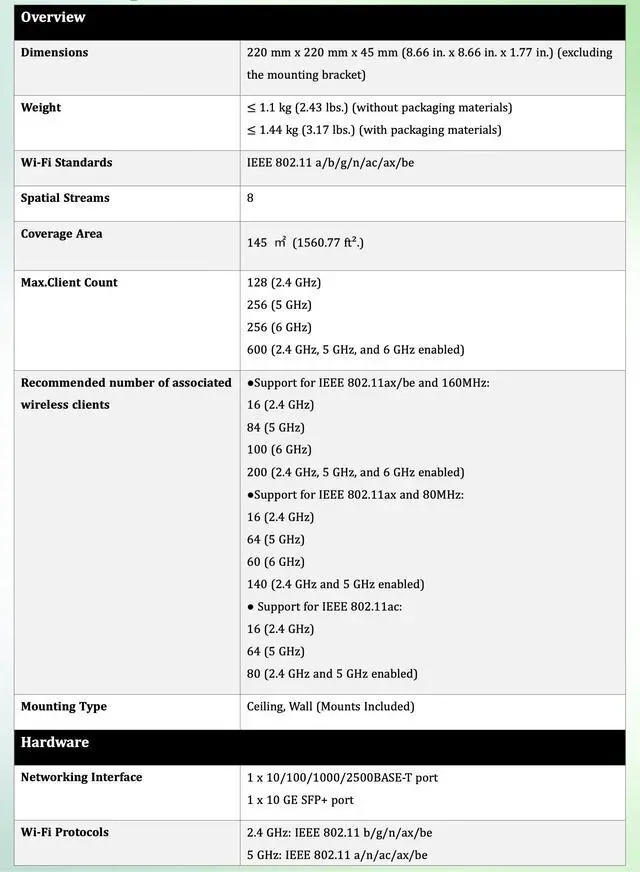

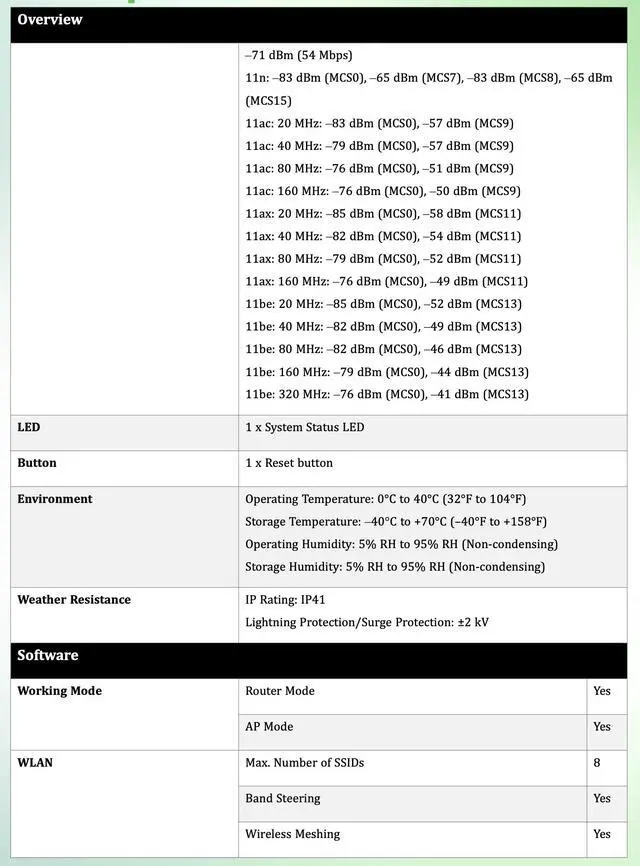

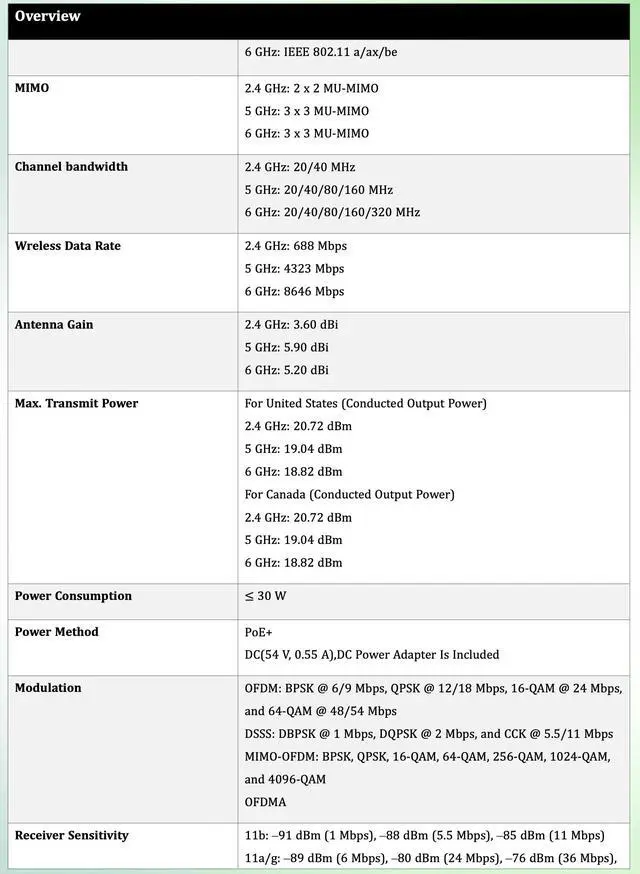

Specifications

1. Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax/be (Wi-Fi 7), tri-band
2. Throughput: 6 GHz 8646 Mbps / 5 GHz 4323 Mbps / 2.4 GHz 688 Mbps (BE14000)
3. Spatial Streams: 8 | MIMO: 3×3 MU-MIMO (6 GHz), 3×3 (5 GHz), 2×2 (2.4 GHz)
4. Channel Bandwidth: up to 320 MHz (6 GHz), 160 MHz (5 GHz), 40 MHz (2.4 GHz)
5. Key Wi-Fi 7 Features: MLO, 4K-QAM (4096-QAM), RF Beamforming, OFDMA, band steering
6. Max Clients: 600 total (128 / 256 / 256) | Recommended: ~200 concurrent (tri-band, 160 MHz)
7. Coverage Area: ~145 m² (1,560 sq ft, ideal conditions)
8. Networking: 1× 2.5GbE (10/100/1000/2500BASE-T) + 1× 10GE SFP+
9. Antenna Gain: 5.90 dBi (5 GHz), 5.20 dBi (6 GHz), 3.60 dBi (2.4 GHz)
10. Max Transmit Power: 25.7 dBm (5 GHz), 25 dBm (2.4 GHz), 22.7 dBm (6 GHz)
11. Power: 802.3at PoE+ or 54V/0.55A DC see note on power
12. Power Consumption: 30W
13. Modes: AP Mode / Router Mode | Wireless Mesh, NAT, DHCP server, PPPoE
14. Security: WPA3-SAE, WPA2/WPA, OWE, 802.1X, captive portal, client isolation
15. Management: Lysora App / Web / Lysora Cloud with AI Optimization | SNMP
16. Mounting: Ceiling or Wall (mounts included)
17. Environment: Indoor IP41 | Operating 0°C to 40°C (32°F to 104°F) | ±2 kV surge
18. Dimensions: 220 × 220 × 45 mm (8.66 × 8.66 × 1.77 in.) | 1.1 kg (2.43 lbs)
19. Certifications: FCC, IC, cTUVus, UL 62368-1 | NDAA Compliant
