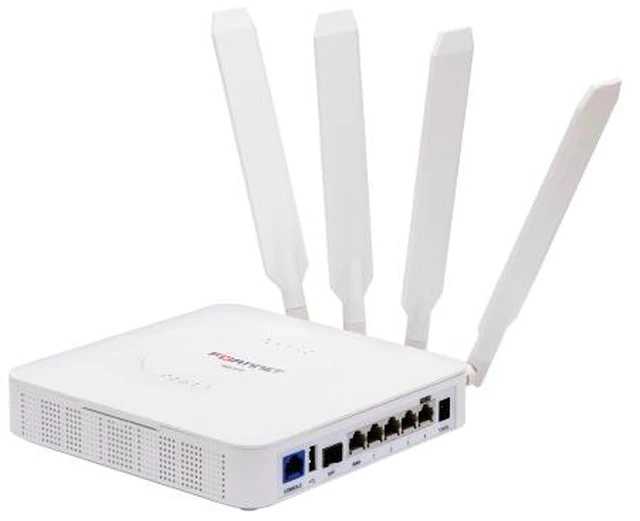

Fortinet FortiExtender 511F 3G/4G LTE Wireless WAN Extenders
- Target Deployment: Enterprise branch offices, retail outlets, and remote sites requiring primary or failover wireless WAN connectivity over 5G/LTE.
- Cellular Modem & SIM: Built-in 5G Sub-6GHz / 4G LTE Cat 20 modem with dual MicroSIM (3FF) slots for active/passive carrier failover.
- Physical Port & Interface Density:1x 1GE SFP optical slot for fiber uplink deployments1x 1GE RJ45 WAN port4x 1GE RJ45 LAN ports 1x USB 2.0 port & 1x RJ45 Console port
- Antennas: Includes 4x external 5G/LTE/GNSS all-in-one SMA antennas for optimized cellular reception.
- Power over Ethernet (PoE): Supports IEEE 802.3at (PoE+) power on Port 4 for simplified single-cable deployment near windows or high-signal areas (also supports 12V DC power adapter).
- Network Integration & Management: Integrates natively into the Fortinet Security Fabric, managed directly from FortiGate via LAN-extension or centrally via FortiExtender Cloud / FortiManager.
- Form Factor: Compact indoor desktop/wall-mountable enclosure.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
The FortiExtender 511F (FEX-511F) delivers reliable, high-speed 5G Sub-6GHz and 4G LTE Cat 20 cellular connectivity for enterprise branch networks, retail pop-ups, and remote sites. Engineered to eliminate signal loss associated with long coaxial antenna runs, the 511F can be placed near windows or outdoors in optimal reception zones up to 100 meters away from your primary switch or firewall via Power over Ethernet (PoE+).
By integrating seamlessly into the Fortinet Security Fabric, the FortiExtender 511F acts as an active primary or backup WAN interface that can be centrally configured and managed directly from a FortiGate dashboard or FortiManager.
Key Features & Highlights- Ultra-Fast 5G / LTE Cat 20 Speeds: Provides up to 5.0 Gbps downlink on 5G Sub-6GHz networks and up to 2.0 Gbps on 4G LTE Cat 20 for high-bandwidth business continuity.
- Dual MicroSIM Redundancy: Features two MicroSIM (3FF) slots for active/passive carrier failover, ensuring continuous uptime across different cellular providers.
- Flexible SFP & Copper Interfaces: Includes 1x 1GE SFP optical slot for long-distance fiber links, 1x 1GE RJ45 WAN port, and 4x 1GE RJ45 LAN ports.
- Power over Ethernet (PoE+): Simplifies installation using a single Ethernet cable (IEEE 802.3at on Port 4) to deliver power and data simultaneously.
- Fortinet Security Fabric Integration: Native LAN-extension capabilities allow remote cellular connections to operate with the same security policies as local interfaces.
| SpecificationDetails | |||||
| Manufacturer Part Number | FEX-511F | ||||
| Modem Type | Internal 5G Sub-6GHz / 4G LTE Cat 20 | ||||
| Peak Cellular Throughput | 5G Downlink: Up to 5.0 Gbps | 4G LTE Downlink: Up to 2.0 Gbps | ||||
| SIM Support | Dual MicroSIM (3FF) Slots | ||||
| Antennas | 4x External 5G/LTE/GNSS All-in-One SMA Antennas | ||||
| Fixed Ethernet Interfaces | 1x 1GE SFP Slot | 1x 1GE RJ45 WAN Port | 4x 1GE RJ45 LAN Ports | ||
| Management & Auxiliary I/O | 1x Console Port, 1x USB 2.0 Port | ||||
| Power Method | IEEE 802.3at PoE+ (Port 4) or 12V/3A DC Power Adapter | ||||
| Power Consumption | Average: 8.0 W | Maximum: 10.0 W | ||||
| Mounting Options | Desktop / Wall-Mount | ||||
| Dimensions (H x W x L) | 1.77 × 7.09 × 7.09 in (45 × 180 × 180 mm) (excl. antennas) | ||||
| Unit Weight | 1.10 lbs (0.50 kg) | ||||
| Boxed / Shipping Weight | ~4.0 lbs (1.80 kg) | ||||
| Country of Origin | Taiwan |
- FortiExtender 511F Hardware Unit
- 4x External 5G/LTE/GNSS SMA Dipole Antennas
- External AC Power Adapter (12V DC)
- Wall-Mount Kit & Rubber Desktop Feet
- Quick Start Guide & Documentation
