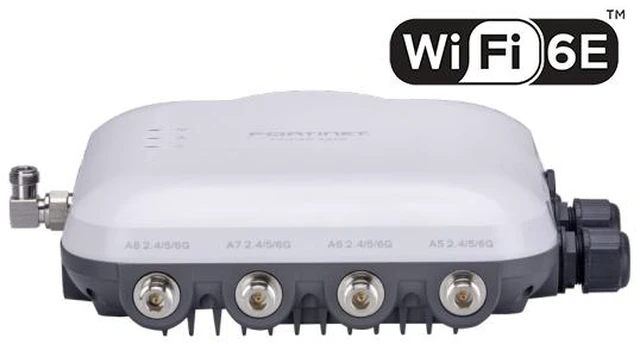

    Fortinet FortiAP 432G 4x4 Ruggedized Tri-radio indoor/outdoor 11ax (6 Ghz) Capable APs

    Be the first to review this product...
    • Target Deployment: Ruggedized indoor/outdoor industrial environments, outdoor venues, high-density campuses, and warehouses requiring multi-gigabit wireless performance.
    • Wi-Fi 6E Tri-Band Technology: Features 3 client-serving radios operating simultaneously across the 2.4 GHz, 5 GHz, and 6 GHz bands with 4x4 MU-MIMO and OFDMA support.
    • High-Speed Aggregate Rates: Delivers combined wireless speeds up to 8.4 Gbps (1,148 Mbps on 2.4 GHz + 2,402 Mbps on 5 GHz + 4,804 Mbps on 6 GHz).
    • External Antenna Array: Equipped with 9 N-Type connectors (4x dual-band, 4x tri-band, and 1x dedicated BLE/Zigbee antenna) for custom coverage.
    • Multi-Gigabit Wired Uplink:1x 10GbE / 5GbE / 2.5GbE / 1GbE RJ45 port with 802.3bt PoE input 1x 1GE RJ45 port 1x USB 3.0 port and 1x RS-232 console port
    • IoT & Scanning Radios: Integrated Bluetooth Low Energy (BLE 5.1), Zigbee, and GNSS receiver for asset tracking, indoor locationing, and automated frequency coordination.
    • Industrial Weatherproof Enclosure: IP67-rated hardened housing built to withstand harsh weather with operating temperatures from -22°F to 122°F (-30°C to 50°C).
    • Security Fabric Integration: Managed directly via FortiGate firewalls or FortiLAN Cloud for centralized security enforcement and rogue AP mitigation.
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    Try me now

    The FortiAP 432G (FAP-432G-A) is an enterprise-grade, ruggedized 4x4 MU-MIMO Tri-Radio Wi-Fi 6E (802.11ax) access point built for high-density indoor and outdoor environments. Delivering multi-gigabit wireless performance across the 2.4 GHz, 5 GHz, and clean 6 GHz spectrums, the 432G supports up to 8.35 Gbps aggregate throughput.

    Housed in an IP67-rated weather-tight enclosure, it features a Multi-Gigabit 10GbE uplink port with PoE input, embedded Bluetooth LE/Zigbee radios for IoT asset tracking, and a dedicated scanning radio. Managed natively via a FortiGate firewall or FortiLAN Cloud, the FortiAP 432G seamlessly extends the Fortinet Security Fabric to harsh industrial and outdoor edge networks.

    Key Features & Highlights
    1. Tri-Band Wi-Fi 6E Performance: Operates simultaneously across 2.4 GHz, 5 GHz, and 6 GHz frequency bands with 4x4 MU-MIMO and OFDMA support.
    2. Ultra-Fast Multi-Gigabit Speeds: Combined aggregate data rates up to 8.35 Gbps (1,148 Mbps on 2.4 GHz + 2,402 Mbps on 5 GHz + 4,804 Mbps on 6 GHz).
    3. 10GbE Wired Uplink: Equipped with 1x 10G/5G/2.5G/1G RJ45 port with 802.3bt PoE input, plus a secondary 1GE RJ45 LAN port.
    4. Rugged IP67 Hardened Enclosure: Built to withstand extreme weather, moisture, and dust with operational temperatures from -40°F to 140°F (-40°C to 60°C).
    5. Integrated IoT & Scanning Radios: Onboard Bluetooth LE (BLE 5.1), Zigbee, and GNSS receiver support location tracking, IoT sensor integration, and background WIPS/WIDS threat scanning.
    6. Region Code A (Americas): Tailored and certified for North and South American regulatory spectrum compliance.
    Technical Specifications
    SpecificationDetails
    Manufacturer Part NumberFAP-432G-A
    Regulatory DomainRegion A (Americas / US)
    Form Factor & Enclosure RatingWall / Pole Mountable | IP67 Outdoor Hardened
    Wi-Fi StandardWi-Fi 6E (IEEE 802.11ax Tri-Band)
    Radio Architecture3 Client-Serving Radios (4x4) + 1 BLE/Zigbee/Scan Radio
    MIMO / Spatial Streams4x4 MU-MIMO per client-serving radio
    Max Throughput Rates 2.4 GHz: Up to 1,148 Mbps
    		 5.0 GHz: Up to 2,402 Mbps
    		 6.0 GHz: Up to 4,804 Mbps
    Antennas9x External N-Type Connectors (Omni-Directional Antennas Included)
    Interfaces 1x 10GBase-T Multi-Gigabit RJ45 (802.3bt PoE-In)
    		 1x 1GE RJ45
    		 1x RS-232 RJ45 Serial Console
    Client CapacityUp to 512 clients per client-serving radio
    Power MethodIEEE 802.3bt PoE (60W) or DC Power Adapter
    Dimensions (L × W × H)10.2 × 8.7 × 2.6 in (259 × 220 × 66 mm)
    Unit Net Weight2.65 lbs (1.2 kg)
    Boxed / Shipping Weight~5.7 to 7.0 lbs (~2.6 to 3.2 kg)
    Country of OriginTaiwan


    What's in the Box?
    1. FortiAP 432G Outdoor Access Point Unit (FAP-432G-A)
    2. 9x External N-Type Omni-Directional Antennas
    3. Wall and Pole Mount Bracket Installation Kit
    4. Cable Gland Assemblies for Weatherproofing
    5. Quick Start Installation Documentation
