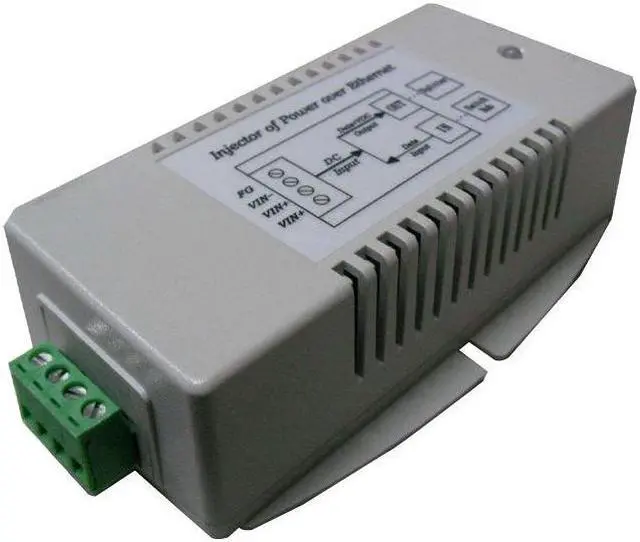

Tycon Power Gigabit +/- 36-72VDC Input, 56V 35W 802.3at POE Output

Features Input Voltage 12VDC or 24VDC or 48VDC IEEE 802.3 af/at Compliant or Passive PoE Output Dual Inputs for Connecting 2 Power Sources Integrated 10/100/1000MB PoE Inserter High Power up to 35W Low Self Consumption Power Short Circuit, Over Current and Reverse/Over Voltage Protect High Temperature Operation

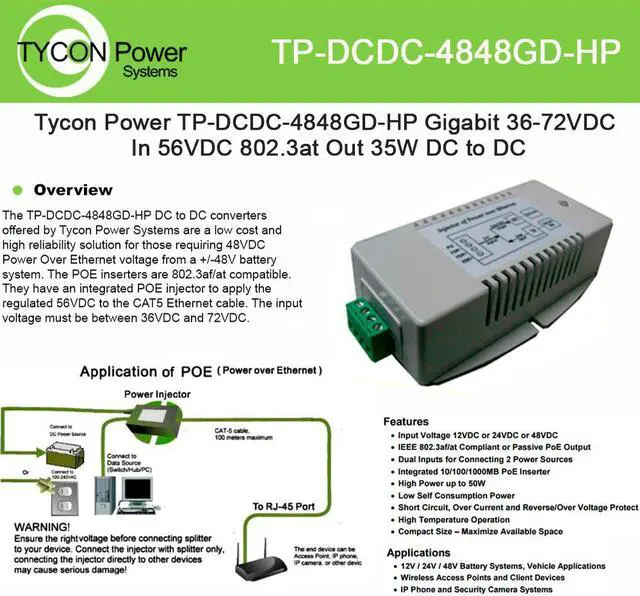

Compact Size – Maximize Available Space Applications 12V / 24V / 48V Battery Systems, Vehicle Applications Wireless Access Points and Client Devices IP Phone and Security Camera Systems Gigabit +/- 36-72VDC IN, 56VDC OUT 802.3 at 35W High Power DC to DC Converter/PoE+ inserter. The TP-DCDC-4848GD-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 48VDC Power Over Ethernet voltage from a +/-48V battery system. The PoE inserters are 802.3 af/at compatible. They have an integrated Gigabit PoE+ injector to apply the regulated 56VDC to the CAT5 Ethernet cable.

The input voltage must be between 36VDC and 72VDC. They accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on the Ethernet pins 4, 5(V+) and 7, 8(V-). They have various protections for surge, short circuit and overload. The units have power output of 35W.
Dimensions: 85 x 76 x 36mm ( 3.4 x 3 x 1.4 in)
Weight: 134g ( 4.7 oz)
Product Type: PoE Injector
Product Type: PoE
Injector Compatibility: Vehicle Applications Wireless Access Points Client Devices IP Phones Security Camera Systems
Manufacturer Part Number: TP-DCDC-4848GD-HP
Limited Warranty: 1 Year
Weight (Approximate): 10.60 oz
Network Technology: 10/100/1000Base-T
Certifications & Standards: IEEE 802.3 at IEEE 802.3 af FCC Class B EN55022 Class B UL1950 CSA 22.2
TUV EN60950 Length: 4.9
Manufacturer: Tycon
Power Systems Product Model: TP-DCDC-4848GD-HP
Product Name: Gigabit +/- 36-72VDC Input, 56V 35W 802.3 at POE
Output Brand Name: Tycon
Power Output Ports: 1
Product Series: TP-DCDC
Brand Name: Tycon Power
Input Ports: 1 10/100/1000Base-T
Output Ports: 1 10/100/1000Base-T
Height: 1.5
Width: 3 Maximum
Output Power: 35 W Maximum
Output Voltage: 56 V DC
