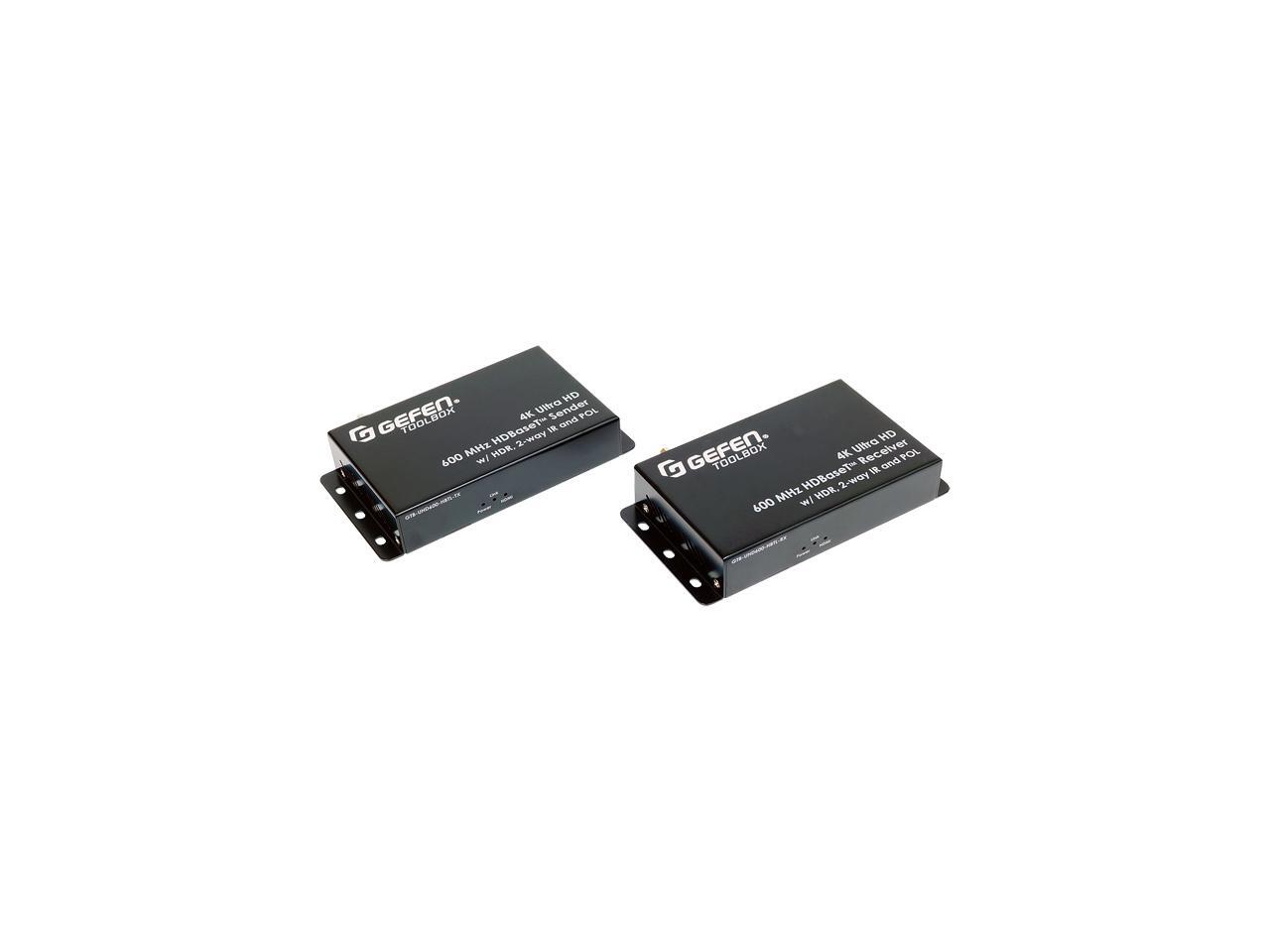

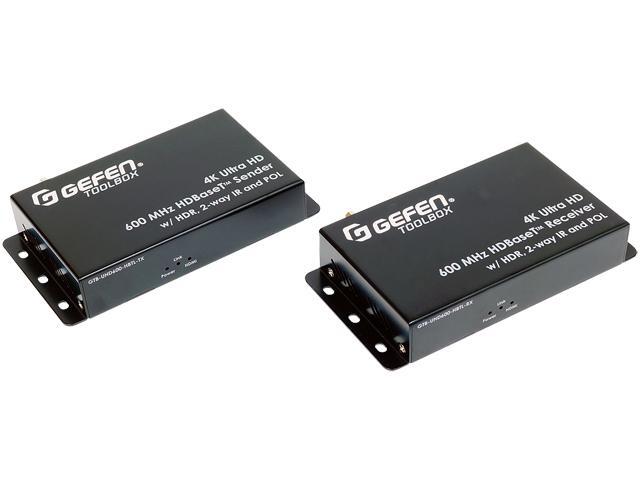

Gefen GTB-UHD600-HBTL
Extend Full-Bandwidth HDMI 2.0 w/ HDR up to 40 meters/132 feet, over a single CAT-5
The Gefen GTB-UHD600-HBTL is a compact and high-performance solution for extending full-bandwidth HDMI 2.0 audio/video with HDR up to 40 meters (132 feet), over a CAT-5e or better cable. It supports 18.2 Gbps of data throughput and 600 MHz TMDS Clock frequency, the highest specified under the HDMI 2.0 standard. This extender uses HDBaseT™ technology along with Gefen's visually lossless proprietary compression algorithms with very high PSNR (Peak Signal to Noise Ratio), to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 to 60
Hz 4:4: 4) and 4K Ultra HD (3860 x 2160 to 60 Hz, 4:4: 4) with HDR. High Dynamic Range (HDR) delivers greater contrast between light and dark areas of a video image, resulting in tremendous improvement in picture quality and color depth. HDCP 2.2 and the legacy HDCP 1.4 are both supported. The GTB-UHD600-HBTL also supports 1080p Full HD, WUXGA (1920 x 1200), 3DTV, and Deep Color (up to 1080p resolution). Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos®, Dolby® TrueHD, DTS: X™, and DTS-HD Master Audio™ are passed through to the HDMI outputs. The GTB-UHD600-HBTL provides 2-way IR extension between the Sender and the Receiver units, facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit. Gefen's Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display. Small, low profile enclosures can be securely surface-mounted and conveniently hidden away from sight, and accommodate Gefen locking HDMI cables for secure connections.
