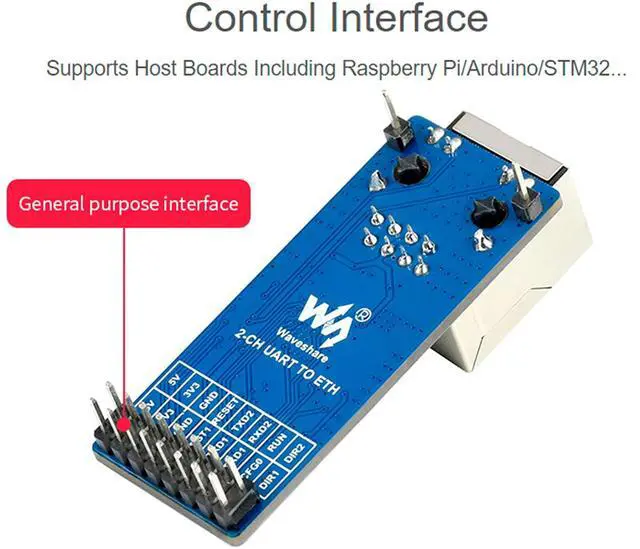

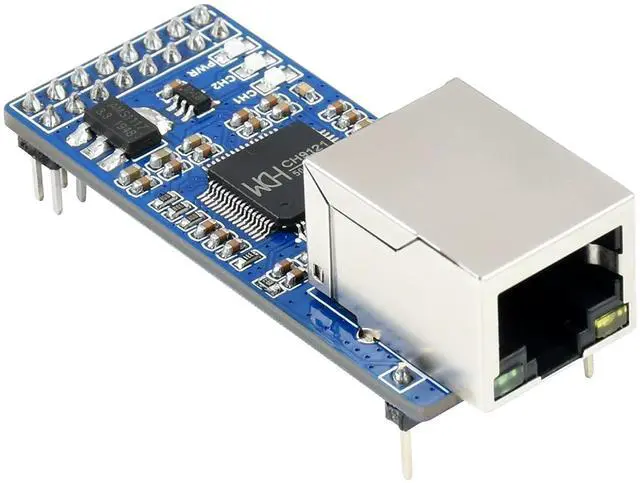

2-Channel UART to Ethernet Converter, Serial Port Transparent Transmission Module UART TTL and RJ45 Ethernet Bi-Directional Transmission, with Control Pin for Raspberry Pi/Arduino/STM32,ect.

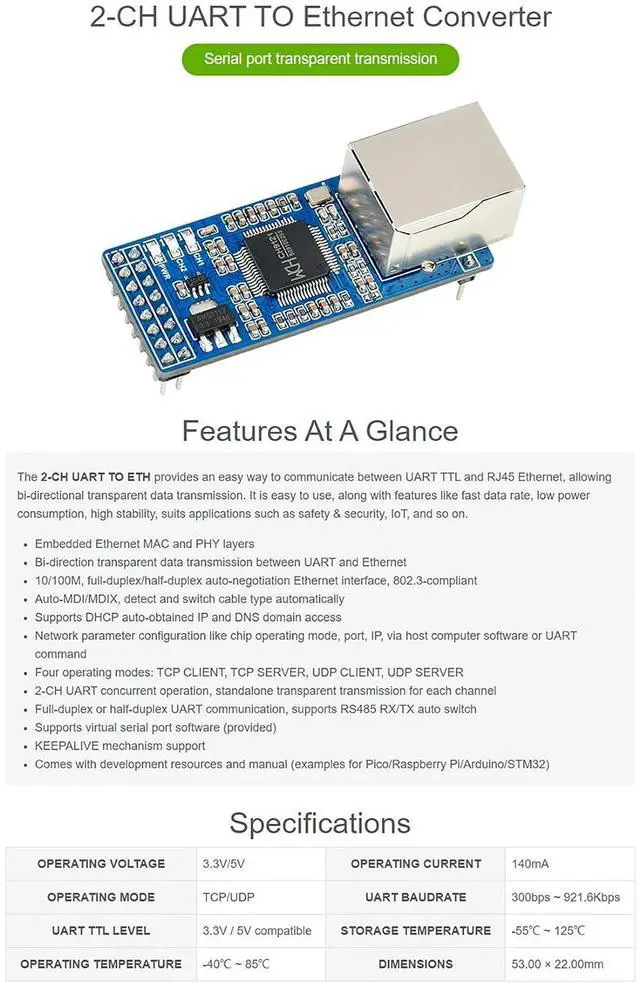

Overview The 2-CH UART TO ETH provides an easy way to communicate between UART TTL and RJ45 Ethernet, allowing bi-directional transparent data transmission. It is easy to use, along with features like fast data rate, low power consumption, high stability, suits applications such as safety & security, IoT, and so on. Features (1). Embedded Ethernet MAC and PHY layers (2). Bi-direction transparent data transmission between UART and Ethernet (3). 10/100M, full-duplex/half-duplex auto-negotiation Ethernet interface, 802.3 -compliant (4). Auto-MDI/MDIX, detect and switch cable type automatically (5).

Supports DHCP auto-obtained IP and DNS domain access (6). Network parameter configuration like chip operating mode, port, IP, via host computer software or UART command (7).
Four operating modes: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER (8). 2-CH UART concurrent operation, standalone transparent transmission for each channel (9). Full-duplex or half-duplex UART communication, supports RS485 RX/TX auto switch (10). Supports virtual serial port software (provided) (11). KEEPALIVE mechanism support (12). Comes with development resources and manual (examples for Pico/Raspberry Pi/Arduino/STM32) Package Content 2-CH UART TO ETH x1 Note Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
