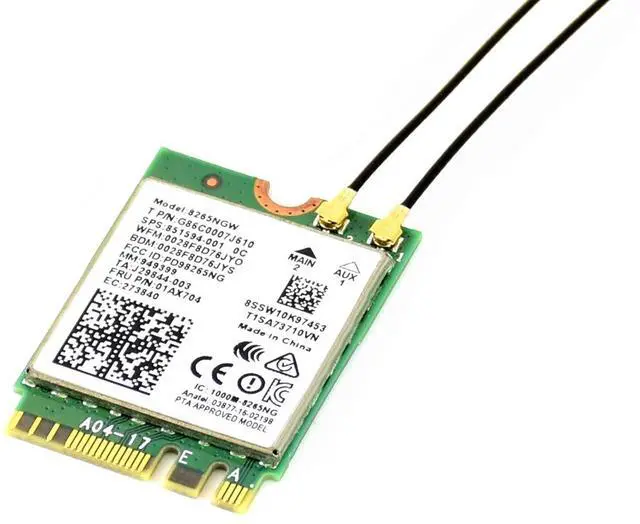

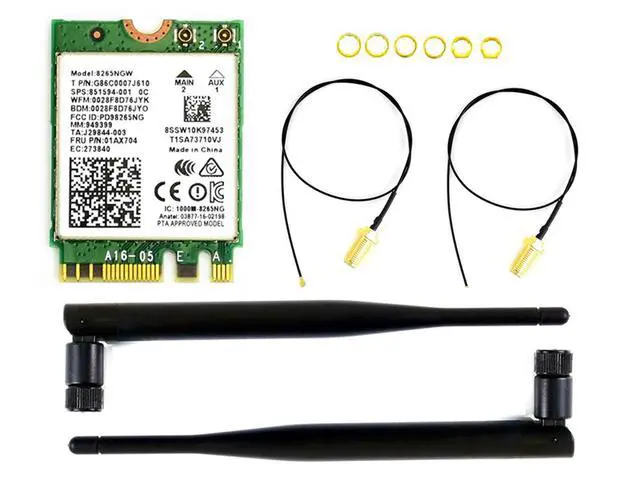

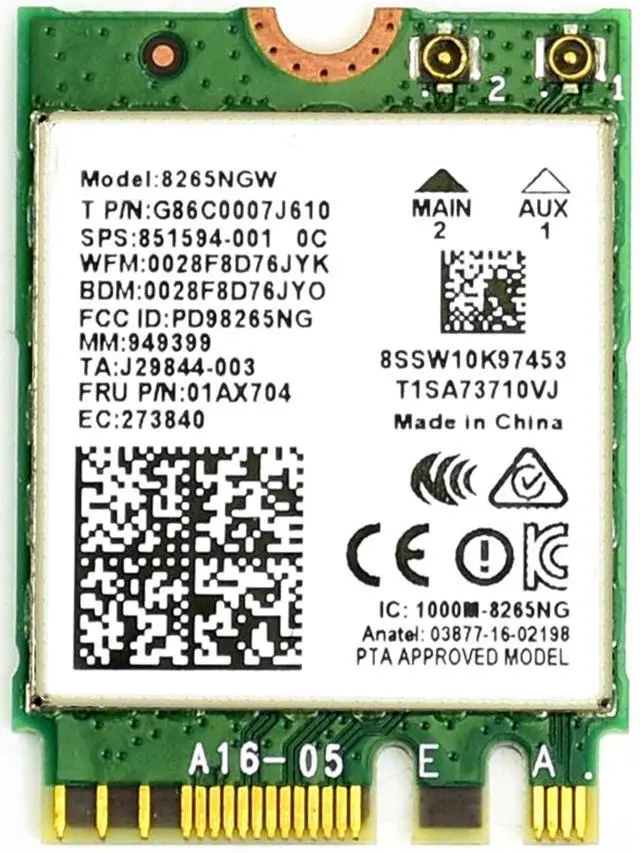

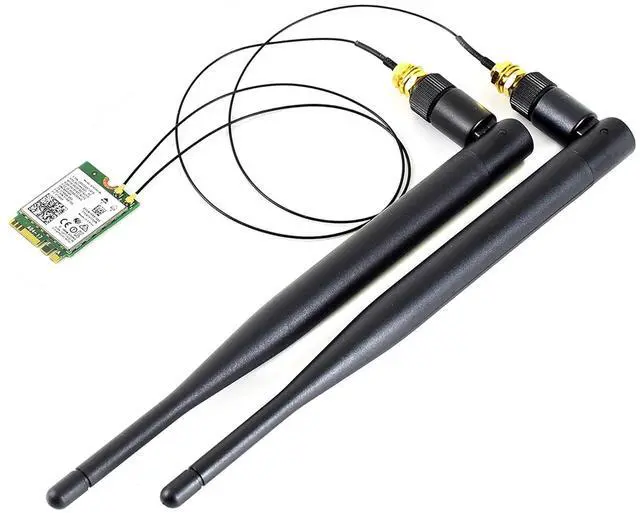

Wireless-AC8265 Dual Mode AC8265 Wireless NIC Module for Jetson Nano Developer Kit B01/A02, Support 2.4GHz/5GHz 300Mbps/867Mbps Dual Band WiFi and Bluetooth 4.2
- Wireless-AC8265 is a dual mode wireless NIC module applicable for NVIDIA Jetson Nano Developer Kit.; Supports 2.4GHz / 5GHz dual band WiFi and Bluetooth 4.2.; Chip: 8265AC ; Bands: 2.4GHz / 5GHz;Speed: 300Mbps / 867Mbps; WiFi protocol: 802.11ac ;Bluetooth version: 4.2; NIC interface: NGFF (M.2);Antenna interface: IPEX connector; Supported OS: Linux, Windows 10/8.1/8/7 ;Dimensions: 22mm × 30mm × 2.4mm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description Features At A Glance Supports 2.4G /5GHz dual-band, the speed up to 300Mbps in the 2.4GH z band and 867Mbps in the 5GHz band Supports Bluetooth 4.2 standard Adopts NGFF (M. 2 A/E Key) interface Supports Linux, Windows 10/11, etc.

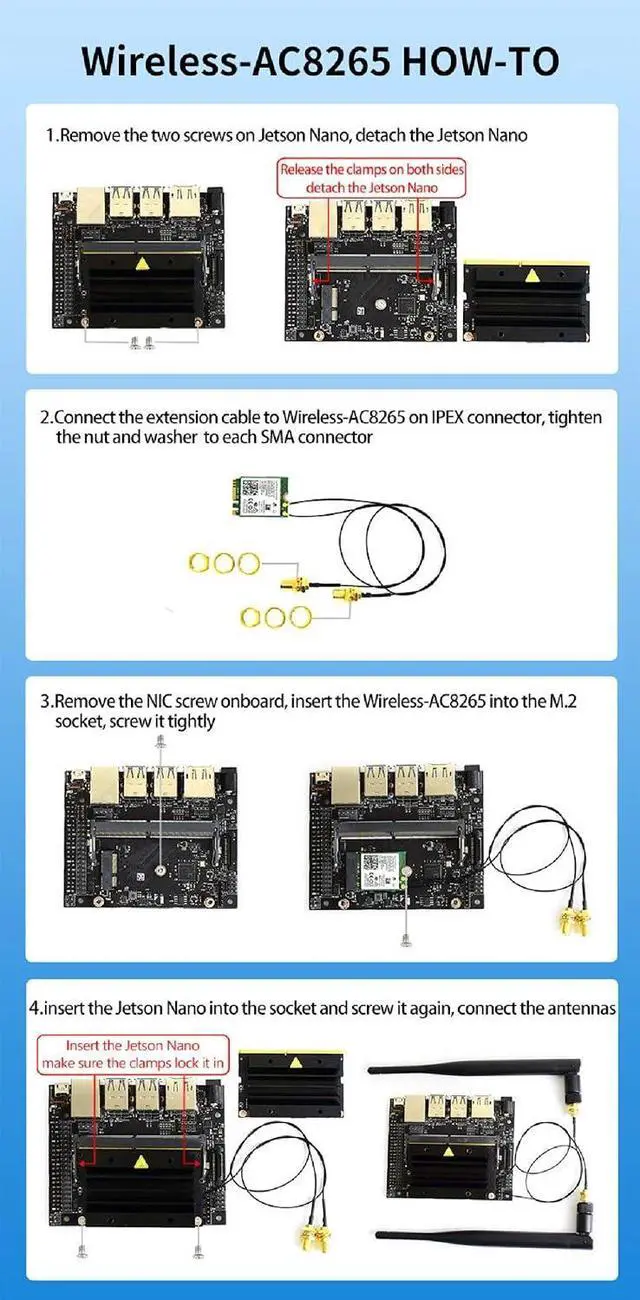

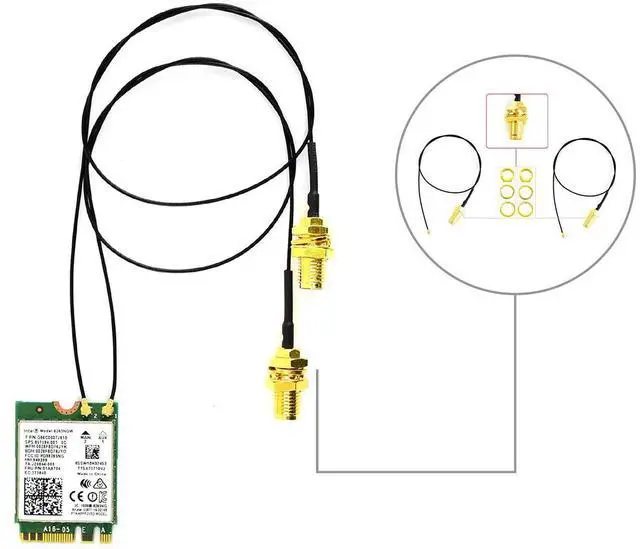

How to Use: 1. Remove the two screws on Jetson Nano, detach the Jetson Nano 2. Connect the extension cable to Wireless-AC8265 on IPEX connector, tighten the nut and washer to each SMA connector 3. Remove the NIC screw onboard, insert the Wireless-AC8265 into the M. 2 socket, screw it tightly 4. Insert the Jetson Nano into the socket and screw it again, connect the antennas Please check detailed Graphic and Textual instruction from the picture above
Note: This item does not support Jetson Nano 2GB Developer Kit
How to Use: 1. Remove the two screws on Jetson Nano, detach the Jetson Nano 2. Connect the extension cable to Wireless-AC8265 on IPEX connector, tighten the nut and washer to each SMA connector 3. Remove the NIC screw onboard, insert the Wireless-AC8265 into the M. 2 socket, screw it tightly 4. Insert the Jetson Nano into the socket and screw it again, connect the antennas Please check detailed Graphic and Textual instruction from the picture above
Note: This item does not support Jetson Nano 2GB Developer Kit
