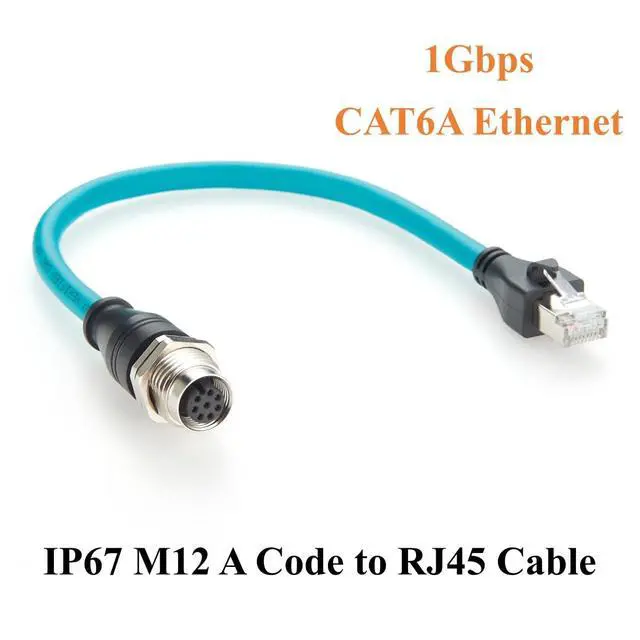

M12 8Pin A Code Female to RJ45 Male Cable Bulkhead Panel Mount 1Gbps CAT6A Industrial Ethernet Cable IP67 Shielded for Profinet, EtherCAT, PLC, Robotics, GigE Vision Cameras(0.3m)
- Industrial M12 A-Code to RJ45 M12 4 Pin A Code Female to RJ45 Male Extension Cable, Support up to 1Gbps Data Transmission, for Profinet, EtherNet/IP, EtherCAT, Modbus-TCP Networks.; Front Panel Mount M12 A Code to RJ45 Ethernet Cable, M12 Female Connector With Front Panel Mount Bulkhead design, thread locking mechanism, Opening Size is 16.5mm, for installation on Control Cabinets, Equipment Enclosures, and Machine Panels.; High Quality & Shielded Panel Mount RJ45 to M12 8Pin Cable, Features CAT6A SFTP Construction, 26AWG Twisted Pairs, AL Foil + Braid Dual-Layer Shielding, for Superior EMI/RFI Protection. PVC Jacket, Wear Resistance, waterproof, oil-resistant, resistant to bending and wear for long-lasting performance.; IP67 Waterproof & Dustproof M12 A Code Pass Through Connector Adapt thread locking mechanism, IP67 Rated when Mated, providing excellent protection in harsh industrial environments, Plug and play.; Application IP67 M12 A Code 8Pin to RJ45 Industrial Ethernet Cable For Industrial Automation, Robotics, PLC, Switch, I/O Modules, Sensors, Actuators, GigE Vision Cameras, Machine Vision, Industrial Camera, Control Panels and so on.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification: Product

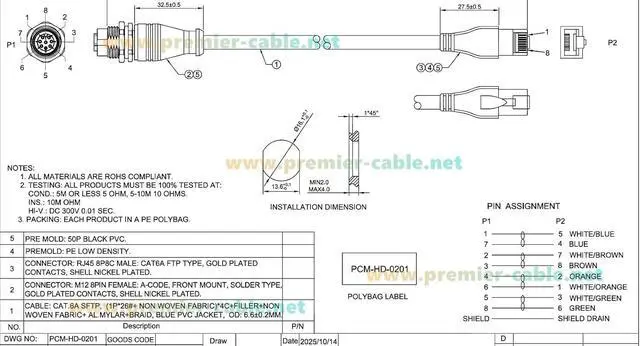

Name: M12 A-Code 8 Pin Female to RJ45 Industrial Ethernet Cable DWG No.: PCM-HD-0201

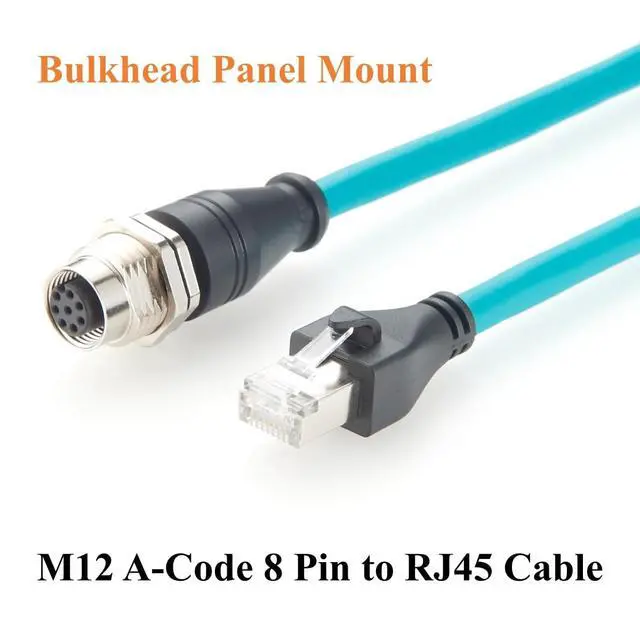

Connector A: M12 A-Code 8 Pin Female Connector, Bulkhead Panel
Mount Connector B: RJ45 8P8C Male

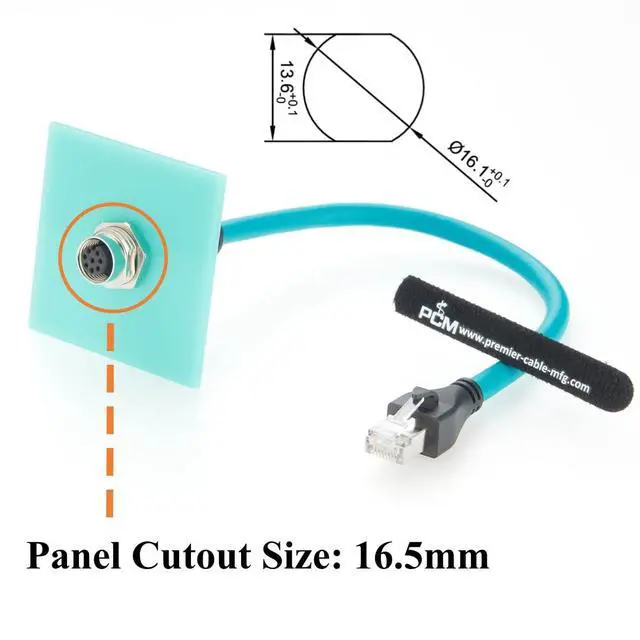

Connector Length: 0.3M Panel
Cutout Size: 16.5 mm

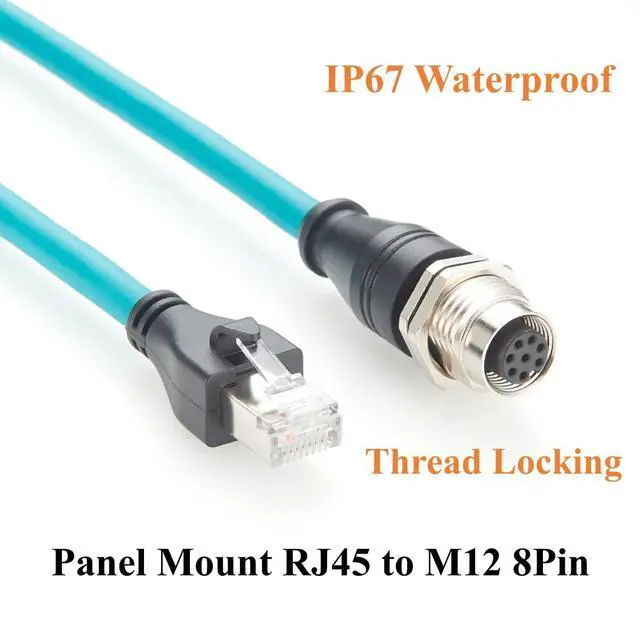

Protection Class: IP67 (When Mated)

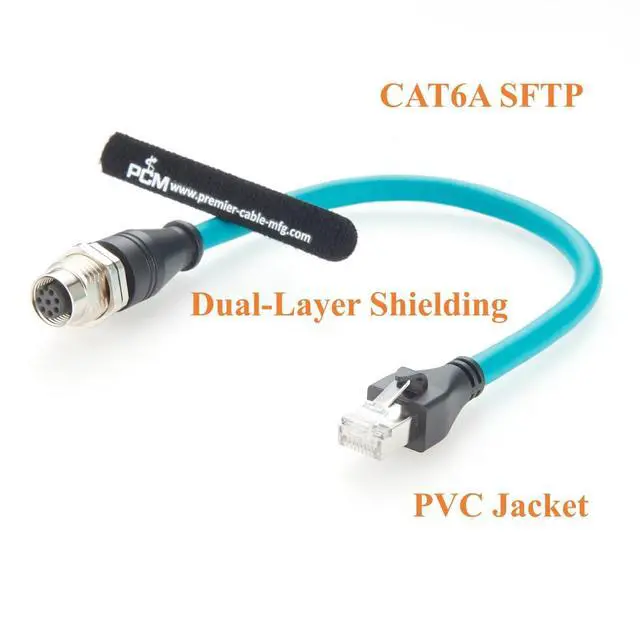

Wire Gauge: CAT. 6A SFTP, (1P*26#+ NON WOVEN FABRIC)*4C+FILLER+NON WOVEN FABRIC+AL. MYLAR+BRAID, PVC
Jacket OD: 6.6MM
Transmission Rate: 1000Mbps
Contact: Gold Plated
Name: M12 A-Code 8 Pin Female to RJ45 Industrial Ethernet Cable DWG No.: PCM-HD-0201
Connector A: M12 A-Code 8 Pin Female Connector, Bulkhead Panel
Mount Connector B: RJ45 8P8C Male
Connector Length: 0.3M Panel
Cutout Size: 16.5 mm
Protection Class: IP67 (When Mated)
Wire Gauge: CAT. 6A SFTP, (1P*26#+ NON WOVEN FABRIC)*4C+FILLER+NON WOVEN FABRIC+AL. MYLAR+BRAID, PVC
Jacket OD: 6.6MM
Transmission Rate: 1000Mbps
Contact: Gold Plated
