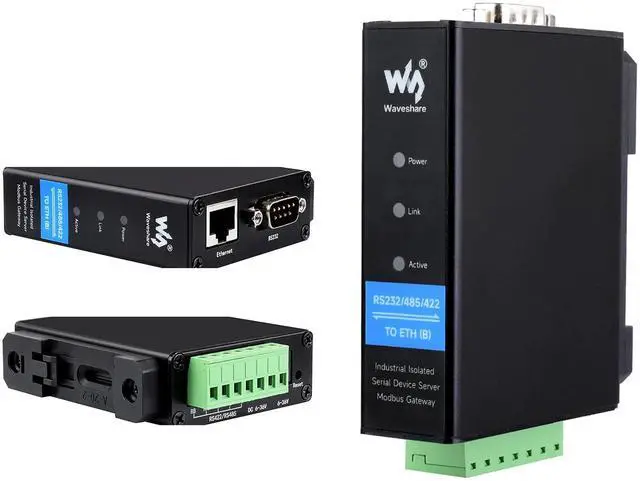

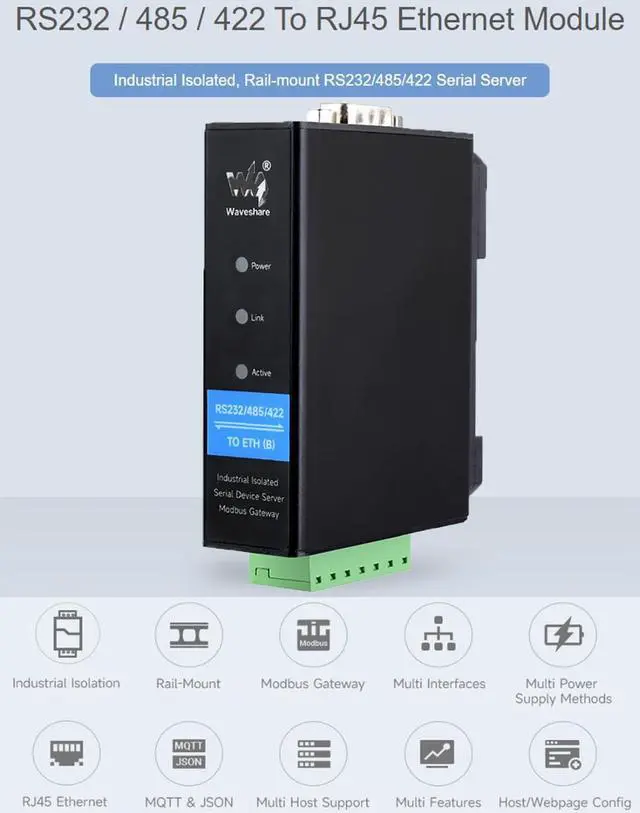

waveshare Industrial Isolated Rail-Mount RS232/485/422 Serial Server, RS232/485/422 to RJ45 Ethernet Module, TCP/IP to Serial Converter, Multi Communication Modes, Support Modbus Gateway
Limited time offer, ends 07/19 By EmpressTech

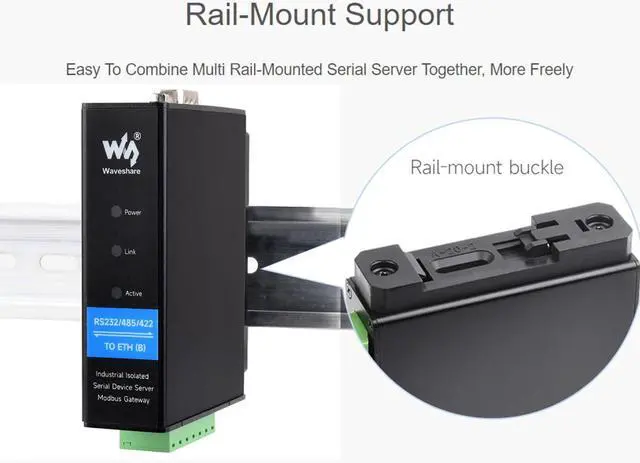

- RS232/485/422 and Ethernet Bi-directional transmission--- This is a RS232/485/422 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS232/485/422 and Ethernet port. It realizes Bi-directional transparent data transmission between RS232/485/422 and Ethernet.; Three Different Interfaces--- Onboard RS232 / 485 / 422 Interfaces, Suitable For More Application Scenarios. Ethernet Port To RS232/485/422---The Ethernet port can send data to three serial ports at the same time. RS232 / 485 / 422 To Ethernet Port---Only one of the RS232, RS485, and RS422 can send data to the Ethernet port at the same time.; Three Methods For Power Supply---Support Screw Terminal and DC Power Port for Power Supply, DC 6~36V Wide Voltage Range Input; Support Rail-mount---easy to combine multi rail-mounted serial server together, more freely. Support Modbus gateway--- suitable for Modbus networking upgrade, Can Be Used With specific Configuration Software. Multi communication modes--- supports TCP server / TCP client / UDP mode / UDP multicast.; MQTT/JSON to Modbus--- more flexible conversion between different protocols. Multi hosts roll-polling---support: different network devices will be identified and responsed respectively,no more crosstalk issue while communicating with multi network devices. Multi configuration methods---supports Web browser confi
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

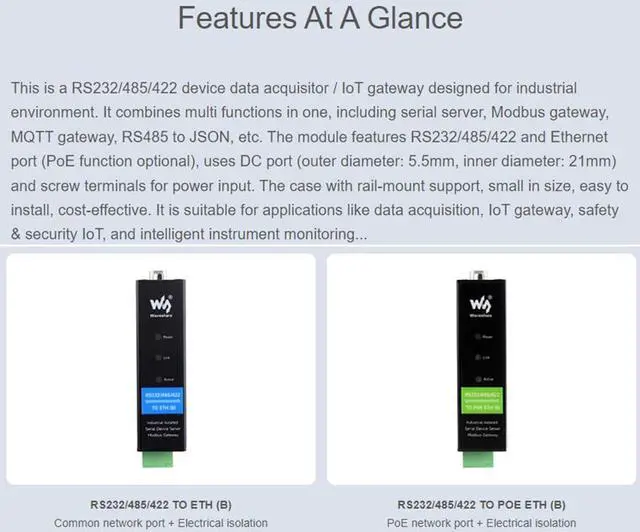

Features This is a RS232/485/422 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS232/485/422 and Ethernet port, uses
DC port (outer diameter: 5.5 mm, inner
diameter: 21mm) and screw terminals for power input.
Primary function: Realize the bidirectional transparent transmission function of RS232/485/422 to

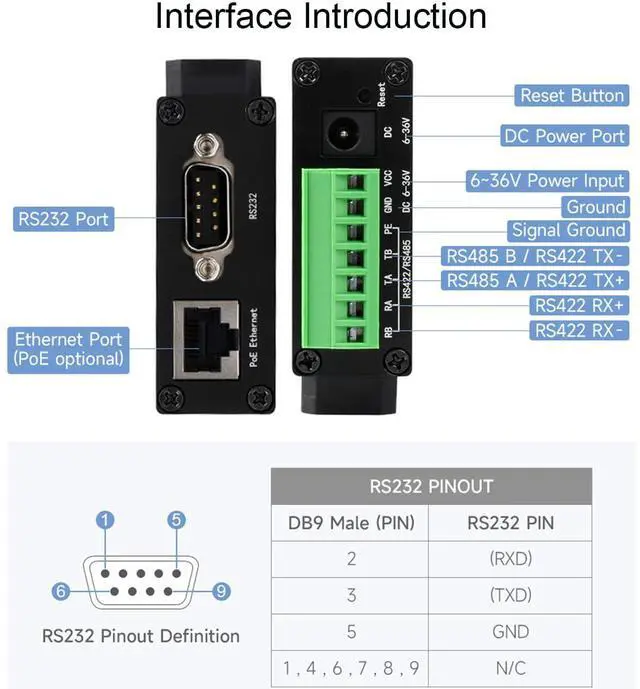

Ethernet Communication interface: RS232 port × 1; RS485 port × 1; RS422 port × 1; Ethernet port × 1
Power supply: DC power port, 6 ~ 36V DC screw terminal
Isolation protection: Power isolation, signal isolation protection
Communication interface Ethernet: common network port 10 / 100M self-adaptive RJ45 interface, 2KV surge protection
Serial port: Isolated RS232/485/422 Serial parameters
Baud rate: 300 ~ 115200 bps
Parity bit: none, odd parity, even parity, mark, space
Data bits: 5 ~ 9 bits
Flow Control: no flow control
Software Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration method: PC configuration, WEB browser, device management function library
Communication method: TCP/IP direct communication, virtual serial port mode
Operating mode: TCP server, TCP client (TCP server also coexist), UDP, UDP multicast
Other Operating temperature: -40 ~ 85
Humidity range: 5% ~ 95% relative humidity

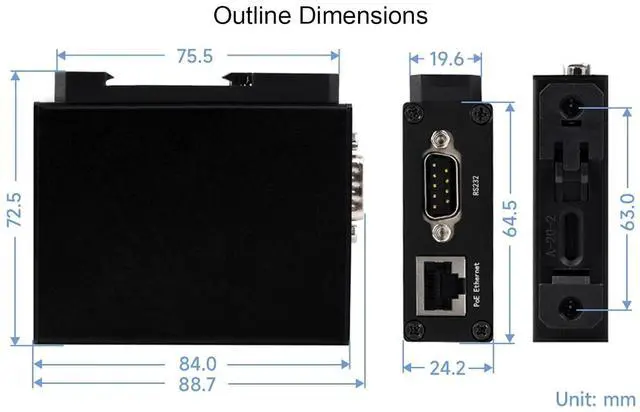

Dimensions: L × W ×
H: 88.7 × 72.5 × 24.2 mm Package Content RS232/485/422 TO ETH (B) x1
DC port (outer diameter: 5.5 mm, inner
diameter: 21mm) and screw terminals for power input.
Specifications
Product type: Serial server, Modbus gateway, MQTT gatewayPrimary function: Realize the bidirectional transparent transmission function of RS232/485/422 to
Ethernet Communication interface: RS232 port × 1; RS485 port × 1; RS422 port × 1; Ethernet port × 1
Power supply: DC power port, 6 ~ 36V DC screw terminal
Isolation protection: Power isolation, signal isolation protection
Communication interface Ethernet: common network port 10 / 100M self-adaptive RJ45 interface, 2KV surge protection
Serial port: Isolated RS232/485/422 Serial parameters
Baud rate: 300 ~ 115200 bps
Parity bit: none, odd parity, even parity, mark, space
Data bits: 5 ~ 9 bits
Flow Control: no flow control
Software Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration method: PC configuration, WEB browser, device management function library
Communication method: TCP/IP direct communication, virtual serial port mode
Operating mode: TCP server, TCP client (TCP server also coexist), UDP, UDP multicast
Other Operating temperature: -40 ~ 85
Humidity range: 5% ~ 95% relative humidity
Dimensions: L × W ×
H: 88.7 × 72.5 × 24.2 mm Package Content RS232/485/422 TO ETH (B) x1
