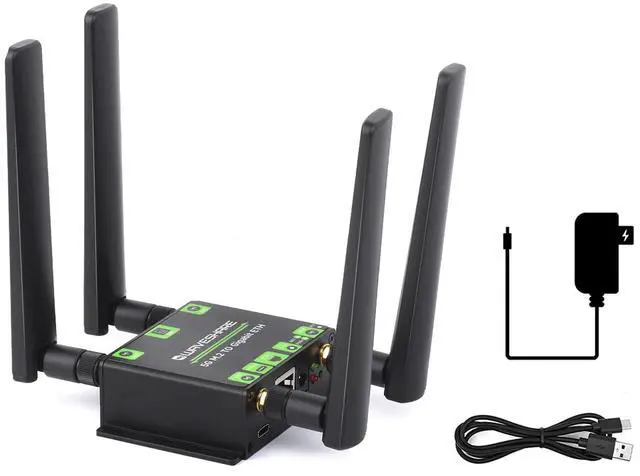

5G M.2 to Gigabit Ethernet + USB3.1 Converter, Quad Antennas, Aluminum Alloy Case, Wall-Mount Support, Onboard M.2(NGFF) Key B Interface, USB3.1 Port

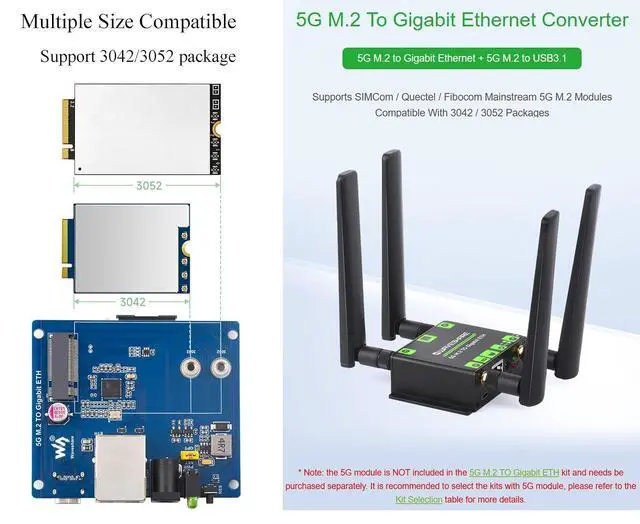

Features 1. Supports 5G modules with M. 2 (NGFF) Key B interface, compatible with mainstream 5G modules from the brands such as SIMCom, Quectel, and Fibocom 2. Supports 5G modules in 3042/3052 packages such as SIM82XX, RM5XX and FM160XX series 3. Onboard RTL8125 Ethernet chip, supports 5G to Gigabit Ethernet for high speed 5G networking via the Gigabit Ethernet port 4. Onboard USB 3.1 Type-A port for connecting to PC, Raspberry Pi, or Jetson series motherboards for high-speed 5G networking or debugging. Supports Multiple Operating Modes 5.

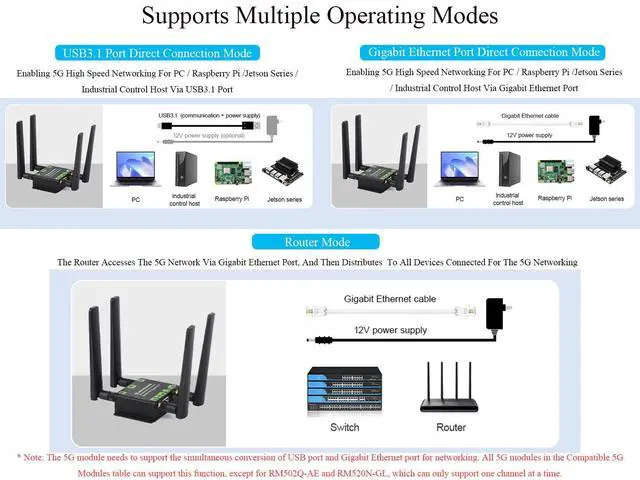

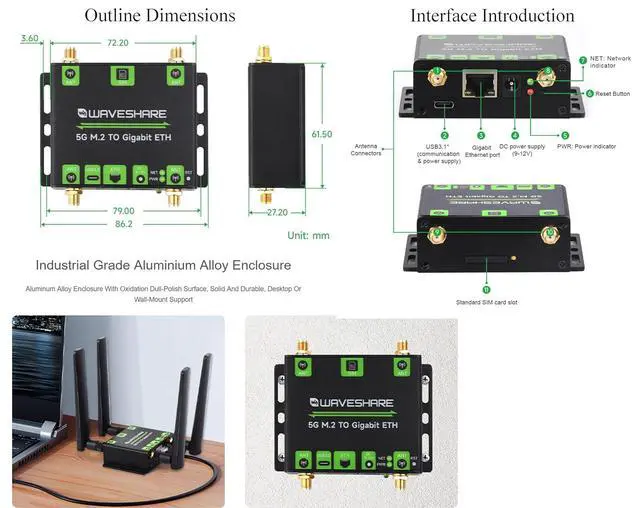

Onboard voltage translator circuit, supports 9-12V power supply via DC 5.5 mm jack, or 5V/2A power supply via USB 3.1 port 6. Onboard standard SIM card slot 7. Onboard power supply and network indicator, reset button, for checking the working status of the module and 5G debugging 8. Comes with 4× 5G omnidirectional high-gain antennas and 12V power supply adapter, easy to use directly with 5G module 9. Aluminum alloy enclosure wall-mount support Supports Multiple Operating Modes 1. USB 3.1 Port Direct Connection Mode Enabling 5G High Speed networking For PC / Raspberry Pi /Jetson series / industrial control host via USB 3.1 port 2.

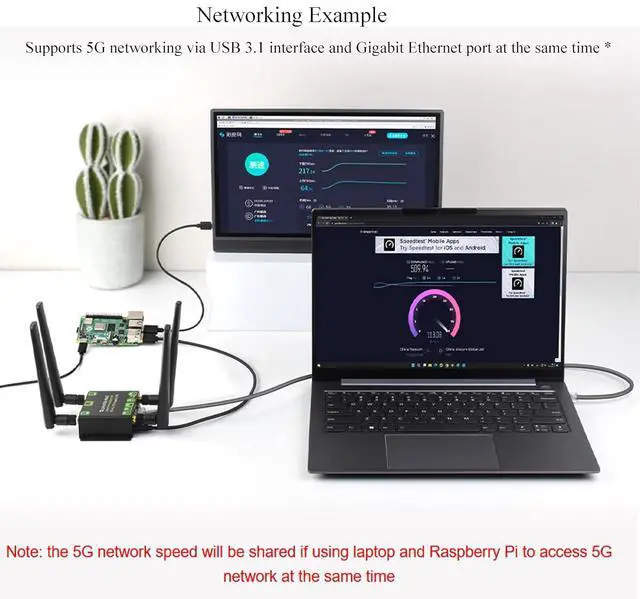

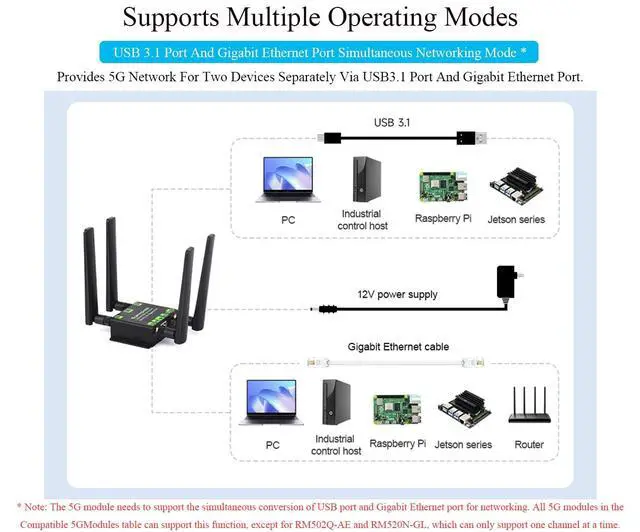

Gigabit Ethernet port direct connection mode Enabling 5G High Speed networking For PC / Raspberry Pi /Jetson series / industrial control host via Gigabit Ethernet port 3. Router mode The router accesses the 5G network via Gigabit Ethernet port, and then distributes To All Devices Connected For The 5G Networking 4. USB 3.1 port and Gigabit Ethernet Port Simultaneous Networking Mode Provides 5G network for two devices separately via USB 3.1 port and Gigabit Ethernet port More Online Development Resources /User
Manual: bit.
ly/3wYH3HJ Application Scenarios: Networked Mediacal Treament, Intelligent Agriculture, Smart Robots, Intelligent Bus Wifi, etc.
