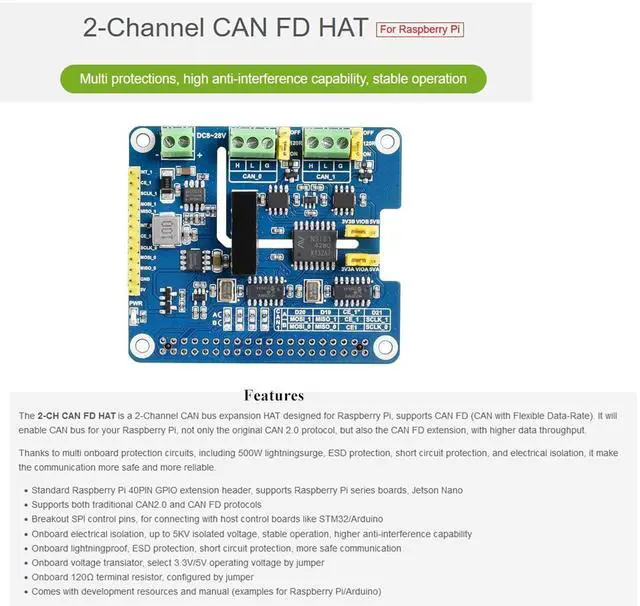

2-CH CAN FD HAT 2-Channel Isolated CAN FD Expansion HAT for Raspberry Pi 5/ 4B/3B+/3B/Pi Zero W/WH/Pi Zero 2W WH/and Jetson Nano, Support CAN FD, MCP2518FD CAN Controller + CAN Transceiver Chip

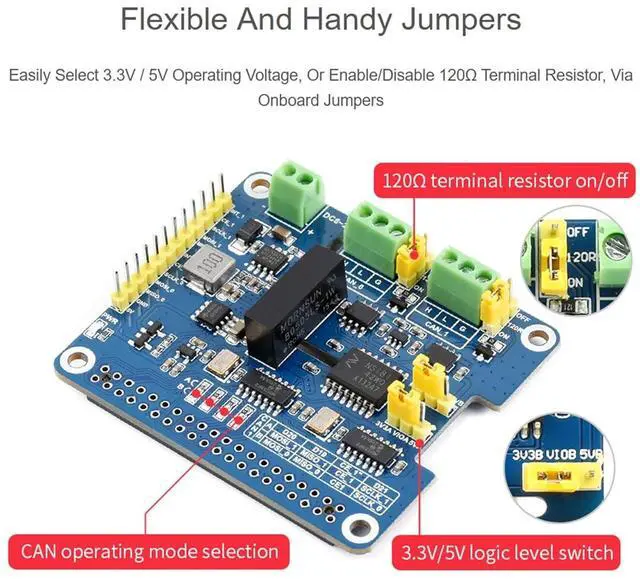

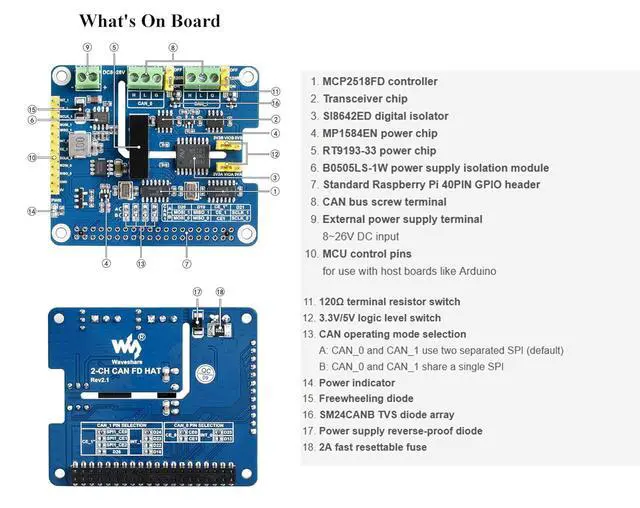

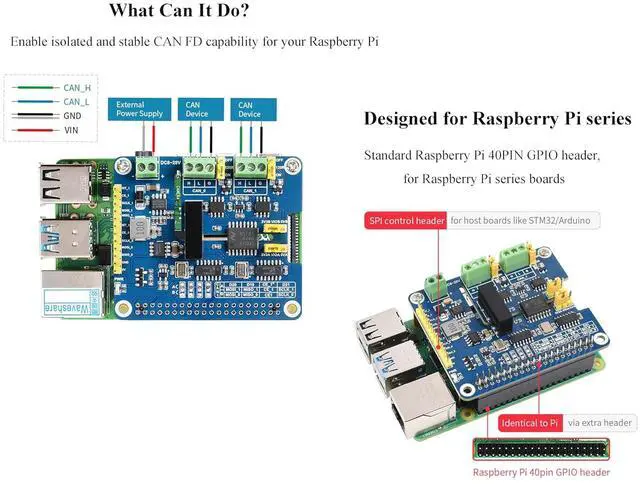

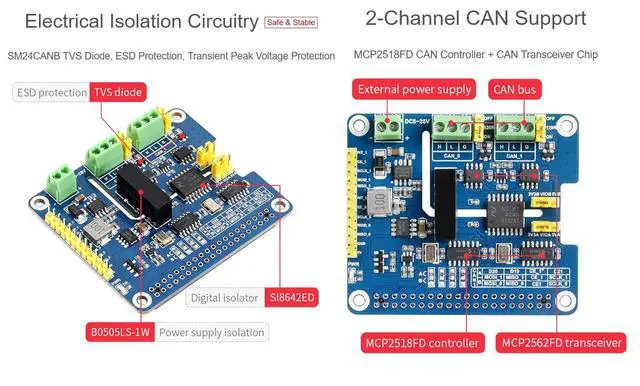

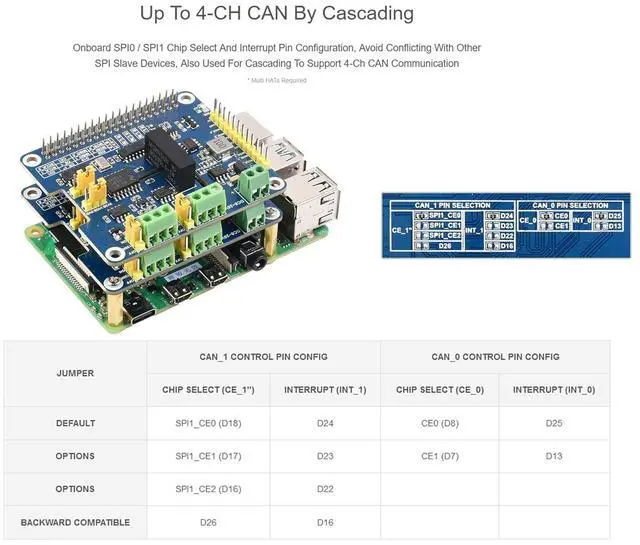

- CompatibIe with Raspberry Pi and Jetson Nano--- The 2-CH CAN FD HAT is a 2-Channel CAN bus expansion HAT with Raspberry Pi 40PIN GPIO extension header,compatible with Raspberry Pi 5/Zero/Zero W/Zero WH/2B/3B/3B+/4B, Jetson Nano; Support CAN FD protocols--- It will enable CAN bus for your Raspberry Pi, not only the original CAN 2.0 protocol, but also the CAN FD extension, with higher data throughput.; Support 2-Channel CAN --- MCP2518FD CAN controller + CAN transceiver chip; up to 4-CH CAN by cascading--- Onboard SPI0 / SPI1 chip select and interrupt pin configuration, avoid conflicting with other SPI slave devices, also used for cascading to support 4-ch CAN communication; Electrical isolation circuitry --- SM24CANB TVS diode, ESD protection, transient peak voltage protection, safe & stable; Flexible and handy jumpers---Easily select 3.3V / 5V operating voltage, or enable/disable 120 terminal resistor, via onboard jumpers
+
+
