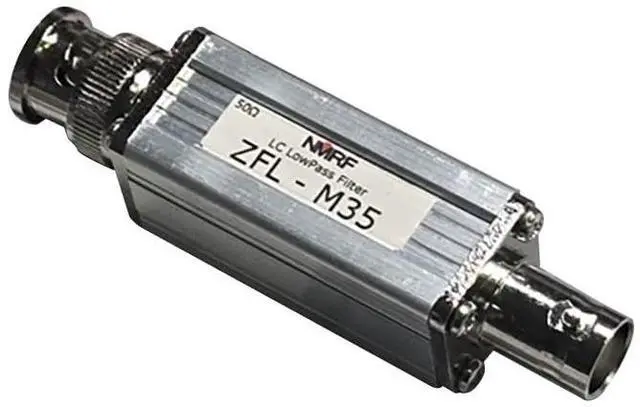

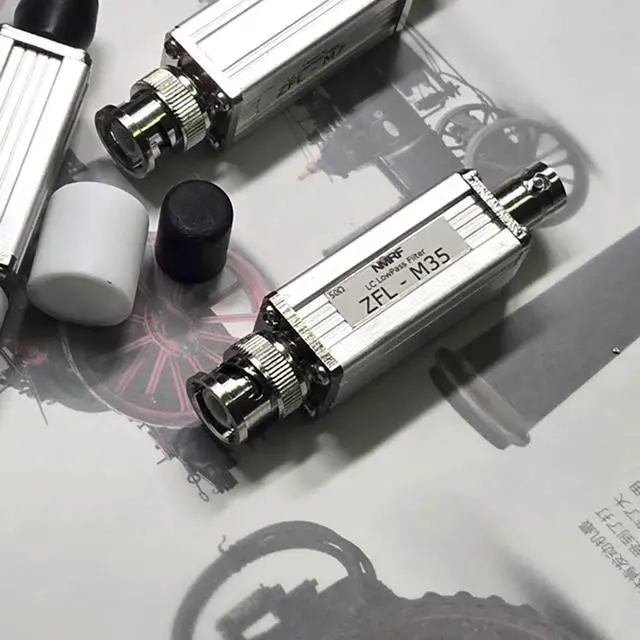

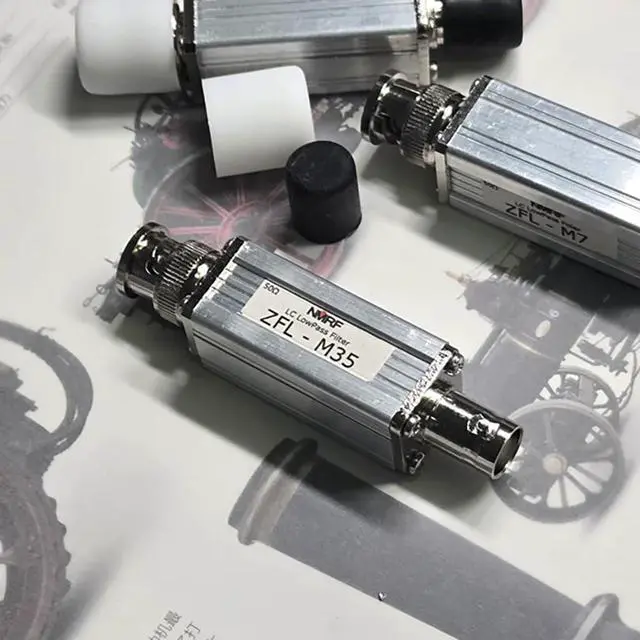

BNC Low Pass Filter Built with Discrete LC Components Compact Design High Out-of-Band Rejection (350kHz)

Connectors: BNC-M (male connector, inner ring, inner pin), BNC-F (female connector, outer ring, inner hole).; Impedance: 50 . Maximum Power Handling: 5 W (37 dBm). Compact size, flat passband, high out-of-band rejection.; 700kHz Insertion Loss: <=1.0 dB @ DC700 kHz, > 40 dB @ 4.0 MHz, > 50 dB @ 5100 MHz. Model ZFL-M7.; 500kHz Insertion Loss: <=1.0 dB @ DC500 kHz, > 40 dB @ 2.5 MHz, > 50 dB @ 3100 MHz. Model ZFL-M5.; 350kHz Insertion Loss: <=1.0 dB @ DC350 kHz, > 40 dB @ 1.8 MHz, > 50 dB @ 3100 MHz. Model ZFL-M35.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

JMT BNC Low Pass Filter Built with Discrete LC Components Compact Design High Out-of-band Rejection

Specifications

: Compact size, flat passband, high out-of-band rejection
Impedance: 50
Maximum Power Handling: 5 W (37 dBm)

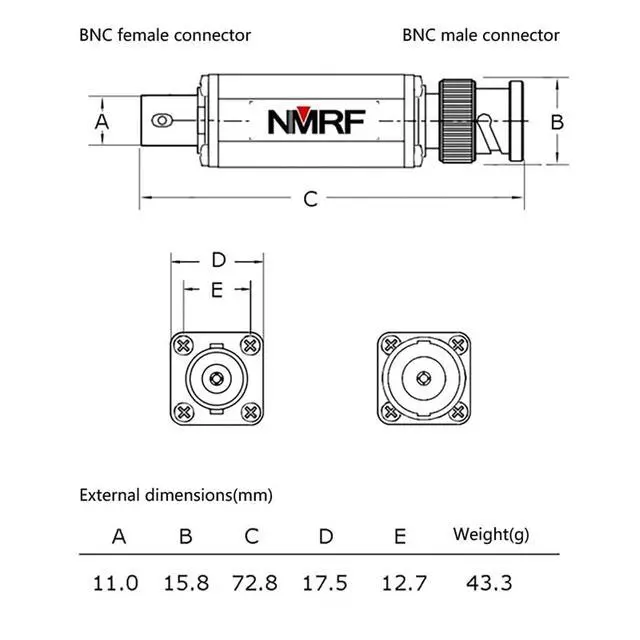

Connectors: BNC-M (male connector, inner ring, inner pin), BNC-F (female connector, outer ring, inner hole) Detail

Specifications

:
700kHz: Model
ZFL-M7 Insertion loss: <=1.0 dB @ DC700 kHz > 40 dB @ 4.0 MHz > 50 dB @ 5100
MHz 500kHz: Model
ZFL-M5 Insertion loss: <=1.0 dB @ DC500 kHz > 40 dB @ 2.5 MHz > 50 dB @ 3100

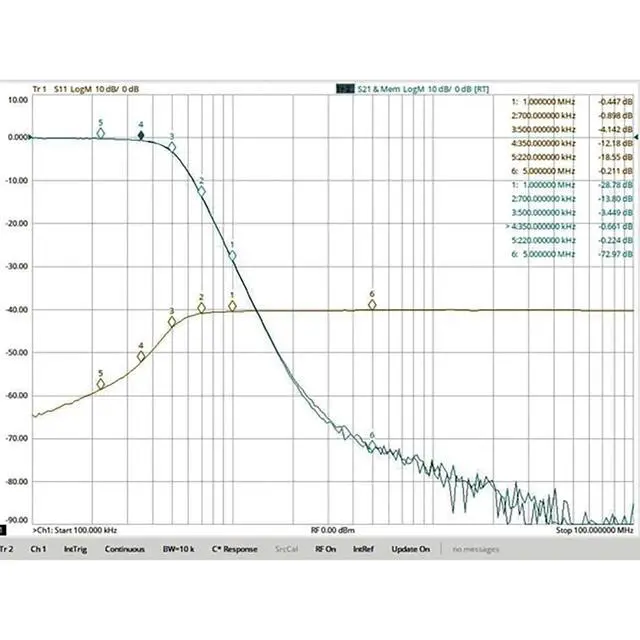

MHz 350kHz: Model
ZFL-M35 Insertion loss: <=1.0 dB @ DC350 kHz > 40 dB @ 1.8 MHz > 50 dB @ 3100
MHz Applications: Laboratory applications Other high-selectivity applications
