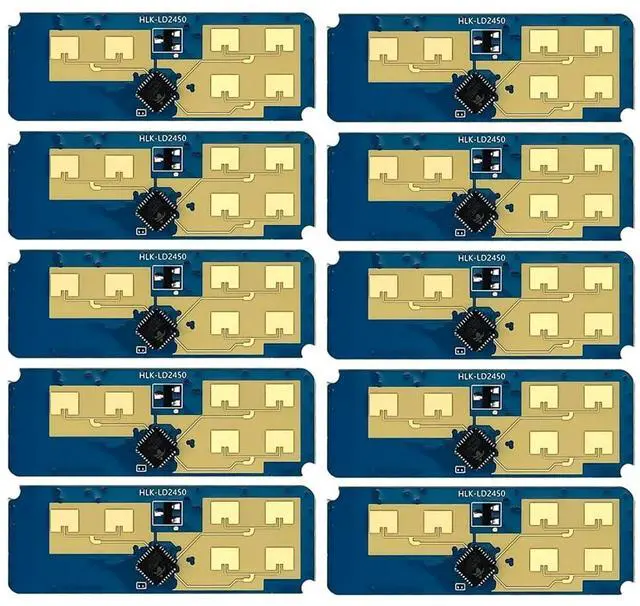

HLK-LD2450 24GHz Trajectory Sensor ISM Smart Home Human Movement Tracking Ra¡¤DAR Induction Module Distance Angle Speed Measurement (10Pcs)

HLK-LD2450 24GHz Trajectory Sensor ISM Smart Home Human Movement Tracking Induction Module Distance Angle Speed
Measurement Product Description: The LD2450 is a 24G module, which can achieve real-time tracking of the position of the moving target in the detection area, and output the distance, angle and speed information of the moving target in the area through the serial port. It is mainly used in common indoor scenes, such as home, office and hotel, to realize the positioning and tracking of moving people.
Product Features -Frequency: 24G-
24.25GH z -Sweep bandwidth: 250MHz
(CE/FCC compliant) -Modulation mode: FMCW
-Power supply voltage: 5V(Typ. )
-External Dimension: 15x40mm -Detection
Angle: Azimuth ¡À 60¡ã / Tilt ¡À 35 -Detection
Distance: Maximum Sensing Distance 8m -Distance defense rate: 0.75
m -Distance measurement accuracy: 0.15 m -Angle
Accuracy: 2¡ã ~ 20 -Data refresh rate: 10Hz
-Ambient temperature: -40¡ãC~+85¡ãC
-Data format: Serial ASC
Il output -Package: Default 1.5 mmx4Pin Female (Customizable) The serial port baud rate is 256000. 1 stop bit, no parity bit. Configuration Tool Description After connecting the module, open the Configuration Tool and select the correct port number and serial port information when clicking Detect Device. After connecting the module, open the Configuration Tool, click Detection Device, select the correct port number and serial port information, and then click Start to get the moving targets in the detection area. Then click Start to get the moving target information in the detection area.
Note: The serial port tool and the host tool can not be used at the same time.
