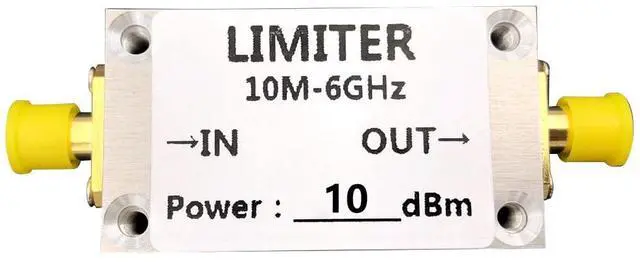

PIN Diode SMA RF Limiter 10M-6GHz with SMA Interface for Low Power Input Protection Compatible with Spec Trum Analysers, Pre-Low Noise Amplifier, SDR Receiver (10dBm with CNC Case)

JMT PIN Diode SMA RF Limiter 10M-6GHz with SMA Interface for Low Power Input Protection Compatible with Spec trum Analysers, Pre-low Noise Amplifier, SDR Receiver Introduction RF limiters are used for input protection of low power receiving equipment such as Compatible with spec trum analysers, pre-low noise amplifiers, SDR receivers, etc. They can effectively resist ESD damage. It can also be used for input protection of short-wave receivers. This product contains a strong aluminium alloy shielding shell, no leakage, no interference, small and easy to use, is the radio frequency, microwave technology experiments of the standing device.

Index parameters 1, Model: Limiter
0dBm-10dBm-20dBm-30dBm-36dBm 2Impedance: 50
Ohms 3Insertion loss: < 0.2 dB @1GHz/0dBm <2dB @1~3GHz/0dBm <3dB @3~6GHz/0dBm Refer to the measured
S21 curve 4Maximum input power: 20dBm 5, 1dB
limit power: <0dBm/10dBm/20dBm/30dBm/36dBm
6Interface: SMA
7Dimensions without case: 10 * 25 (mm) without protruding SMA 8, with the shell size - length, width
and height: 45 * 25 * 12 (mm) does not include the protruding SMA Measured S21 insertion loss (0dBm limiter frequency range up to 6GHz)
