5V 30A Power Supply,150W Universal Regulated Switching Power Converter Adapter Transformer for LED Strip Light,Probe Signal Lamp,CCTV, Radio, Computer Project
- Switching Power Supply 5V, Convert AC 110V/220V to DC5V 30A Max,150 Watt Max.IN-DOOR USE ONLY!
- Smart device surge protection for Short-circuit Protection, Overload, Over Voltage,Over Temperature Protection. High efficiency, High Reliability, Low Temperature Rise
- Built-in EMI filter, low output ripple, noise, Rugged heavy duty enclosure, 100% Full load burn-in Tested. Parallel/Redundancy Operation is possible.
- Good performance:mainly meterial are plastic and aluminum, which are good heat dissipation. The aluminum is carved directly, which make the transformer easier to heat dissipation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications:
Product Name: LED Switching Power Supply
Model:5V 30A
Safety Compliance: CCC/ FCC / CE
Input: AC110V/220V
Output: DC5V 30A
Output Power: 150W
Number of Output: +V x 2, -V x 2
Frequency: 50/60Hz
Working temperature:0~40
Storage Temperature: -20~60
Ambient Humidity: 0~95% Non-Condensation
Material: Metal, Electronic Parts

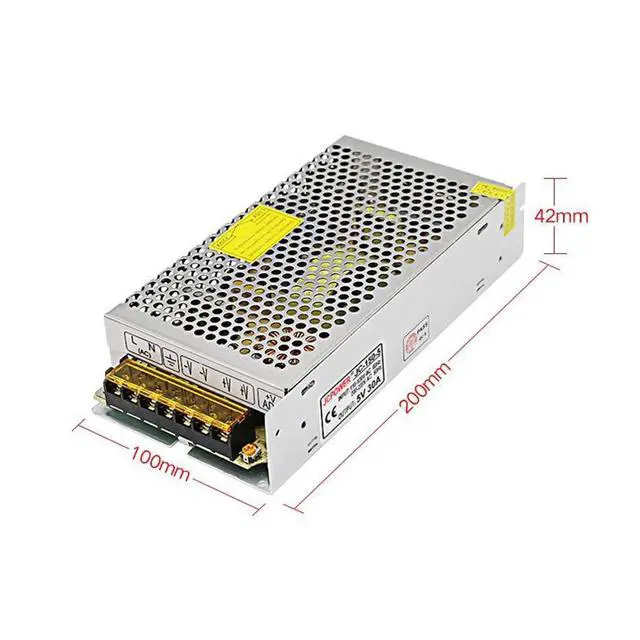

Size:200mm*100mm*42mm(L*W*H)
Main Color: Silver Tone
Net Weight :550g

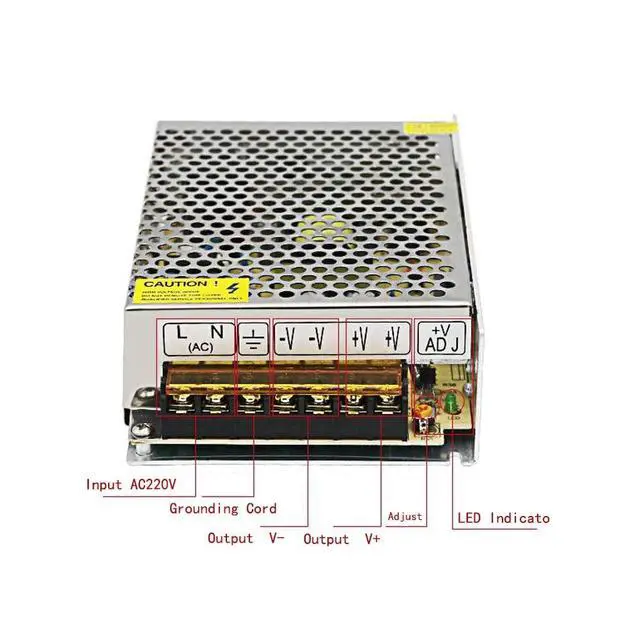

Connection:
L, N: AC power input
+V: DC power output "+"
-V: DC power output "-"
+V / ADJ: fine adjustment of output voltage
Product Features:
Protection: Short-circuit, Overload, Over Voltage, Over Temperature Protection
Auto on/off cooling fan
High efficiency
Low temperature
LED indicator for power on
Package Contents:
1 x LED Switching Power Supply
Notes:
1. High Voltage inside ,do not remove the cover. Professional installation of qualified electrician is highly recommended.
2.This product is suitable for indoor use, non-detachable power shell. External power supply round hole mesh heat vents, in the range of 50cm within the outlet Do not place other flammable items.5 cm in the product range not place other items, to ensure that the powersupply has good thermal environment, to ensure safety.
3.Before electricity use, carefully verify the power link is correct, rigorous power lines reversed.
4.Please accurately calculate the load power, do not overload.The 150W maximum rating for this LED driver must not be exceeded.
5.IN-DOOR USE ONLY!
