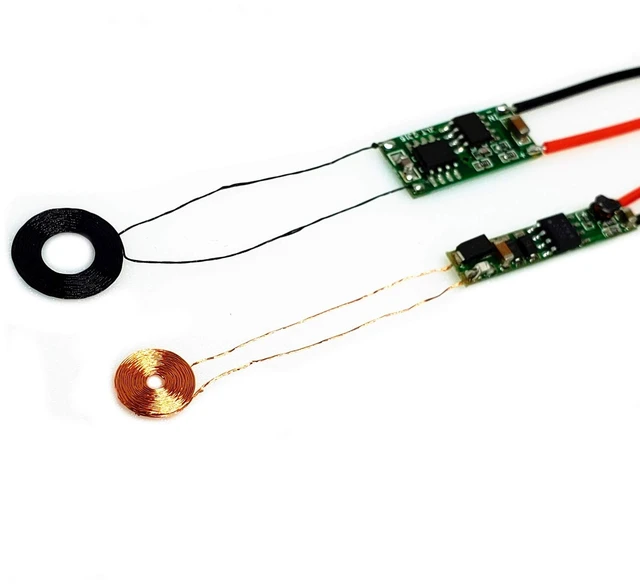

Wireless Charging 8.7mm Coil 300mA Power Charger 5V Output (8.7mm Coil 300mA)

Wireless Charging Power Supply Module Inductive Charger

Main parameters of the module:

Input voltage: 5V~12V;

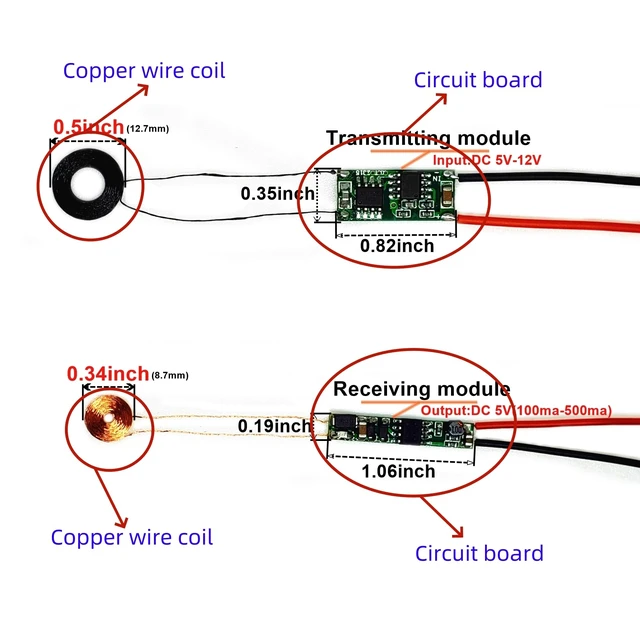

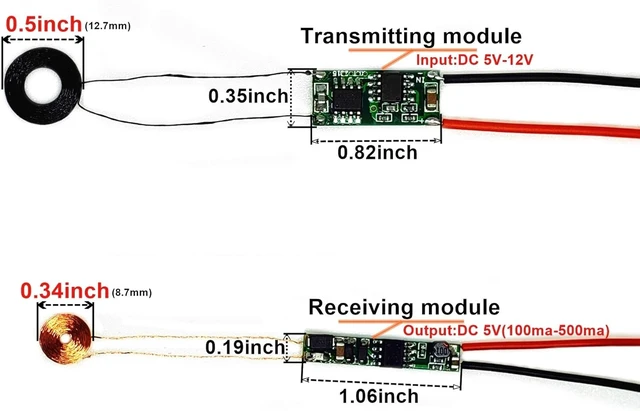

Transmitter module Dimensions: Length 21mm * wide 10 mm * 2.2mm high;

Transmitting coil: outer diameter 12.7mm, inductance 3.9uH;

Receiver Module dimensions: length 24mm * width 10 mm * height 2mm;

Receiving coil: outer diameter 8.7mm inductance 3.7uH;

Distance between transmitting coil and receiving coil:

Receive and output 5V100mA at 4mm

Receive and output 5V150A at 3mm

Receive and output 5V300A at 2mm

Receive and output 5V500mA at 1mm.

Caution:

1. Do not place the transmitter module input power positive and negative reversed.

2. Do not place the receiver module output load line positive and negative short-circuit.

3. Do not place a large area of the metal near the coil periphery.

4. Only two non-metallic materials can be penetrated between the two coils for power transmission.

Package Included:

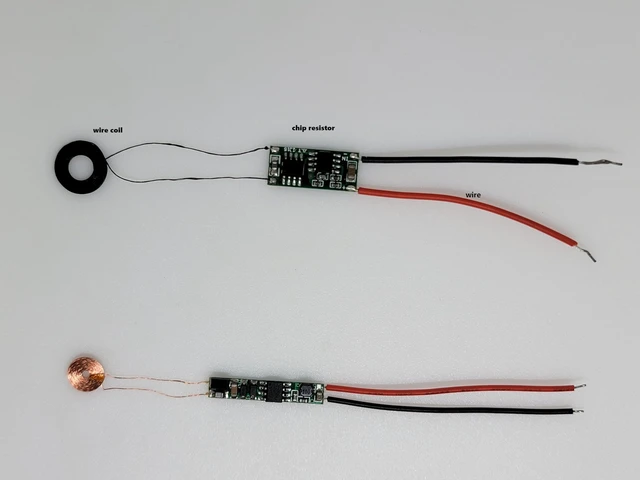

1x Charging Transmitter + Receiver Power Supply Module
