DB25 Boot Bench V4 Pinout Cable for SM2 PRO J2534 VCI ECU Read and Write Diagnostic Cable with 3 LED Lights ON/OFF and AUTO Modes Integrated Ignition Switch External Power Required

Product Description:

This DB25 Boot/Bench pinout cable is designed for SM2 PRO J2534 VCI systems to support ECU read and write operations through a bench connection. It provides power indication, power management, and ignition signal control during bench testing.

Core Selling Points:

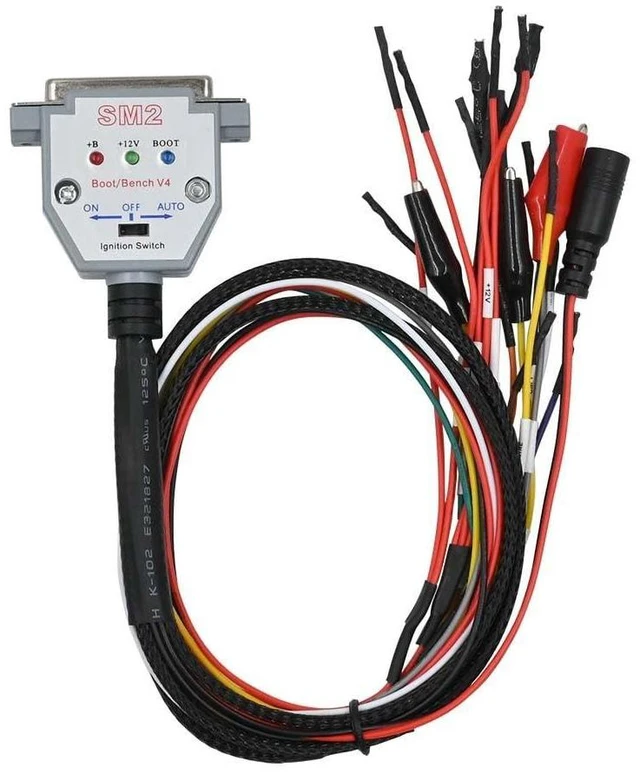

Three integrated LED lights provide clear operating status: green for main power, red for ACC power supply, and blue for Boot/CNF1 power supply. The Boot/Bench V4 pinout supports ECU diagnostics and programming on the test bench. ON/OFF and AUTO modes, together with the integrated ignition switch, support flexible testing configurations. The complete wiring harness with multiple connectors supports ECU system analysis and programming.

Technical Specifications:

Product type: DB25 Boot/Bench pinout cable. Application: SM2 PRO J2534 VCI systems. Function: ECU read and write operations. Pinout: Boot/Bench V4. LED indicators: 3. Green LED: main power. Red LED: ACC power supply. Blue LED: Boot/CNF1 power supply. Operating modes: ON/OFF and AUTO. Connection: DB25 bench connection. An external power source is required for operation.

Before Purchase:

Confirm that your equipment is an SM2 PRO J2534 VCI system with a DB25 bench connection and supports the Boot/Bench V4 pinout. An external power source is required to operate the cable. Check that the required ECU read and write, ignition, and power supply functions match your testing setup.
