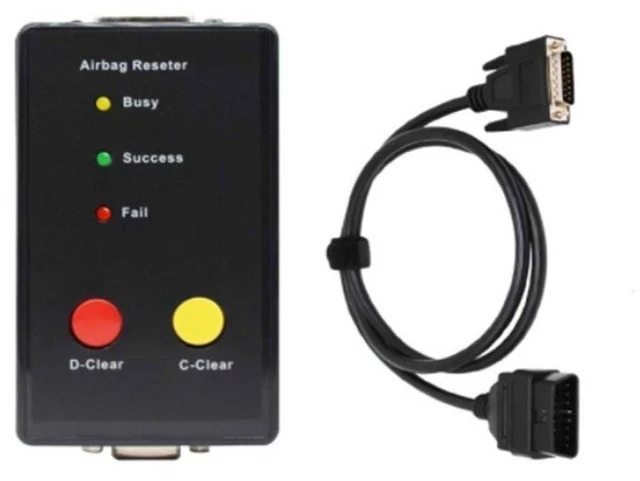

Airbag Reset Tool OBD II Diagnostic Device Airbag Sensor Crash Data Eraser Fault Memory Reset Device for 1999-2002 Sensors with HC12CPU or CR16 PLCC44 English No PC Required Red and Yellow Buttons
- English-language operation requires no additional computer; connect the tool directly to the vehicle OBD II connector for airbag service functions.
- Erases airbag sensor crash data or only the stored fault memory through the vehicles OBD II connector.

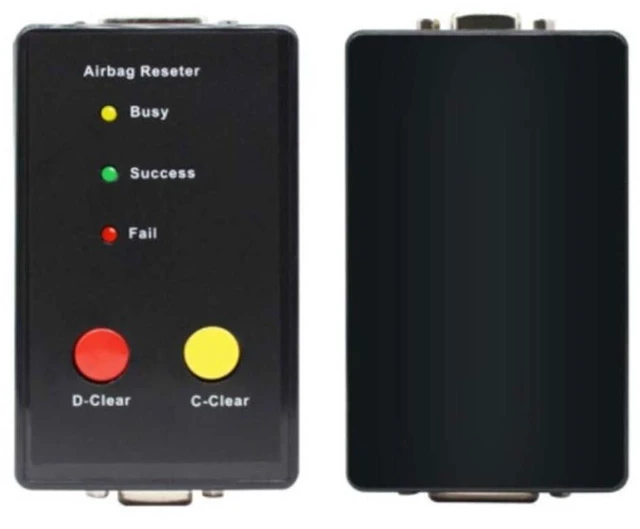

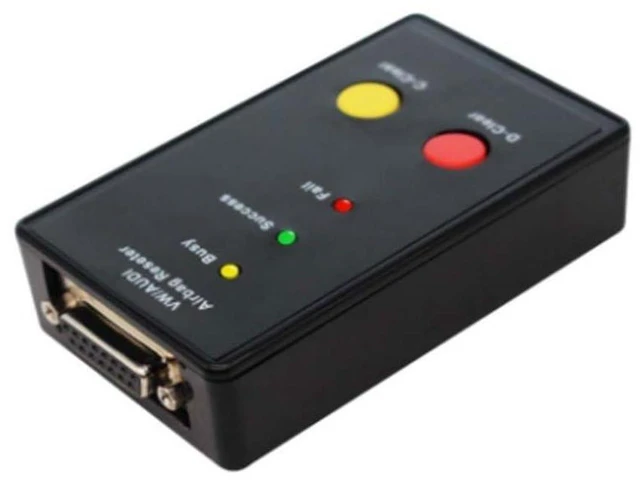

- Press the right red button once to start crash-data erasure; the yellow light flashes, and a green light confirms completion after 15 seconds.
- The red indicator turns on when crash-data erasure is unsuccessful, providing a direct status signal during the reset process.
- The left yellow button erases airbag fault memory or errors; if the warning lamp returns, further evaluation and repair are required.
- Supports 1999-2002 airbag sensors using an HC12 CPU or CR16 PLCC44, including DTC65535 controller-malfunction erasure.
- Supports airbag sensors using CR16 80QFP from the listed 2002-2005 applications, with crash-data and DTC65535 erasure support.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:
Airbag reset diagnostic tool for clearing supported airbag sensor crash data and fault memory through a vehicle OBD II connector. The tool operates in English and works without connection to an additional computer.
Core Selling Points:
The right red button is used to erase airbag crash data. After pressing it once, the yellow indicator flashes and the green indicator signals successful erasure after 15 seconds; the red indicator turns on if the process is unsuccessful. The left yellow button is used to erase airbag fault memory or errors. Supported applications include selected airbag sensors using HC12, CR16 PLCC44, and CR16 80QFP processors, with crash data and selected DTC65535 Controller Malfunction erasure.
Technical Specifications:
Language: English. Connection: Vehicle OBD II connector. Computer connection: Not required. Controls: Right red crash data erase button and left yellow fault memory erase button. Indicators: Yellow, green, and red status lights. Functions: Airbag crash data erase, airbag fault memory erase, and selected DTC65535 Controller Malfunction erase. Supported processor types include HC12, CR16 PLCC44, and CR16 80QFP. Supported examples include 4B0959655G, 4B0959655J, 4B0959655C, 8L0959655G, 4D0 959 655 J, 8D0 959 655 J, 8D0 959 655 F, 8D0 959 655 M, and 4B0959655Q. Supported sensor applications include specified units from 1994-1997, 1999, 2001-2004, and 2002-2005.
Before Purchase:
Confirm that the vehicle airbag sensor or controller matches the supported types before use. The tool cannot read fault codes or read the chip. If the yellow indicator turns on and the red failure indicator appears after connection, the connected vehicle or sensor type is not supported. If the airbag warning lamp turns off and then immediately turns on again, use separate diagnostic equipment to evaluate and repair the stored error.
