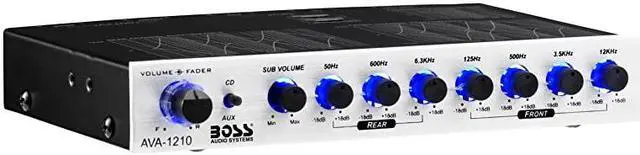

AVA1210 7 Band Pre-Amp Car Equalizer with Gold-Plated Front Rear and Subwoofer Outputs
- *****Front Adjustable EQ Band Frequencies: 125 Hz, 500 Hz, 3.5 kHz, 12 kHz
- *****Rear Adjustable EQ Bands Frequencies: 50 Hz, 600 Hz, 6.3 kHz
- *****Switchable Subwoofer Filter 32 Hz 128 Hz, Frequency Response 10 Hz 15 kHz
- *****Inputs: Dual 2 Channel Source. Outputs: Front, Rear & Sub. Fader Control
- *****Gain + / - 18 dB, Maximum Input Voltage 15 Volts, Maximum Output Voltage 8 Volts
- *****Signal to Noise Ratio > 110 dB, Channel Separation 20 dB, Total Harmonic Distortion 0.050
- *****Dimensions: Depth 4.6 x Width 7 x Height 1*****1 Year Warranty*****7 Bands*****RCA Input; Subwoofer output*****Subwoofer level control; Preamp/amplified, Preamp*****Night illumination*****Subwoofer Level Control
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Style: 7-Band Pre-Amp EQ Front panel controlsView larger InstallationView larger Installation Set your source volume at a position between 6 oclock and 9 oclock, and leave it at this setting. Always use the AVA1210 volume control as a master main volume control. It has better electronics, higher signal to noise ratio and is more linear than any source unit volume control available. If engine noise is audible, check the ground connection on all units and in the audio system. Features Volume control with up to 8 volts RMS of outputSeven band equalizer with 18 dB boost/CutSpecific bandwidth for each bandLow noise BI-FET op-amp design yields minimum distortionOn-board 30 volt BI-Polar switching power supplySubwoofer outputs and level controlsSubwoofer frequency selection switch (32Hz/64Hz/128Hz)Input selector for AUX or CDUniversal half-DIN chassis for ease of installationGold plated RCA input/output connectors20 dB headroom eliminates signal overloadBlue light illumination
Specifications Frequency bands: Front channel 125Hz, 500Hz, 3.5 kHz, 12Khz / Rear channel 50Hz, 600Hz, 6.3
kHzBoost/Cut: +/-18
dBSignal to noise ratio: 110 dB ref 1 volt inputFrequency response: 1Hz 15kHz, +/-1
dBMaximum output voltage: 8 volts RMS
Total harmonic distortion: 0.05
%Input sensitivity:
150mVHeadroom: 20
dBInput impedance: 10k
OhmsStereo separation: 82
dB/1kHzOperating voltage: 11-15
volts negative groundOutput impedance: 50k
OhmsDimensions: 1 x 7 x 4-9/16 / 27.5 mm x 178mm x 115mm
Specifications Frequency bands: Front channel 125Hz, 500Hz, 3.5 kHz, 12Khz / Rear channel 50Hz, 600Hz, 6.3
kHzBoost/Cut: +/-18
dBSignal to noise ratio: 110 dB ref 1 volt inputFrequency response: 1Hz 15kHz, +/-1
dBMaximum output voltage: 8 volts RMS
Total harmonic distortion: 0.05
%Input sensitivity:
150mVHeadroom: 20
dBInput impedance: 10k
OhmsStereo separation: 82
dB/1kHzOperating voltage: 11-15
volts negative groundOutput impedance: 50k
OhmsDimensions: 1 x 7 x 4-9/16 / 27.5 mm x 178mm x 115mm
