Car Vehicle Mini GPS Tracker Locator Tracking System Device Motorbike Waterproof

Features:
This GPS Tracker is Mini Waterproof Tracker and easy to use with ACC detect ignition, the Quality and Stability are better.
Before you using the online platform, please set the server IP, Port, and APN (Acess Point Name) of your SIM card by SMS command.
The Mini GPS Tracker have ACC detect ignition (orange wire), if you dont need it, then disconnect orange, the tracker still works.
Tracking Device Real Time by Software and APP
Website/mobile APP/SMS multi-platform locate the search




Notes:

1This machine will support 2G Simcard with GPRS support. (SIM card is not included. )

2SIM fee and data fee will be charged for using this product.



Specification:
Waterproof: IP65
Color: Black
Material: ABS Plastic
Memory: 128 M

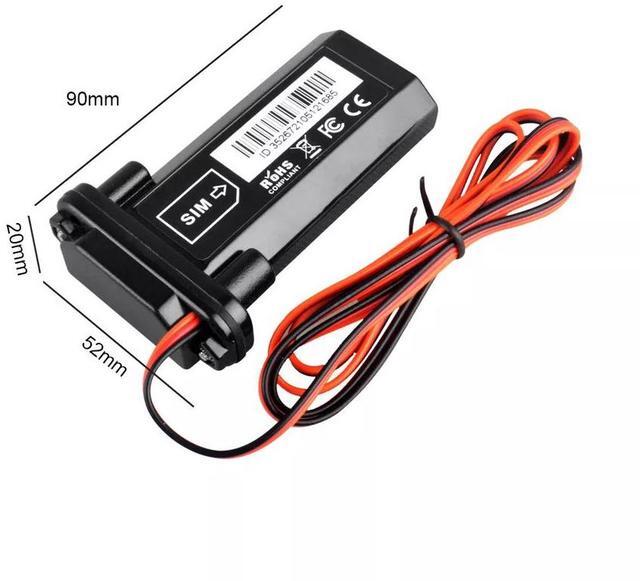

Size (L*W*H): 90 x 52 x 20 mm/ 3.54 x 2 x 0.78
Location Accuracy: 5 Meters
Operation Voltage: 9-36vDC
Operating Temperature: -20~ 55
Operating Humidity: 5% to 95% Non-condensing
GSM Quad Band GSM 850/900/1800/1900Mhz
Alarm Mode: Fence Alarm, Speeding Alarm, Mobile Alarm, Vibration Alarm, Power Failure Alarm
SIM Card: ordinary sim card (2G GSM Card) (NOT INCLUDE)


Function:
Built-in GPS vehicle locator.
Support 4-frequency GSM 850/900/1800/1900 MHz which can Work worldwide
Support track the real-time address by google link
Support GPS/Glonass/Galileo/Compass four different satellite
Support Geo-Fence Alarm
Main Power Off Alarm
Support single location
Support Over Speed Alarm
Support Low Power Alar
Waterproof
With ACC to detect ignition


Tracking Software and APP:

1. Phone APP.
Use the mobile browser to scan the two-dimensional code inside the package box, download Client End, Enter the login name(ID NO. ), Password: 123456

2. Computer platform Query.

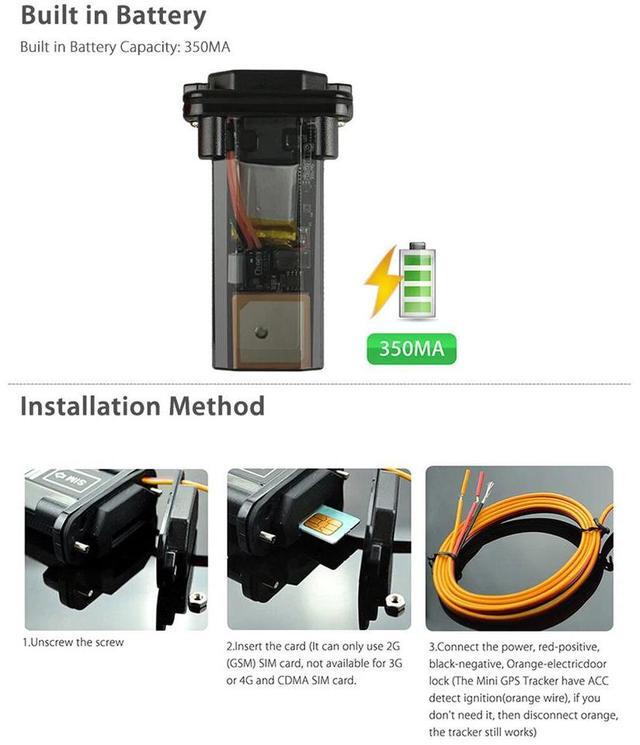

Installation Process:

Download the mobile client login.
Press the traffic card into the GPS equipment in the right direction, then put the equipment in the outdoor location. (put the card in can automatically boot and positioning, testing the positioning, and then connect the line and install it on the car)
After positioning OK connect the power line, the red line is connected to the positive electrode, the black line meets the negative electrode, the orange line is the ACC line, and connect the outlet of the electric lock, that is the position the key is inserted, connect the line When the key is opened, there is electricity and the key is off, no electricity.

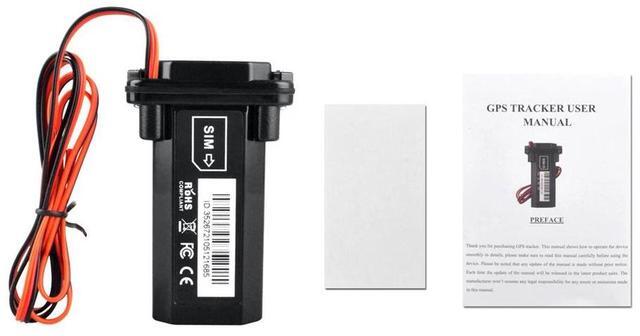

Package Included:

1 X GPS Tracker
1 X Double Sided Sticker
1 X User Manual
