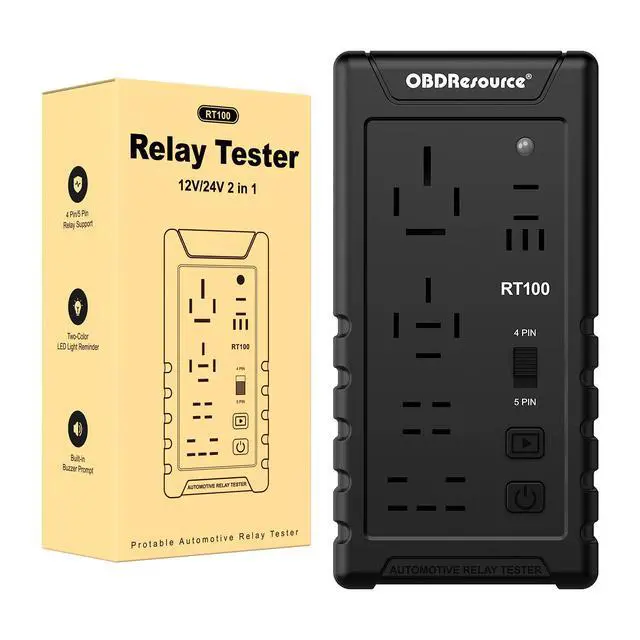

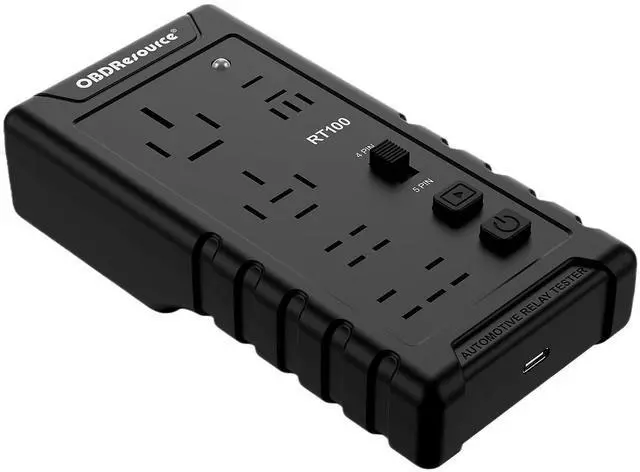

RT100 Automotive Relay Tester - Relay Detector - 12V 24V
- This device is a professional relay tester that can test 12V/24V relays at 5 different pin positions and automatically identify them to indicate the general health status and functionality of common automotive relays.
- Support two 87-pin special BMW/Mini relays
- Must meet (Control circuit: 85 connects to the negative terminal of the control signal, 86 connects to the positive terminal of the power supply (note: opposite to regular relays). Load circuit: 30 connects to the positive terminal of the power supply, 87/87A are respectively connected to the controlled equipment.)
- Application
- Two power supply options: 3 AA batteries or USB Type-C power supply are convenient to use, wireless and free from constraints, with low battery level alarm and automatic power-off for energy conservation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Automaticidentification ofrelay detection
Automatically identify 12V/24V voltage. No need toselect. Just insert and test. Easily detect relay faults.
Wirelessrestraintdetection
It can be powered by three AA batteries. There is noneed toconnect the vehicle battery with a battery clip. It can be used
and tested as needed.
Highin appearance standards, with strong capabilities, worthy ofconsideration
4-pin / 5-pin relay detection
Built-in buzzer alert
Dual-color LED lighting indication
The equipment automatically shuts down.
Technical Specifications

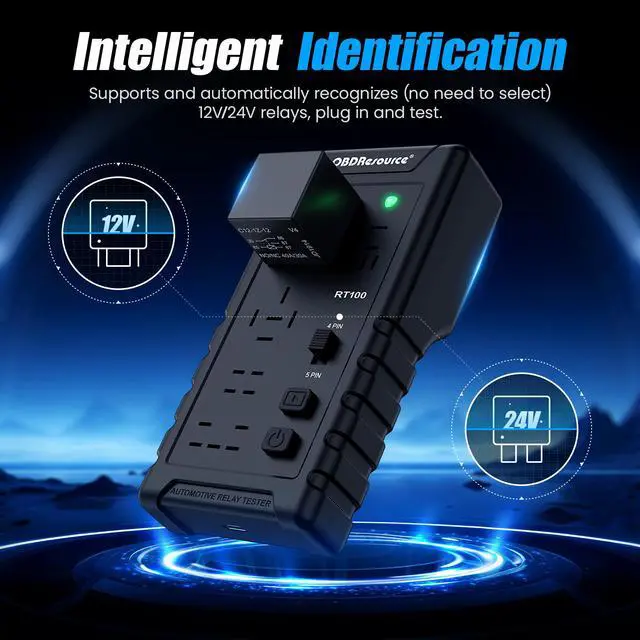

1. Intelligent Recognition: Supports and automatically identifies (without selection) 12V/24V relays, and they can be tested by simply inserting them. (Most on the market can only test 12V)

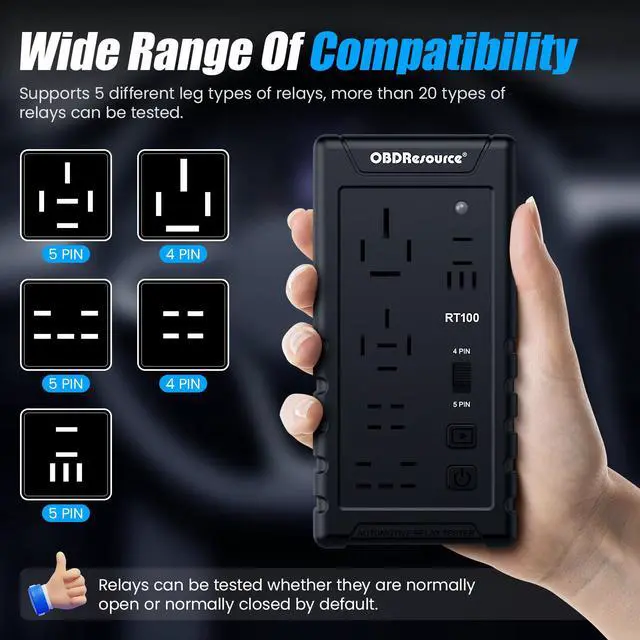

2. Wide compatibility range for relays: Supports 5 different types of relay with different pin positions, and over 20 types of relays (most similar products on the market have 4 or 3 pin positions)
3. Regardless of whether the relay is default normally open or normally closed, it can be tested. (Most market products do not have this function. It requires determining the internal circuit type of the relay)

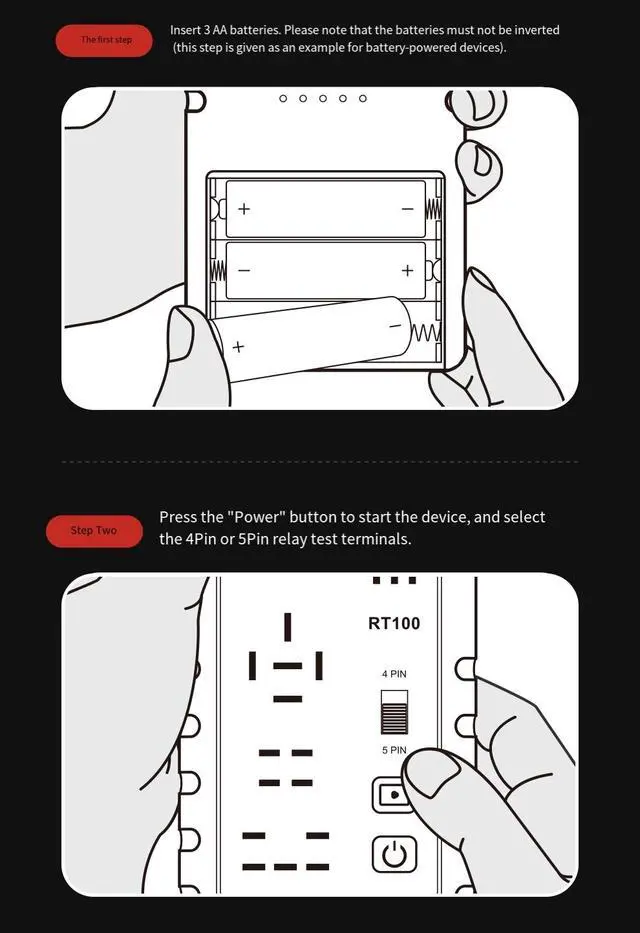

4. Battery power supply: 3 AA batteries (3pcs * AA battery) do not need to connect a battery holder for power supply, and can be used for testing as needed. (Most on the market require battery clips for power supply, and there are restrictions when using)

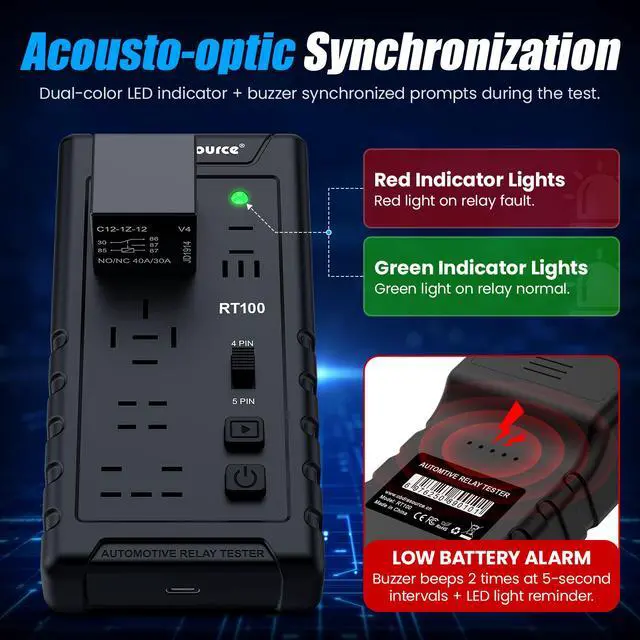

5. Efficient energy saving: Automatically shuts down (shuts down within 1 minute without operation, and does not consume power after shutdown), during the testing process, sound and light are synchronized for prompt indication (double-color LED indicator light: green, red + buzzer)
6. Thoughtful reminder: Low battery alarm (beeping twice at 5-second intervals) + LED light indication
7. Pin position switching: 4Pin / 5Pin pin position switching (the same as similar products on the market)
8. Power supply method: In addition to batteries, supports TYPEC power supply, and can use TYPE-C cables to link laptops, power banks, power adapters, etc. for power supply testing
9. Manufacturing material: Silicone spray oil process, more environmentally friendly, and better hand feel
