BX100 OBD2 Breakout Box Super - Jumper Breakout Box for ECU Programming, Stable 12V/24V Output, CAN Bus Signal Capture, Portable

Technical Specifications

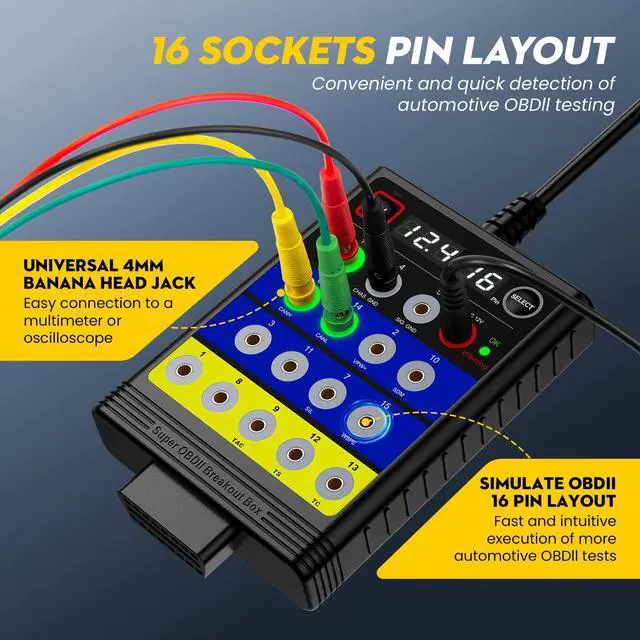

BX100 Super OBD2 Universal Jumping Wire Tester

Supports 12V/24V voltage input

2. Supports K-line and CAN-BUS signal display, as well as private protocol signal display at the terminal position.

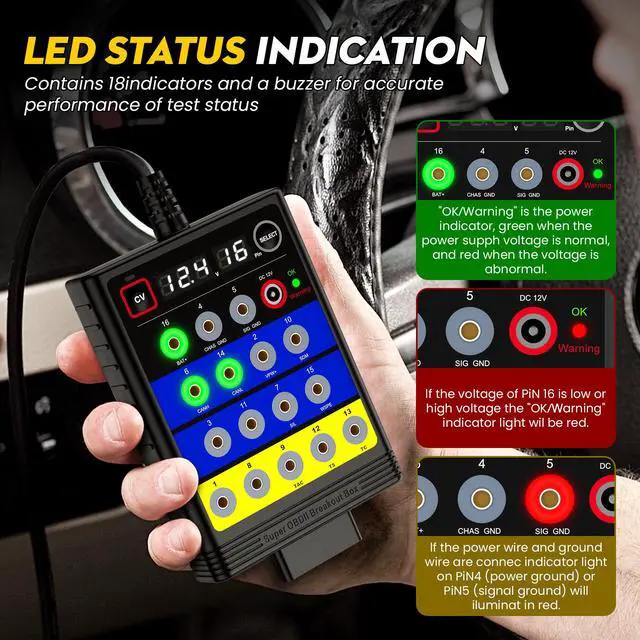

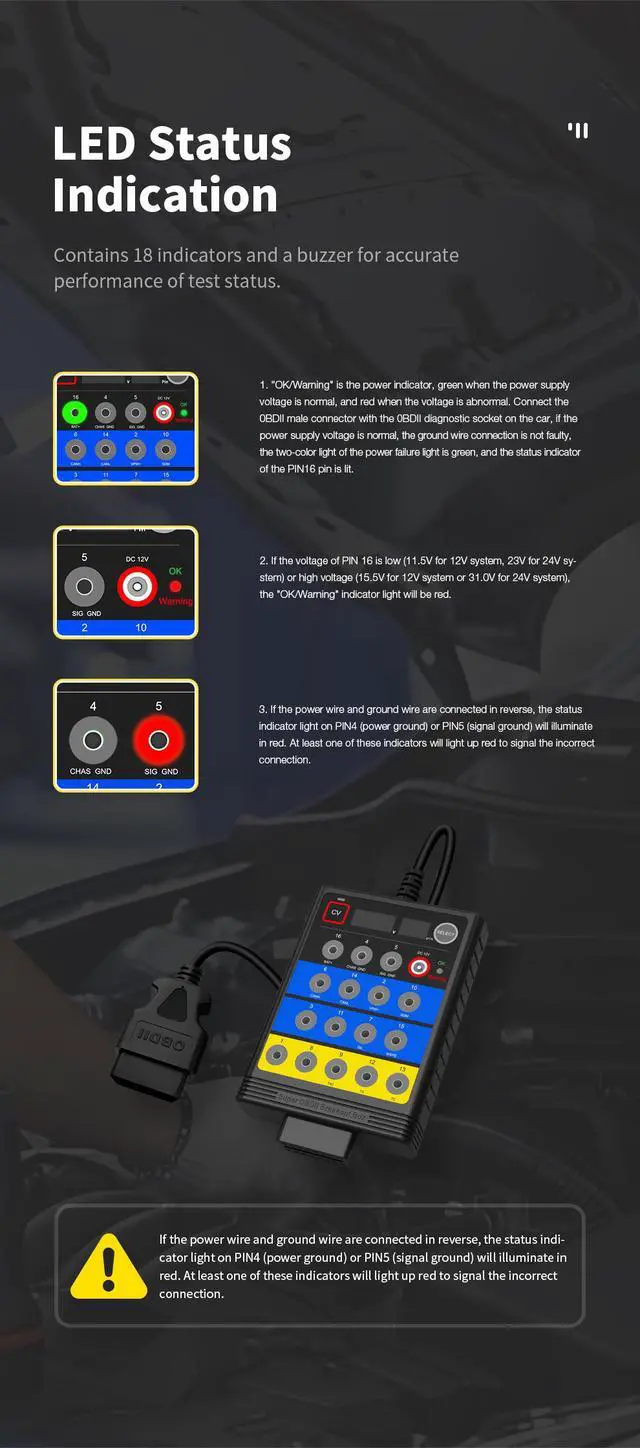

3. Supports testing for short circuits and reverse polarity (when the device is short-circuited or connected in reverse, the LED lights at positions #4 and #5 remain constantly illuminated)

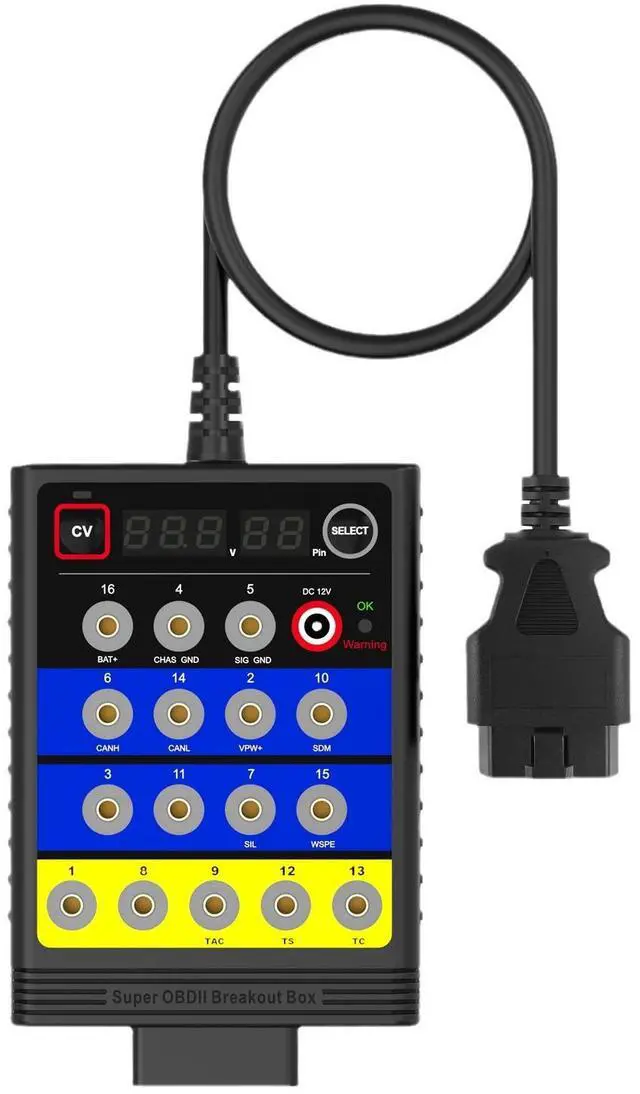

4. Support viewing the voltage value of each foot position (click the "select" button to switch foot positions, and long press to reset)

5. Overvoltage and undervoltage warnings (with buzzer alerts for both 12V and 24V)

6. Short circuit protection function support: In the event of a short circuit in the external power supply device, or when the power is supplied through jumper wires, or when there is a short circuit at the vehicle OBD port, ECU port, or decoder port.

7. Supports 4 power supply methods

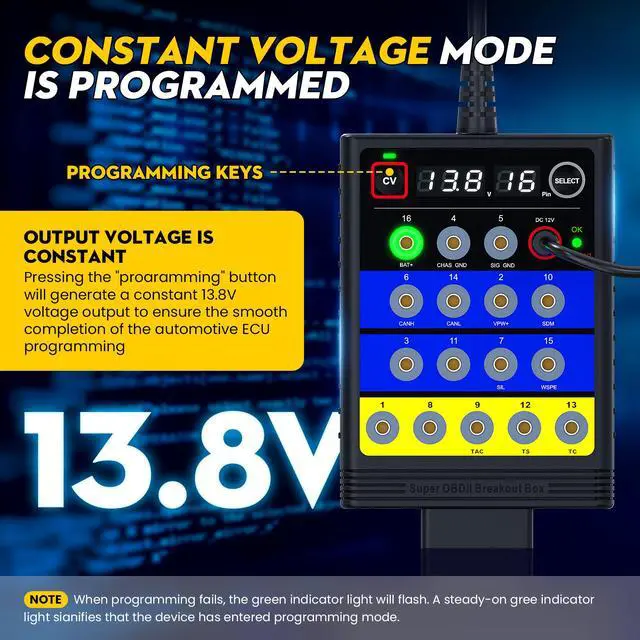

8. Programming voltage stabilization function During the programming of the vehicle ECU, a constant programming voltage can be maintained, protecting the ECU from being programmed to a dead state

9. Short-circuit protection (In the testing process, there was a short-circuit situation, and the device provided millisecond-level protection)

10. Function for continuous power supply during replacement of car battery

11. The highly illuminated signal indicator light on the foot position is clearly visible even in strong light.

Power supply range: 8V to 35V DC for the diagnostic head power supply or 12V DC 2A or 24V DC 2A power adapter
