Automobile fuel injector tester with 5V and 12V testing function, equipped with IT200 short-circuit protection that can be customized for setting. Dual voltage compatibility is available.
- Advantages
- The IT200 portable dual injector tester is a product developed by OBDResource in 2024 for testing the working condition of injector nozzles. The device sends PWM pulse signals with different preset modes to the injector nozzles, allowing for the observation of their working status, thereby determining the quality of the injector nozzles.
- Application
- The product is equipped with two types of fuel injectors: 5V and 12V. The injectors are tested by presetting the frequency and pulse values. This instrument can assist you in diagnosing injector problems. It can test the injectors one by one to help identify stuck, leaking or complete combustion conditions. It is powered by a DC socket power adapter. The continuous working mode can identify the quality of the injectors even when the engine is off. This instrument can be used in conjunction with any fuel pressure tester.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Technical Specifications
Portable Fuel Injector Tester - IT200 Product Overview

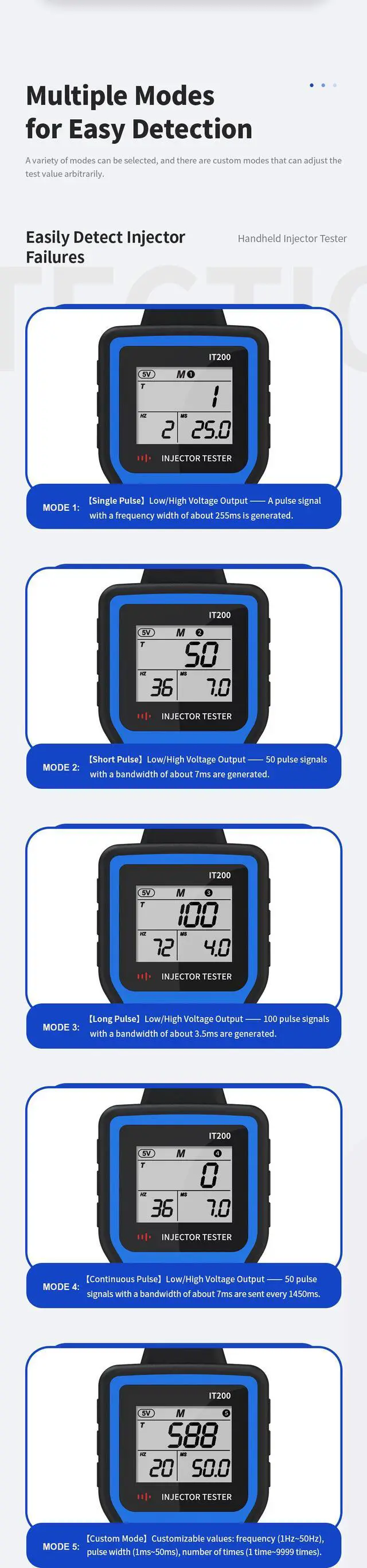

Supports 5 working modes (Modes 1 to 4 are preset modes, while Mode 5 is a custom mode [custom pulse width, frequency, and test times]).
2. Supports testing of two different voltage fuel injectors, namely 5V and 12V.
3. High-definition screen display, showing parameter information such as display frequency, pulse width, and test times. The test results are clearly visible.
4. Special plug adapter for fuel injectors (most available on the market are terminal wires, which have short lifespan) - Quality guaranteed
5. Beeper alert, indicating during the testing process
6. Input voltage range is 8V to 18V DC.
7. The output voltage supports VDC 0V to 80V
8. Current support: 0A to 8A
9. Short-circuit protection (In the testing process, there was a short-circuit situation, and the device provided millisecond-level protection)
10. Supports two power supply methods: 12V 2A power adapter supply and external car battery supply.
11. One for two. It can test two fuel injectors simultaneously, making it convenient for comparison.
