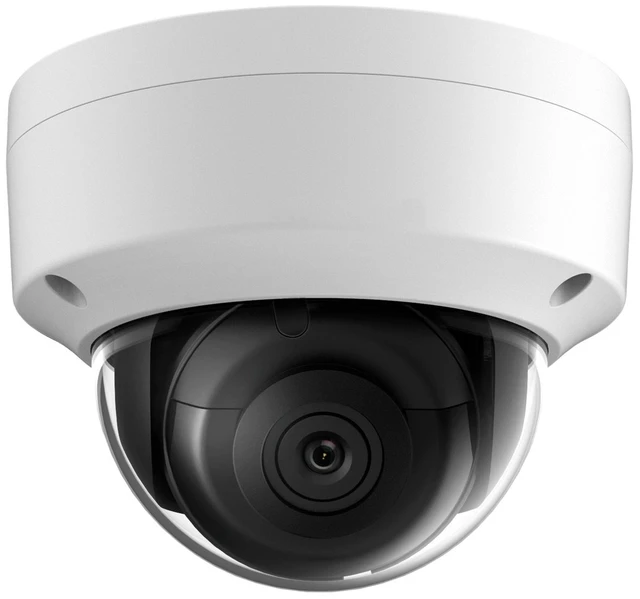

4K Outdoor WDR Fixed Dome Network Camera

Camera

Image Sensor1/2.5" Progressive Scan CMOS

Min. IlluminationColor: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR

Shutter Speed1/3 s to 1/100,000 s

Slow ShutterYes

Wide Dynamic Range120dB

Day & NightIR Cut Filter

Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

FocusFixed

Lens Type2.8/4/6/8 mm

FOV2.8 mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124°,4 mm, horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95°,6 mm, horizontal FOV: 50°, vertical FOV: 28°, diagonal FOV: 59°,8 mm, horizontal FOV: 40°, vertical FOV: 25°, diagonal FOV: 53°

ApertureF2.0

Lens MountM12

Aperture TypeFixed

Illuminator

IR RangeUp to 30 m

Wavelength850nm

Video

Max. Resolution3840 × 2160

Main Stream50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264

Video Bit Rate32 Kbps to 16 Mbps

H.264 TypeMain Profile/High Profile

H.265 TypeMain Profile

H.264+Main stream supports

H.265+Main stream supports

Scalable Video Coding (SVC)H.264 and H.265 encoding support

Audio

Environment Noise FilteringYes

Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Network

Simultaneous Live ViewUp to 6 channels

APIONVIF (PROFILE S, PROFILE G), ISAPI

ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, WebSocket, WebSockets

User/HostUp to 32 users,3 levels: Administrator, Operator and User

Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web BrowserPlug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+

Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error


Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)

Target CroppingNo

DNR3D DNR

Image EnhancementBLC/3D DNR /HLC

Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

Audio1 input (line in/mic in), 1 output (line out), terminal block, mono sound

Alarm1 input;1 output (max. 12 VDC, 30 mA), terminal block

Video OutputNo

On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB

Hardware ResetYes

Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event

Face DetectionYes

General

General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)

Power Supply12 VDC ± 25%, 5.5 mm ,PoE(802.3af, class 3)

Power Consumption and CurrentDC: 12 V, 0.6 A, max. 7.5 W,PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 9 W

Camera DimensionCamera: 111 mm × 82.4 mm ( 4.4" × 3.2"),Package: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3")

Camera WeightCamera: approx. 500 g (1.1 lb.)

Approval

ProtectionIK10, IP67
