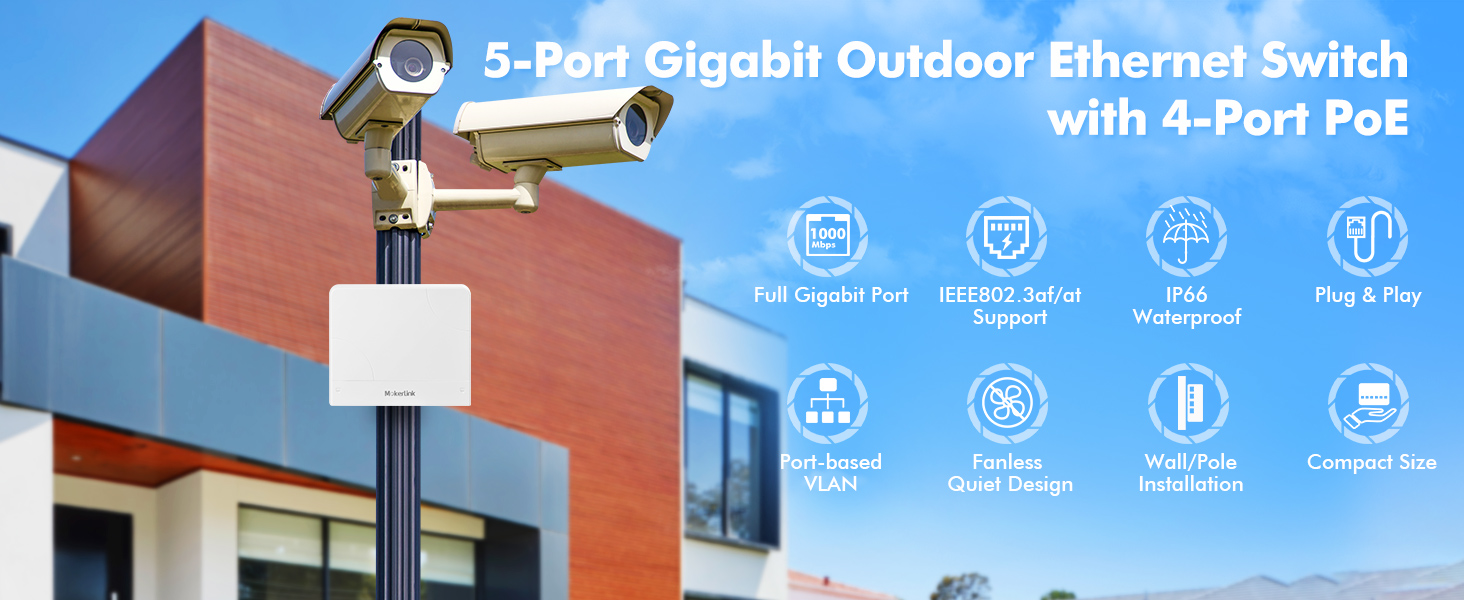

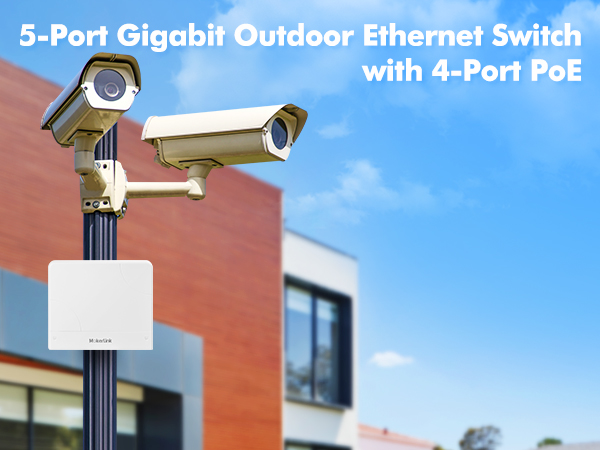

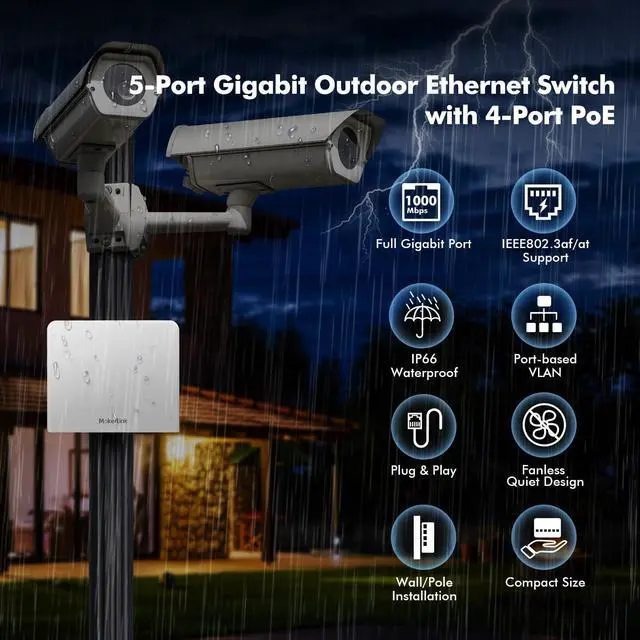

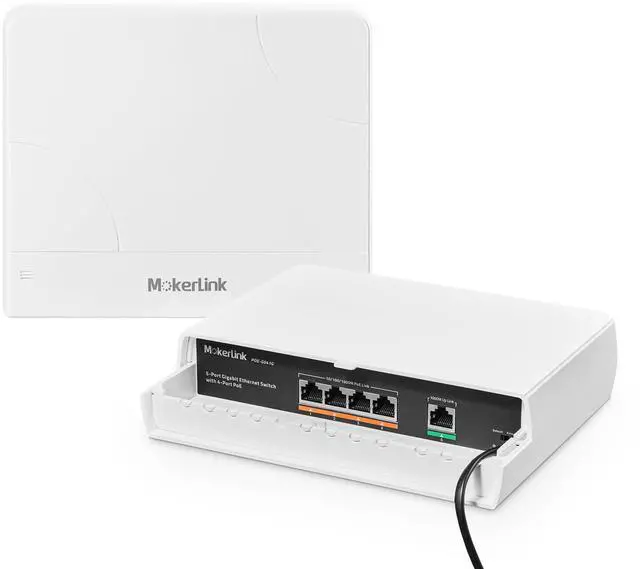

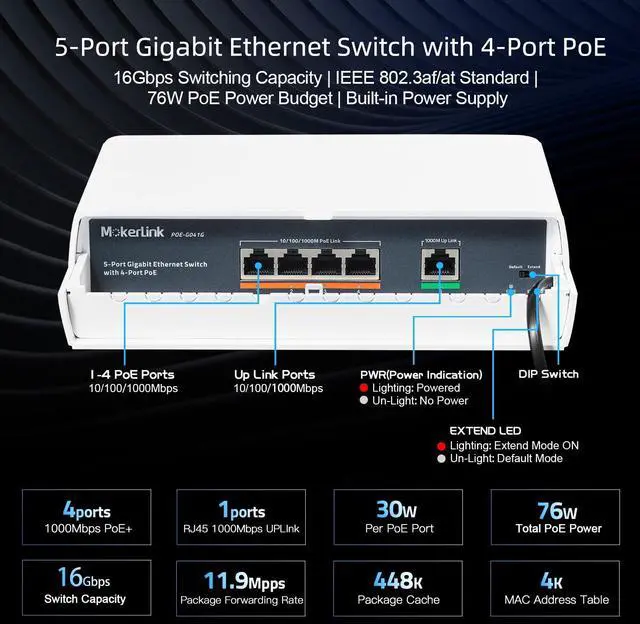

POE-G041GO is a 5-port gigabit unmanged switch with q4-port PoE. It support port isolation, Conforms to IEEE802.3af/at protocols. The enclosure is made of ABS+PC , It was designed and tested to meet an IP-66 rating as well as vibration, temperature, drop, fog, and electrical surge standards.

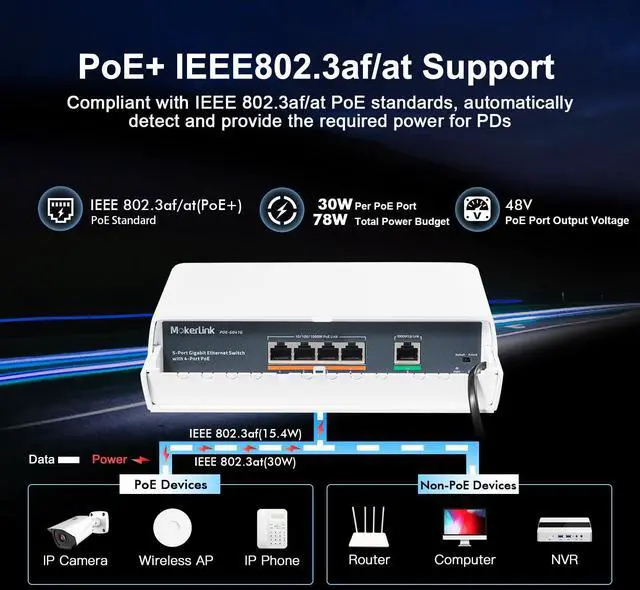

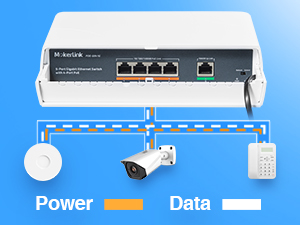

Smart PoE
The PoE port meets the IEEE 802.3af/at standard, It determines and delivers the exact power supply to your devices.

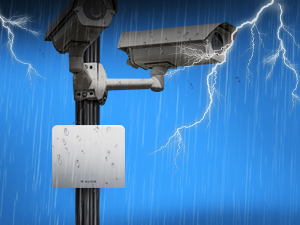

IP66 Waterproof
The PoE switch uses ABS+PC housing and supports IP66 waterproof, It designed for outdoor surveillance scenarios.

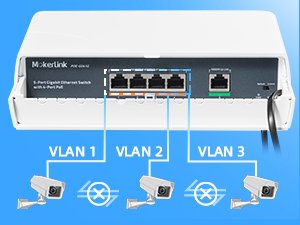

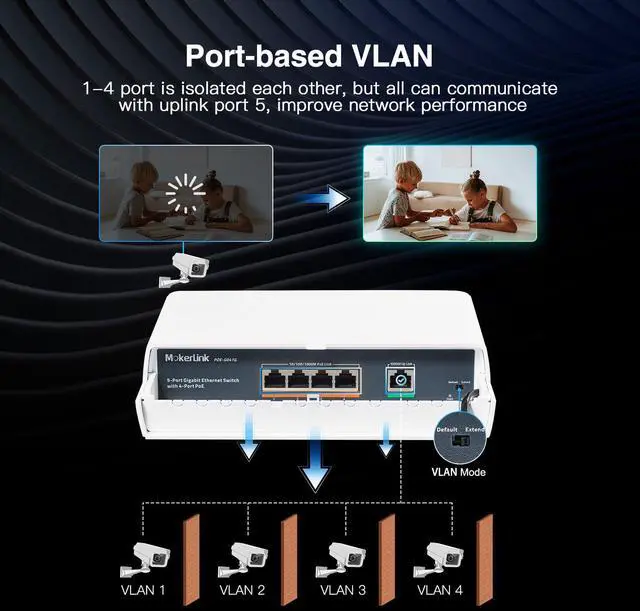

Port Isolation
Port 1-4 can be isolated with each other by dialing extend switch. prevent broadcast storms, making the network safe and easy to use.

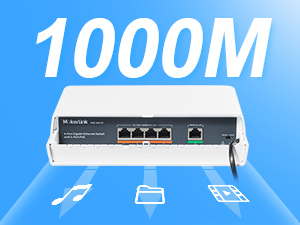

Full Gigabit Port
The outdoor PoE switch features non-blocking wire-speed architecture with 12Gbps switching capacity for maximum data throughput.

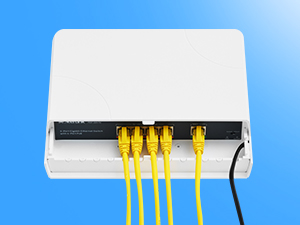

Plug and Play
No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables.

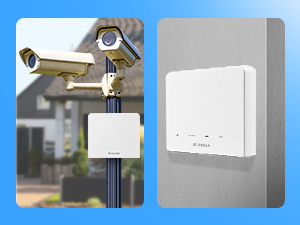

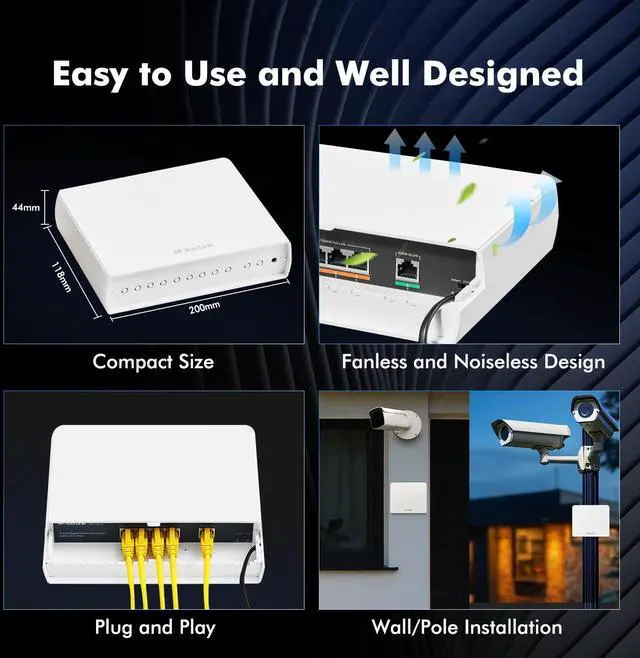

Easy installation
The outdoor PoE switch is easy to install using included tools. Support holding pole installation and wall installation.

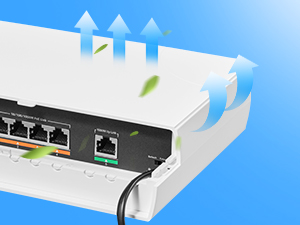

Fanless & Silent Operation
The outdoor PoE switch features with ABS+PC case and fanless design that ensures noiseless operation and greater reliability over time.

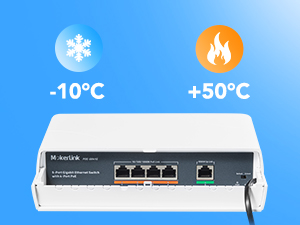

Wide Operating Temperature
Supports working at ambient temperatures of –10 °C to +50 °C, allowing the device to adapt to harsh environments.
Product Specifications
POE-G041GO is a 5-port gigabit unmanged switch with q4-port PoE. It support port isolation, Conforms to IEEE802.3af/at protocols. The enclosure is made of ABS+PC , It was designed and tested to meet an IP-66 rating as well as vibration, temperature, drop, fog, and electrical surge standards.
Smart PoE
The PoE port meets the IEEE 802.3af/at standard, It determines and delivers the exact power supply to your devices.
IP66 Waterproof
The PoE switch uses ABS+PC housing and supports IP66 waterproof, It designed for outdoor surveillance scenarios.
Port Isolation
Port 1-4 can be isolated with each other by dialing extend switch. prevent broadcast storms, making the network safe and easy to use.
Full Gigabit Port
The outdoor PoE switch features non-blocking wire-speed architecture with 12Gbps switching capacity for maximum data throughput.
Plug and Play
No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables.
Easy installation
The outdoor PoE switch is easy to install using included tools. Support holding pole installation and wall installation.
Fanless & Silent Operation
The outdoor PoE switch features with ABS+PC case and fanless design that ensures noiseless operation and greater reliability over time.
Wide Operating Temperature
Supports working at ambient temperatures of –10 °C to +50 °C, allowing the device to adapt to harsh environments.
Product Specifications
| Model | POE-G041GO |
|---|---|
| Ethernet | 4 x 10/100/1000Mbps PoE Ports + 1 x 10/100/1000Mbps Uplink Ports |
| Bandwidth | 12Gbps |
| Pack forward rate | 8.92Mpps |
| MAC address | 2k |
| Network Protocol | IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3ab (1000Base-TX), IEEE802.3x (Flow control) |
| PoE Protocol | IEEE802.3af(15.4W), IEEE802.3at(30W) |
| Network Medium | 10Base-T : Cat3, 4, 5 or above UTP(=100m), 100Base-TX : Cat5 or above UTP(=100m, 1000Base-TX : Cat5 or above UTP(=100m) |
| Working Environment | Working Temperature: -10~50°C, , Storage Temperature: -40~70° C Working Humidity: 10%~90%, non-condensing, Storage Temperature: 5%~90%, non-condensing |
| Indicator | PWR (Power), 1-5 Green Light (Link&Data), PWR On: Powered on, Off: Powered off. |
| Casing | ABS plastic |
| Structure Size | Product Dimensions: 200*118*44mm, Package Dimensions: 230*190*70mm, Product N.W: 0.65kg, Product G.W: 0.9kg |
| Power Voltage | Input voltage :AC100-240V, Power supply: 52V / 1.5A (78W) |
| Packing List | Switch 1 PC, Power cord 1 PC, User manual 1 PC |
