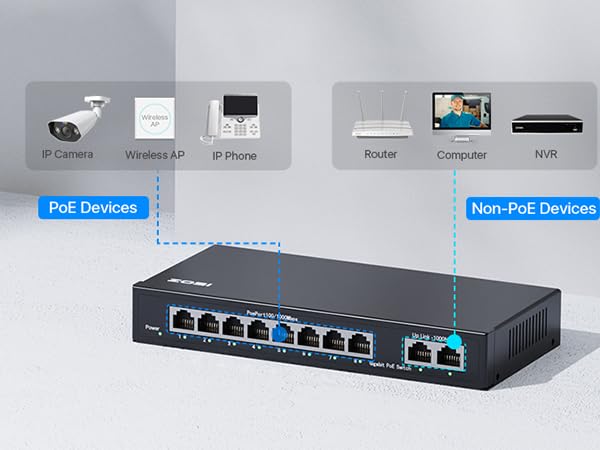

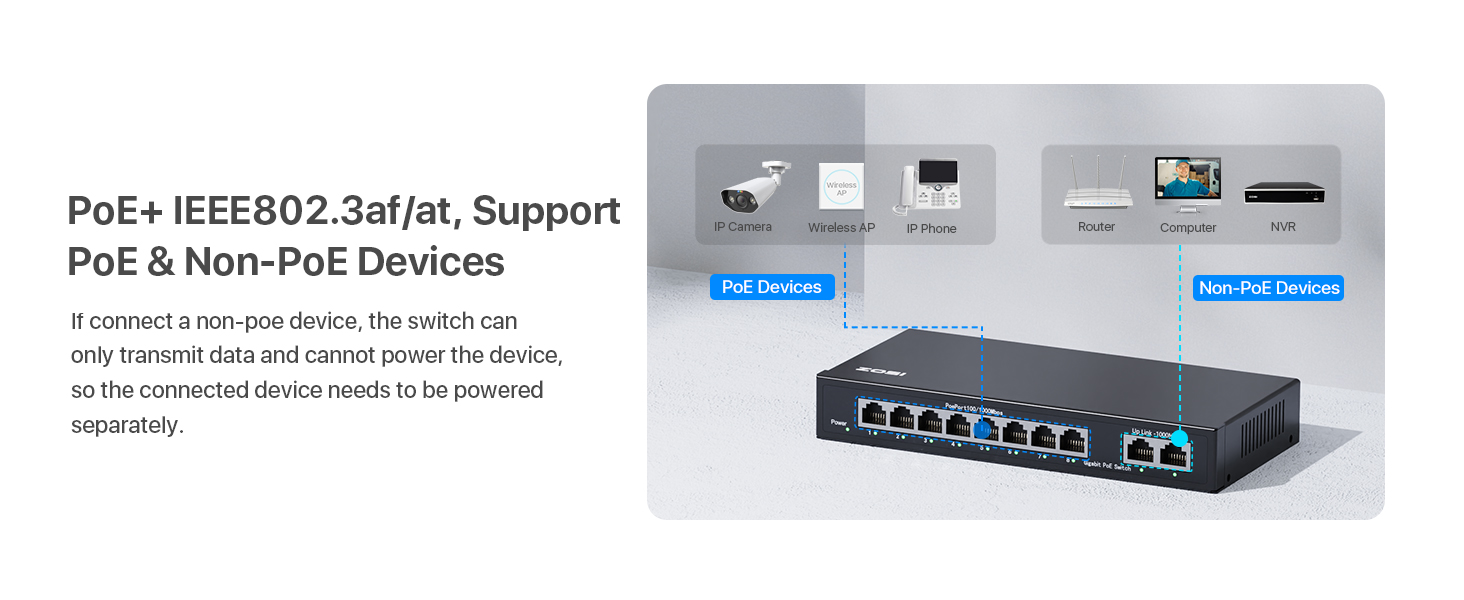

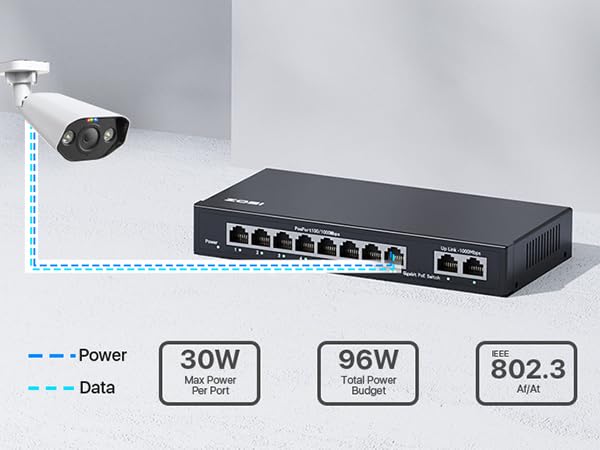

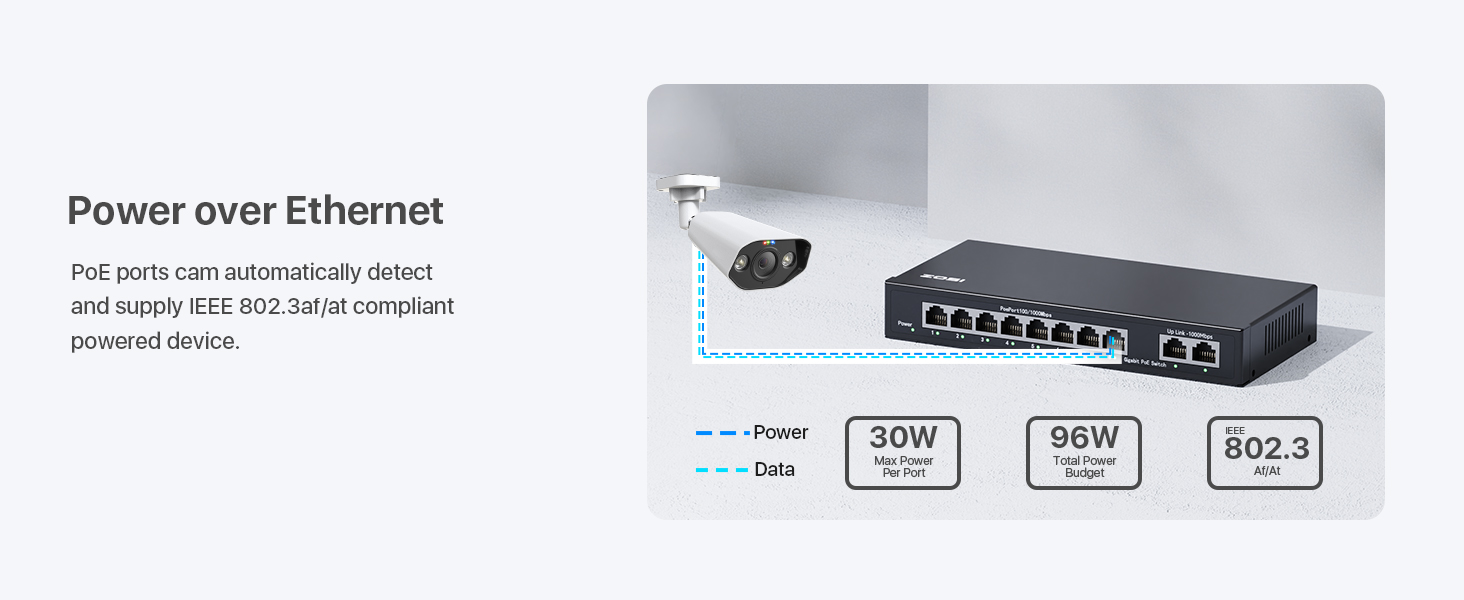

Power over Ethernet

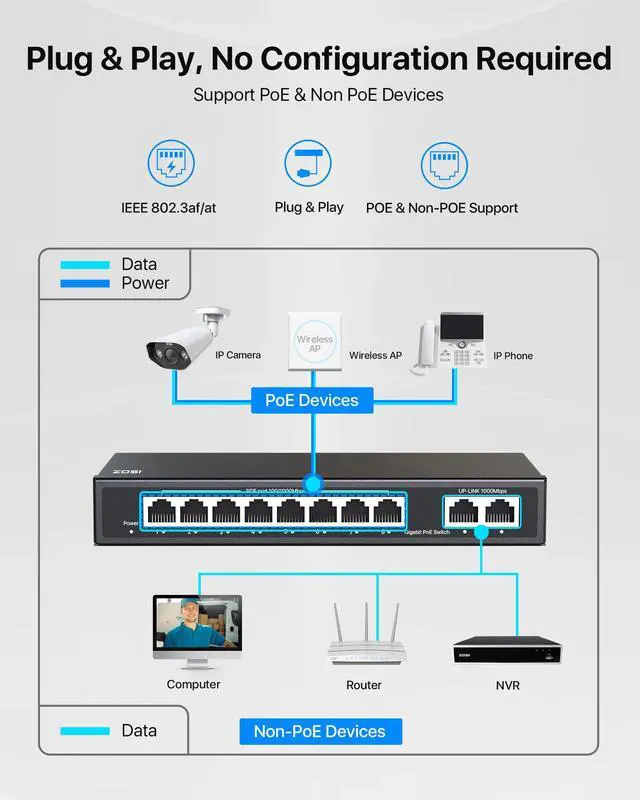

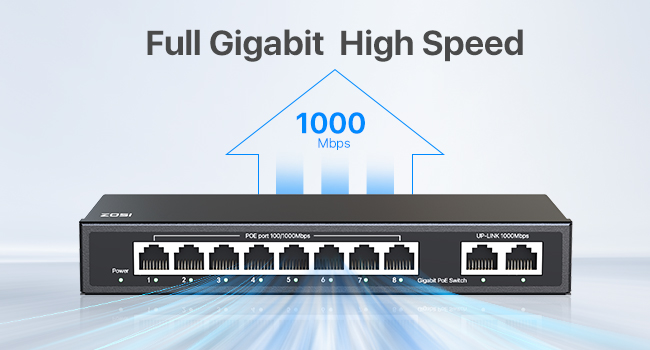

Boost your network with a 10-port PoE switch: 8 PoE+ ports (10/100/1000 Mbps) and 2 high-speed Ethernet uplink ports (10/100/1000 Mbps), offering 1000Mbps transmission for high-speed connectivity and efficient data transfer.

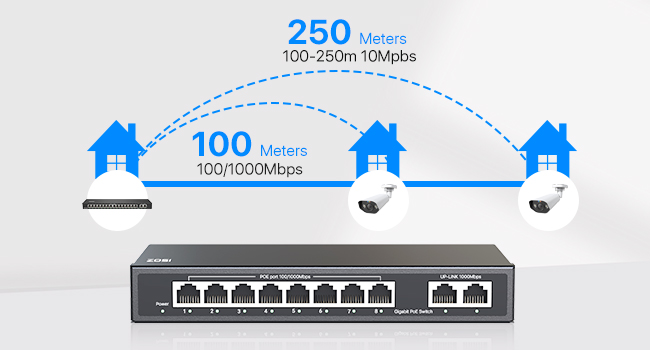

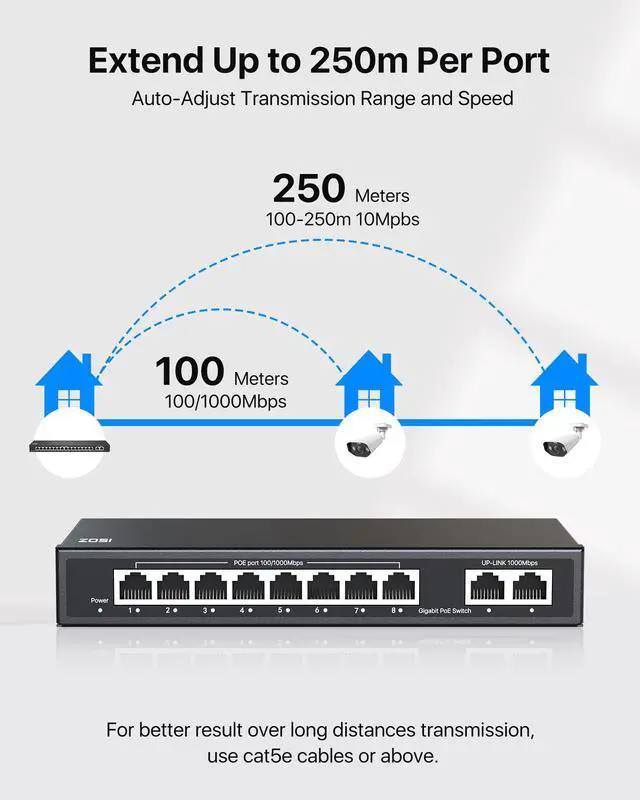

Long-Distance Transmission: Up to 250 Meters
Extend data and power up to 250 meters (820 ft) with ZOSI 8-port gigabit PoE switch. It automatically adjusts transmission rates for long distances, reducing speed to 10 Mbps. For optimal performance, use Cat5e cables or higher.
Specification
ZOSI Security Camera Series for You Choose
 C186 PoE Camera System |  8*4K PoE Camera System |  8*4K PoE Camera System |  12*4K PoE Camera System |  16*4K PoE Camera System |  32*4K PoE Camera System |  32*4K PoE Camera System | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Resolution | 4K | 4K | 4K | 4K | 4K | 4K | 4K |
Cameras | 8MP PoE camera * 4 | 4K PoE camera*8 | 4K PoE camera*8 | 4K PoE camera*12 | 4K PoE camera*16 | 4K PoE camera*32 | 4K PoE camera*32 |
DVR / NVR | 8CH PoE NVR | 4K 16CH PoE NVR | 4K 16CH PoE NVR | 4K 16CH PoE NVR | 4K 16CH PoE NVR | 4K 32CH PoE NVR | 4K 32CH PoE NVR |
Two-Way Audio/Video | Two-Way Audio | Two-Way Audio | Two-Way Audio | Two-Way Audio | Two-Way Audio | Two-Way Audio | Two-Way Audio |
Motion Detection | ? | ? | ? | ? | ? | ? | ? |
Wired Add on Security Camera
ZOSI Wired Security System
ZOSI PoE Security System
ZOSI PoE Security System
32CH PoE Camera System
ZOSI started in 2012, is an industry-leading company in security cameras and security-centric solutions. Today we have millions of customers across more than 60 countries and regions. We provide after-sales support and services to all of our customers around the world.
With product design, R&D, manufacturing, sales, and service in one, ZOSI is committed to bringing our customers 24/7 all-round protection anywhere.
ZOSI WiFi Camera
Power over Ethernet
Boost your network with a 10-port PoE switch: 8 PoE+ ports (10/100/1000 Mbps) and 2 high-speed Ethernet uplink ports (10/100/1000 Mbps), offering 1000Mbps transmission for high-speed connectivity and efficient data transfer.
Long-Distance Transmission: Up to 250 Meters
Extend data and power up to 250 meters (820 ft) with ZOSI 8-port gigabit PoE switch. It automatically adjusts transmission rates for long distances, reducing speed to 10 Mbps. For optimal performance, use Cat5e cables or higher.
Specification

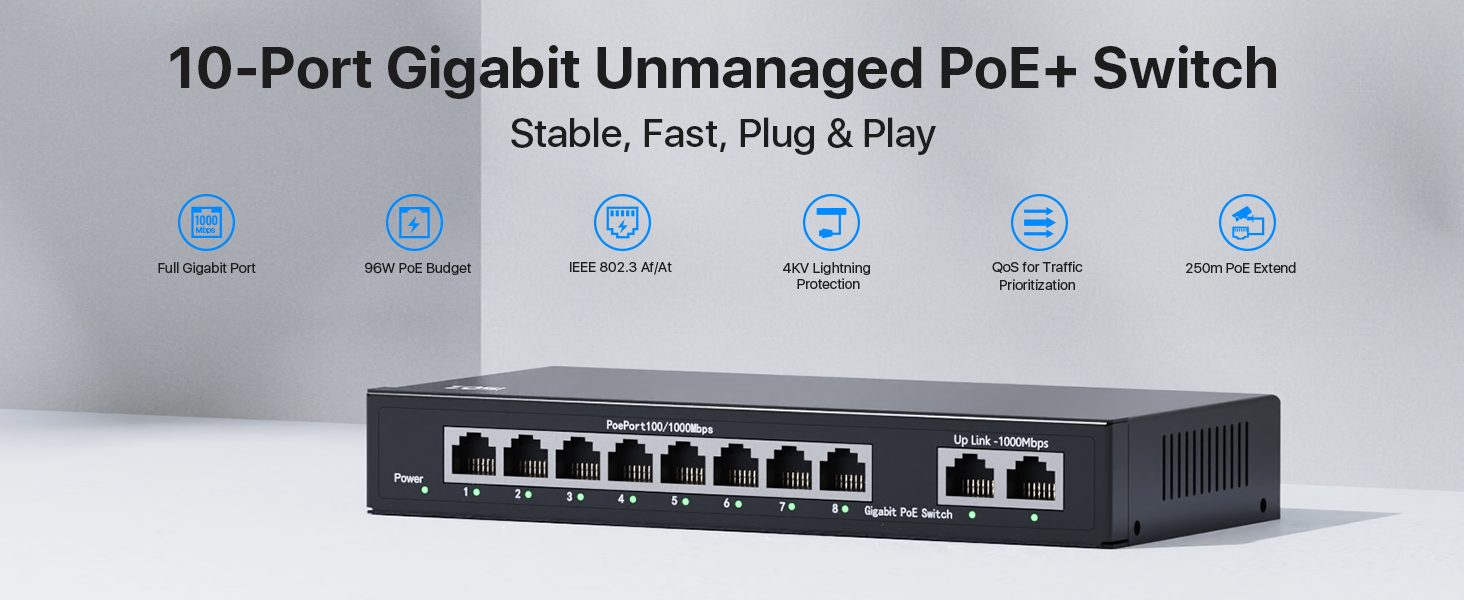

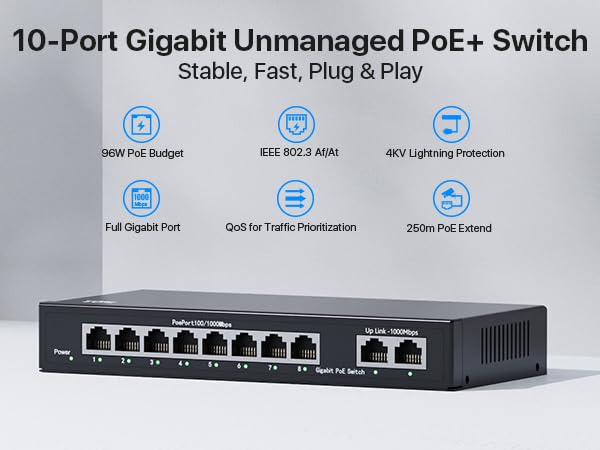

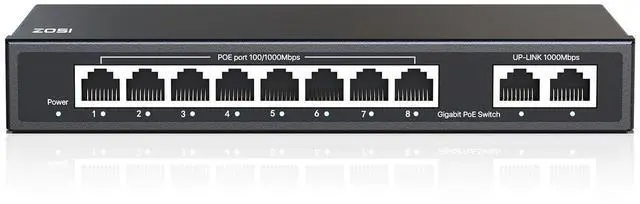

| Product Name | 10 Port Gigabit Unmanaged PoE Switch |
|---|---|

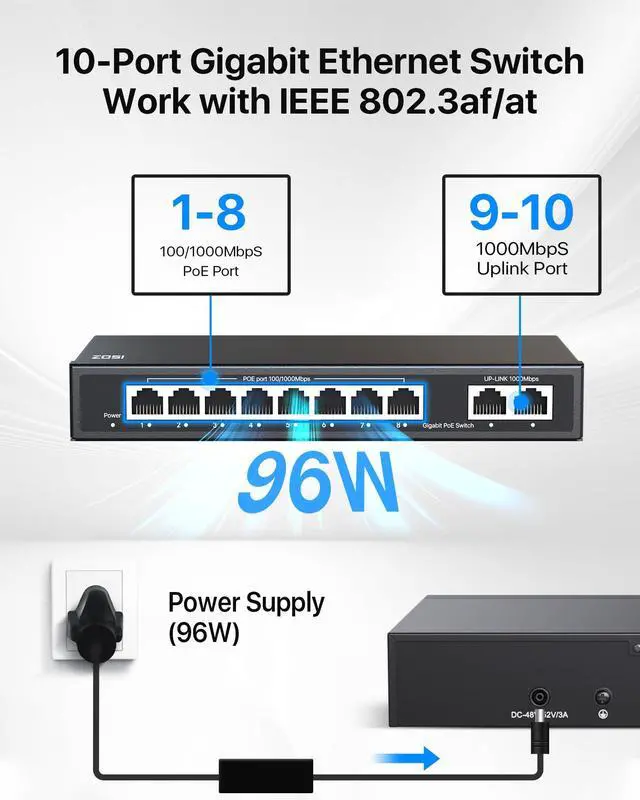

| Port | 8*10/100/1000Mbps PoE Port + 2*1000Mbps Uplink Port |
| PoE Port Power | 30W Max for each(96W for total) |
| Protocol | IEEE802.3, IEEE 802.3af/at, IEEE 802.3az, IEEE802.3x |
| Transmission Rate | Ethernet: 10Mbit/s (Full Duplex); Fast Ethernet: 100Mbit/s (Full Duplex); Gigabit Ethernet: 1000Mbit/s (Full Duplex) |
| Network Media | 10BASE-Te UTP category 3, 4, 5 cable (Maximum 100m); 100BASE-TX UTP category 5, 5e cable (Maximum 100m); 1000BASE-T UTP category 5, 5e, 6 or above cable (Maximum 100m) |
| Switching Capacity | 20Gbps, Store-and-Forward |
| Mac Address | 2K, Auto-Learning |
| Packet Forwarding Rate | 14.8Mpps (64-byte packet size) |
| SRAM | 128kb |
| Jumbo Frames | 9kb |
| External Power Supply | External Power Adapter (Output:DC 48V/2A) |

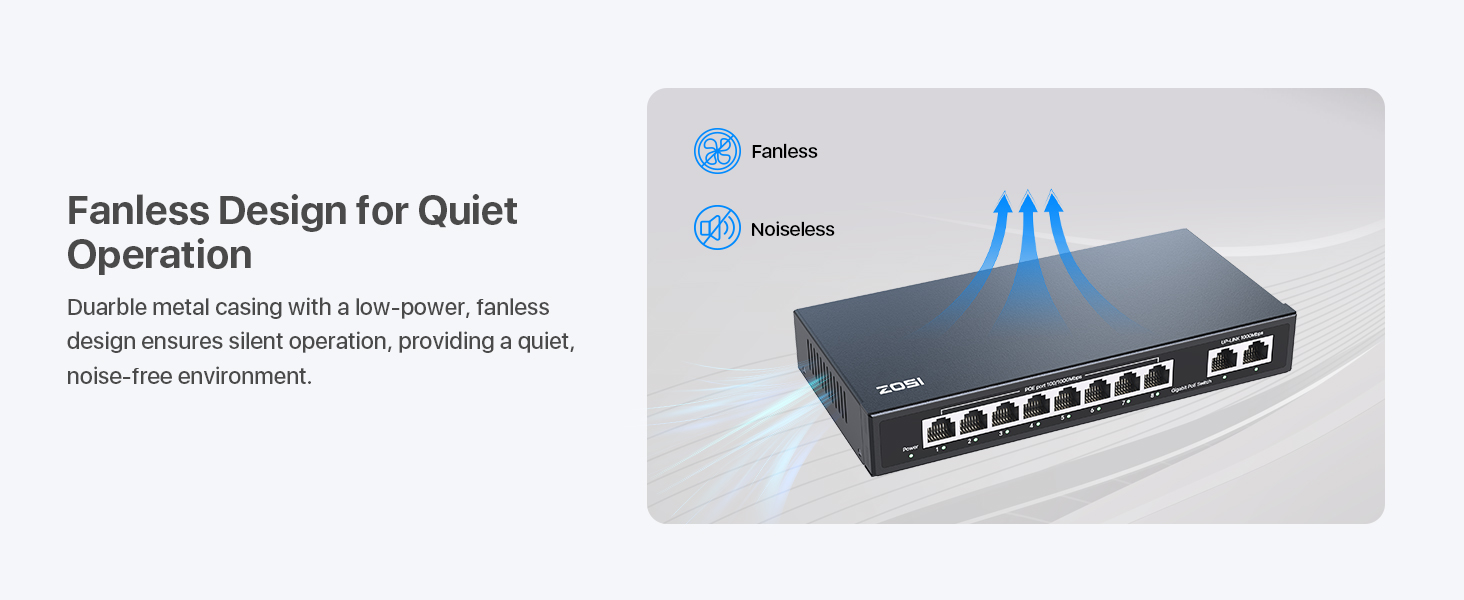

| Casing | Sturdy metal casing |

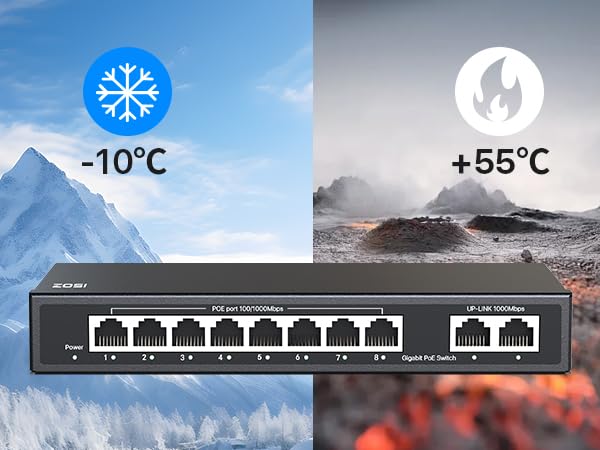

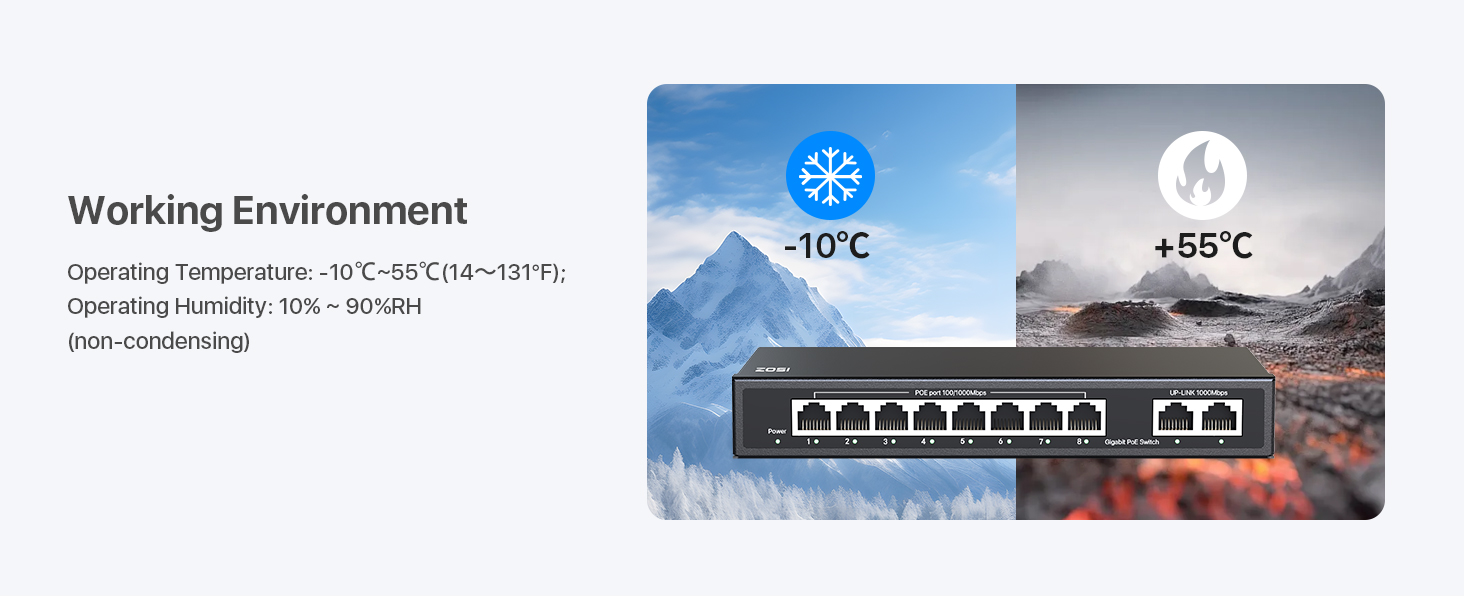

| Work Environment | Operating Temperature: -10?~55?(14~131°F); Operating Humidity: 10% ~ 90%RH(non-condensing) |
| Weight | Net Weight: 0.96lb(0.44KG), Gross Weight: 2.4lb(1.09KG) |

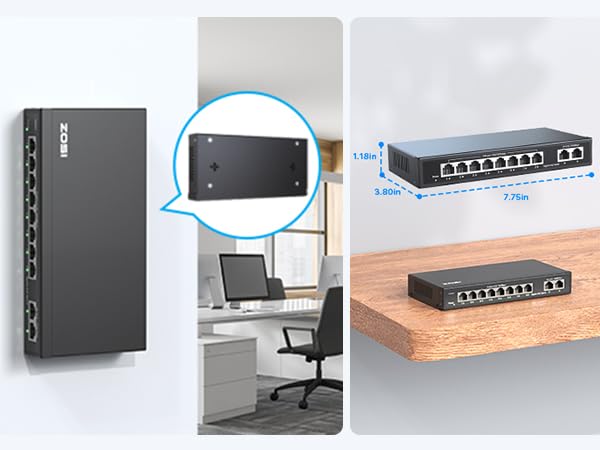

| Dimensions (W×D×H) | Product Size: 7.75*3.8*1.18 in(197*96.5*30mm), Package Size: 8.94*8.15*2.64 in(227*207*67mm) |
