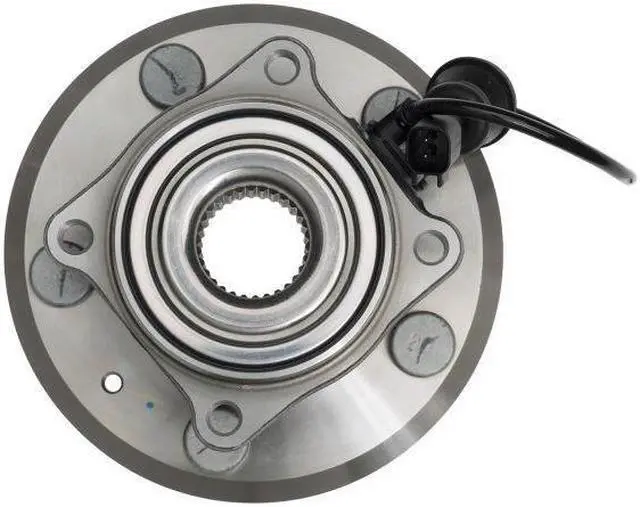

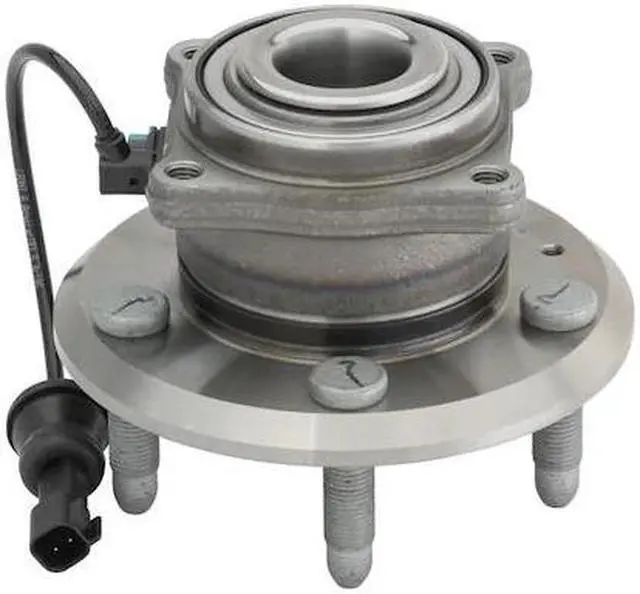

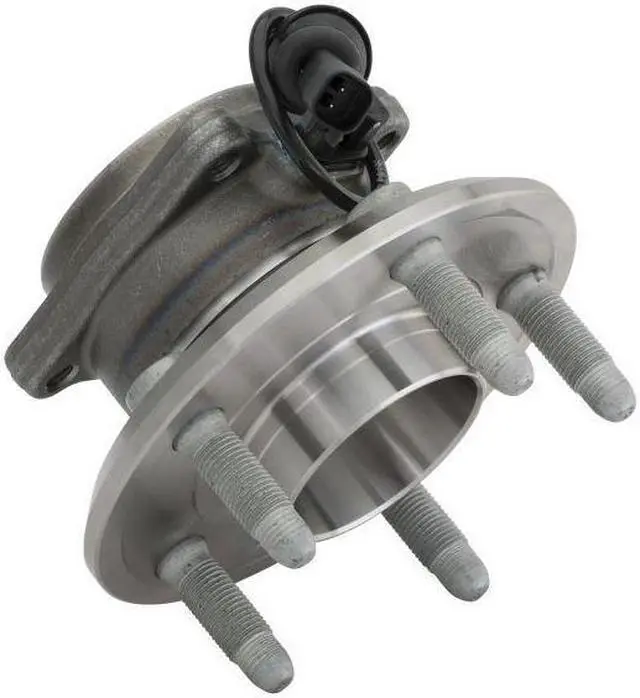

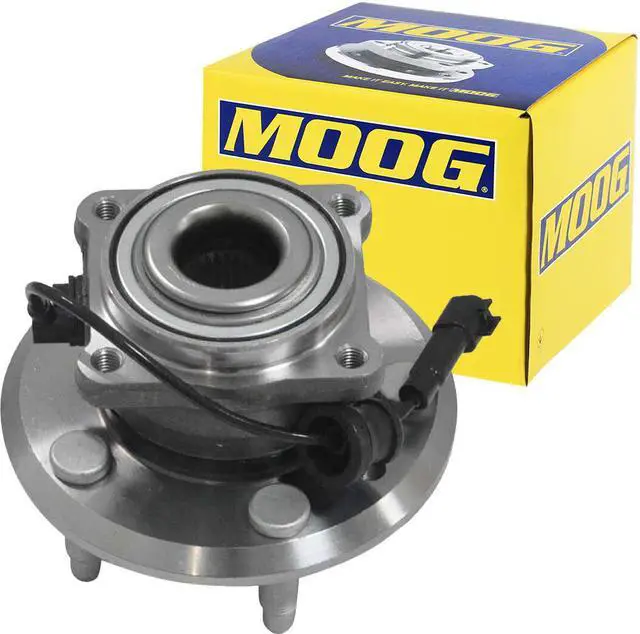

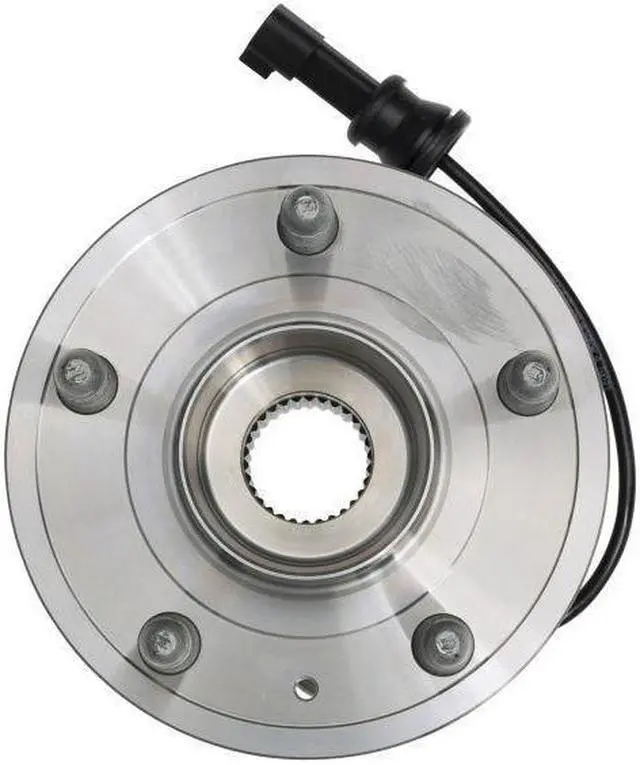

MOOG For 2010 -2017 Chevy Equinox GMC Terrain Rear Wheel Bearing & Hub 5Lug
- MOOG For 2010 -2017 Chevy Equinox GMC Terrain Rear Wheel Bearing & Hub 5Lug
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
Position:Driver(LH Left) or Passenger(RH Right) Side Rear
ABS Sensor Included: Yes
ABS Connector Shape: Square
Wiring Harness Included: Yes
Wiring Harness Length (in): 10.43 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 5
Driven Or Non-Driven: Driven
Number Of Splines: 30
ABS Ring Type:KEY_TAB Sensor
Number Of ABS Sensor Ring Teeth: 47
Total Hub Diameter (in): 6.18 Inch
Hub Centerbore Diameter (in): 4.72 Inch
Total Hub Height (in): 5.01 Inch
Flange Diameter (in): 2.65 Inch
Flange Offset (in): 2.55 Inch
Flange Shape: Round
Flange Bolt Size (in): 1.77 Inch
Material: Steel
Bearing Type: Ball
Hub Pilot Diameter (in): 3.30 Inch
Fit: 2011 2012 2013 2014 2015 2016 2017 GMC Terrain
Fit: 2010 2011 2012 2013 2014 2015 2016 2017 Chevrolet Equinox
Position:Driver(LH Left) or Passenger(RH Right) Side Rear
ABS Sensor Included: Yes
ABS Connector Shape: Square
Wiring Harness Included: Yes
Wiring Harness Length (in): 10.43 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 5
Driven Or Non-Driven: Driven
Number Of Splines: 30
ABS Ring Type:KEY_TAB Sensor
Number Of ABS Sensor Ring Teeth: 47
Total Hub Diameter (in): 6.18 Inch
Hub Centerbore Diameter (in): 4.72 Inch
Total Hub Height (in): 5.01 Inch
Flange Diameter (in): 2.65 Inch
Flange Offset (in): 2.55 Inch
Flange Shape: Round
Flange Bolt Size (in): 1.77 Inch
Material: Steel
Bearing Type: Ball
Hub Pilot Diameter (in): 3.30 Inch
Fit: 2011 2012 2013 2014 2015 2016 2017 GMC Terrain
Fit: 2010 2011 2012 2013 2014 2015 2016 2017 Chevrolet Equinox
