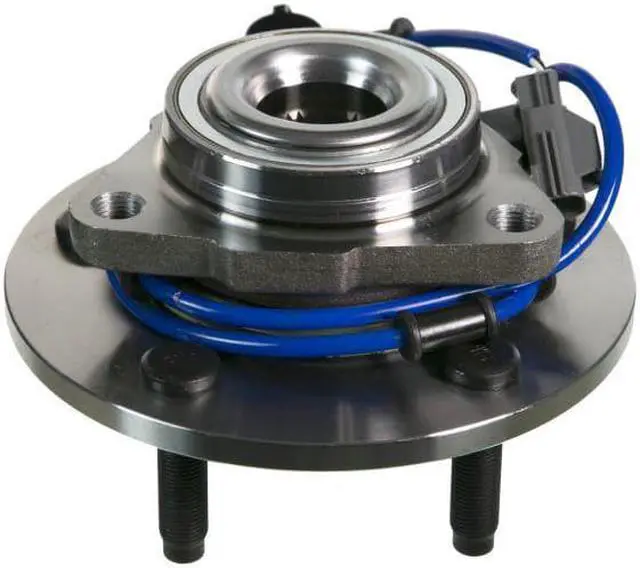

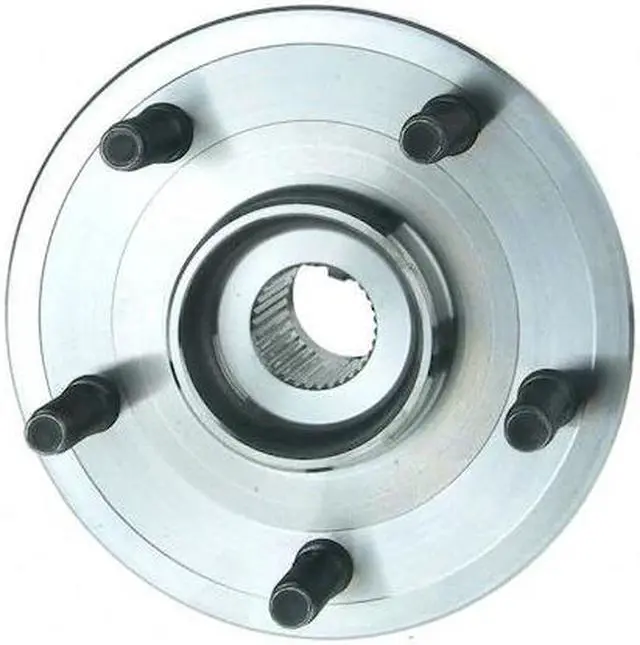

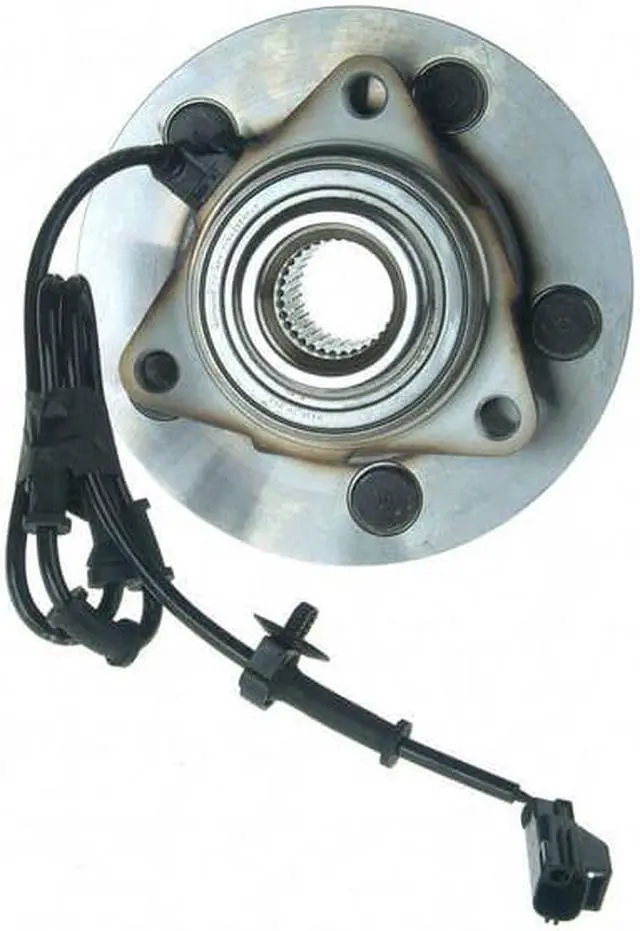

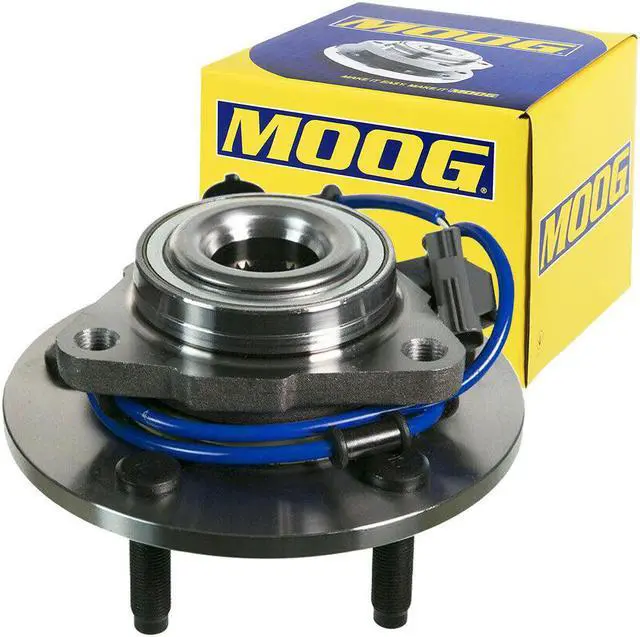

For Dodge Ram 1500 2002 2003-2007 MOOG Front Wheel Bearing Hub Assembly 5Lugs

Description:
Position:Driver(LH Left) or Passenger(RH Right) Side FRONT
ABS Sensor Included: Yes

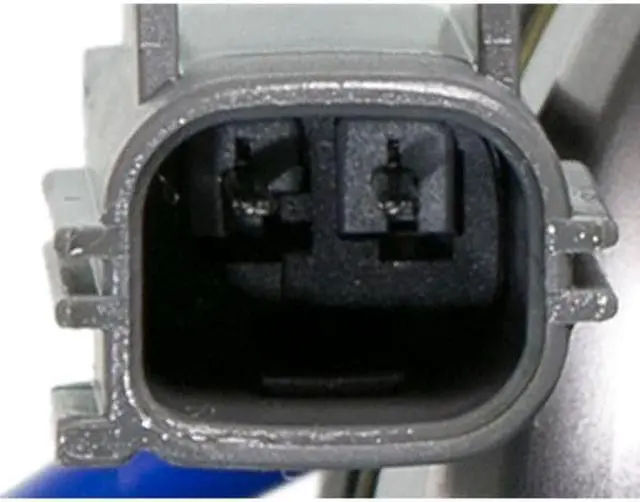

ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 34.65 Inch
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 5
Number Of Flange Bolts Included: 5
Driven Or Non-Driven: Driven
Number Of Splines: 33
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 55
Lug Bolt Thread Size: 9/16-18 Inch
Total Hub Diameter (in): 7.204 Inch
Hub Centerbore Diameter (in): 5.5 Inch
Total Hub Height (in): 4.771 Inch
Flange Diameter (in): 7.204 Inch
Flange Offset (in): 1.834 Inch
Flange Bolt Size (in): 1.968 Inch
Flange Shape: Triangle
Flange Bolt Thread Size: M14-1.50
Outer Ring Width (in): 1.99 Inch
Inner Ring Width (in): 0.91 Inch
Hub Pilot Diameter (in): 3.086 Inch
Material: Steel
Bearing Type: Tapered
Direct Replacement

Fitment:

Fit: 2002 2003 2004 2005 Dodge Ram 1500 1/2 ton 2WD
Fit: 2002 2003 2004 2005 Dodge Ram 1500 1/2 ton 4WD

Replacement Indicator:
ABS light is on
Excessive brake pedal "play"
Pulling to one side when braking
Vibration,felt in the steering wheel
A hummingor rumbling noise

Installation Steps:
Remove the wheel cover and wheel tire.
Remove the caloper.
Remove the break pads and axle nut.
After removing, put the new bearing.
Finally, put all the removed parts ordinally.
