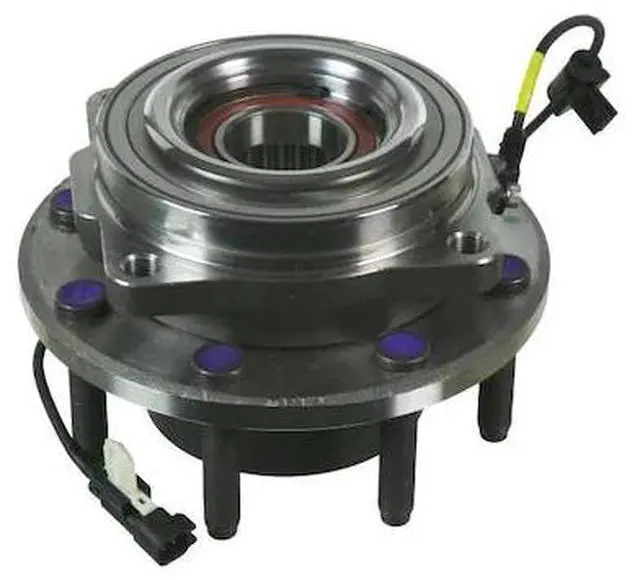

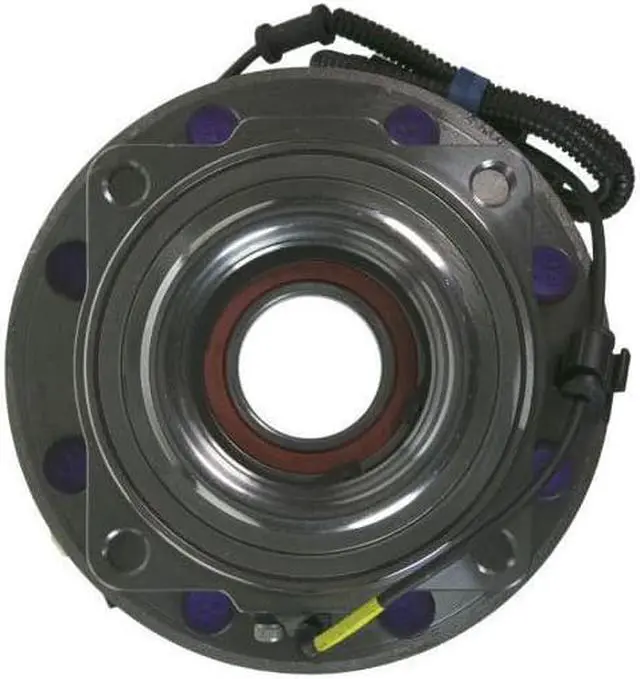

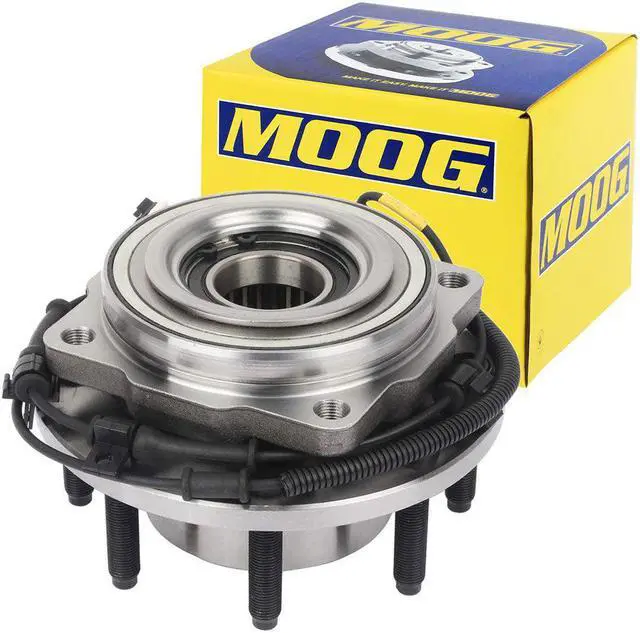

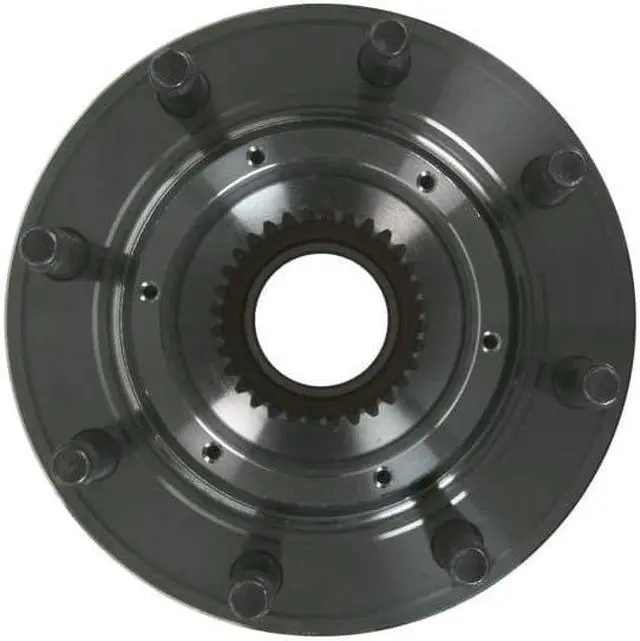

4WD MOOG Front Wheel Hub Bearing For Ford F-250 F-350 Super Duty 8 Lug W/ABS

Description:
Position:Driver(LH Left) or Passenger(RH Right) Side Front

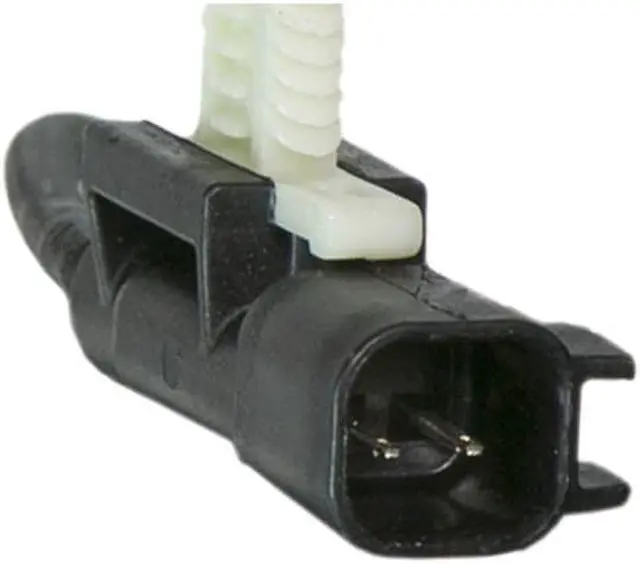

Wiring Harness Included: Yes
Wiring Harness Length (in): 47.24 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 8
Number Of Flange Bolts Included: 0
Driven Or Non-Driven: Driven
Number Of Splines: 32
ABS Ring Type: Sensor
Number Of ABS Sensor Ring Teeth: 60
Total Hub Diameter (in): 8 Inch
Total Hub Diameter (mm): 203.2mm
Hub Centerbore Diameter (in): 6.69 Inch
Hub Centerbore Diameter (mm): 170mm
Total Hub Height (in): 5.22 Inch
Total Hub Height (mm): 132.7mm
Flange Diameter (in): 5.08 Inch
Flange Diameter (mm): 128.95mm
Flange Offset (in): 1.81 Inch
Flange Offset (mm): 46mm
Flange Shape: Round
Flange Bolt Size (in): 2.43 Inch
Flange Bolt Size (mm): 61.6mm
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Hub Pilot Diameter (in): 5.51 Inch
Hub Pilot Diameter (mm): 140mm
KEY_TAB
Fit:
2011 2012 2013 2014 2015 2016 Ford F-250 Super Duty(Front, 4WD)
2011 2012 2013 2014 2015 2016 Ford F-350 Super Duty(Front, 4WD)
