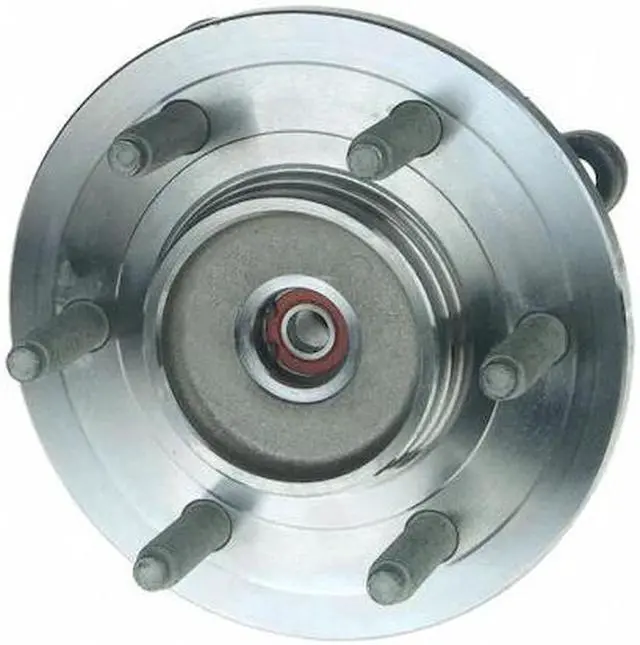

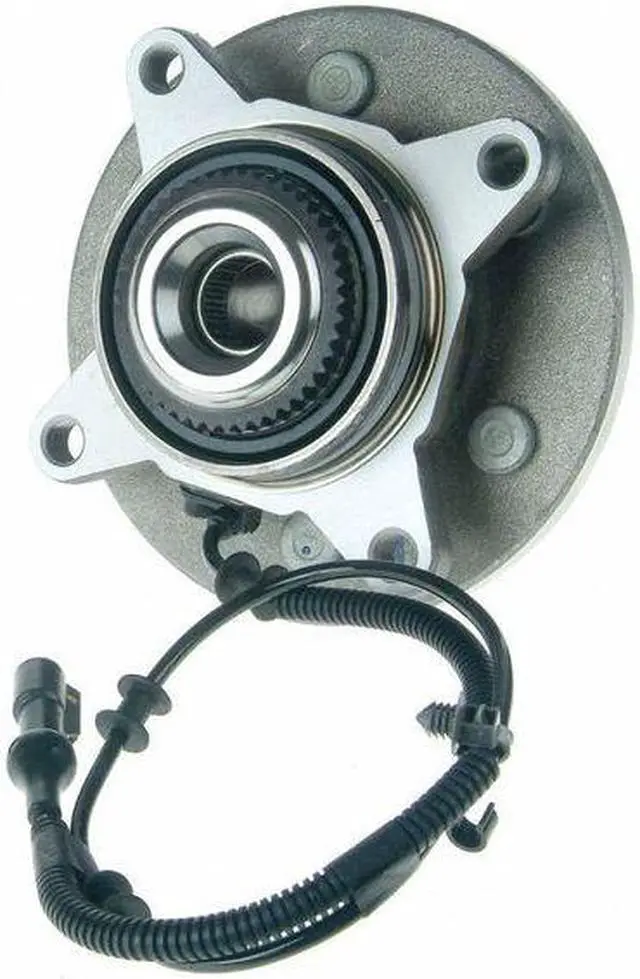

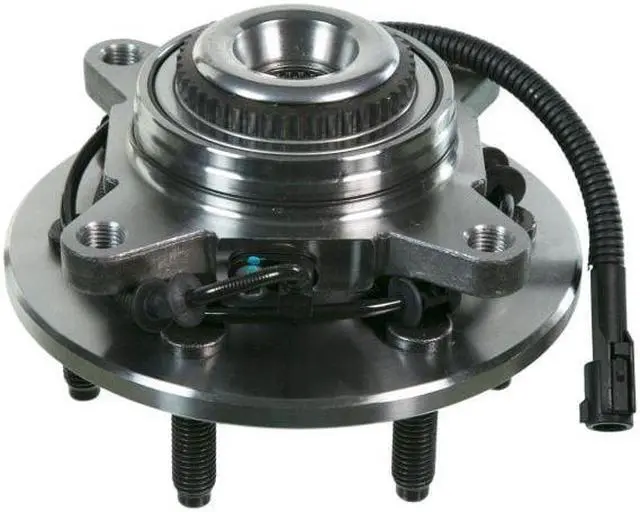

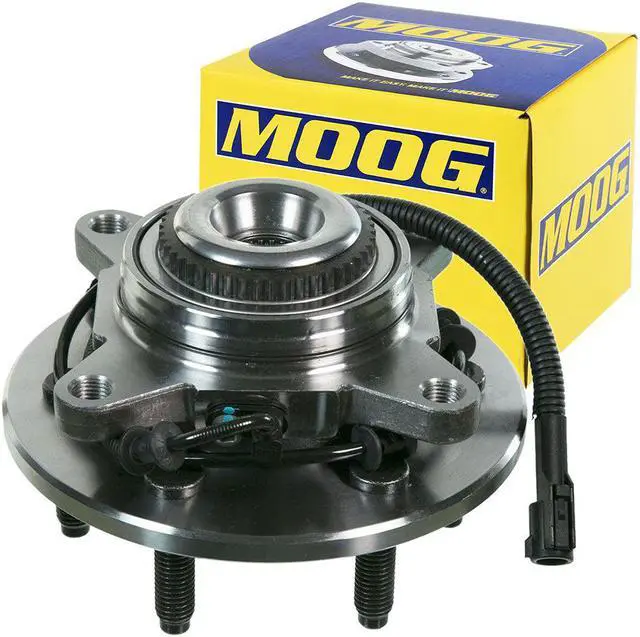

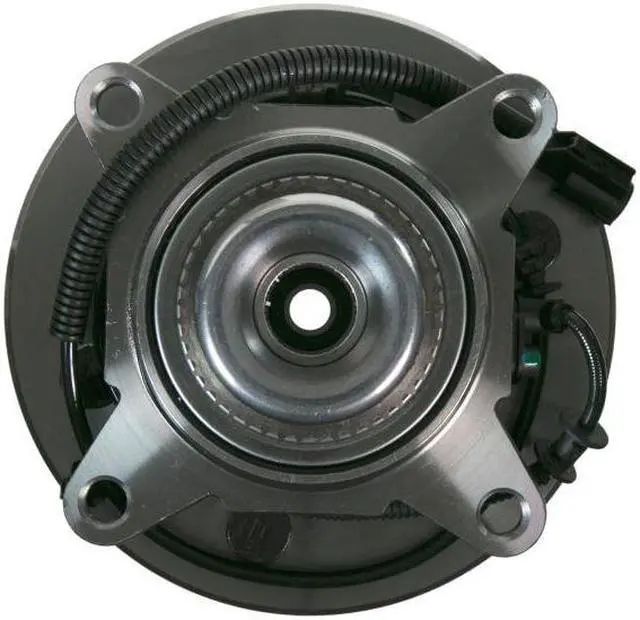

MOOG Front Wheel Bearing Hub for 2004-08 Ford F-150 2006-08 Lincoln Mark LT
- MOOG Front Wheel Bearing Hub for 2004-08 Ford F-150 2006-08 Lincoln Mark LT
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
Position: Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes

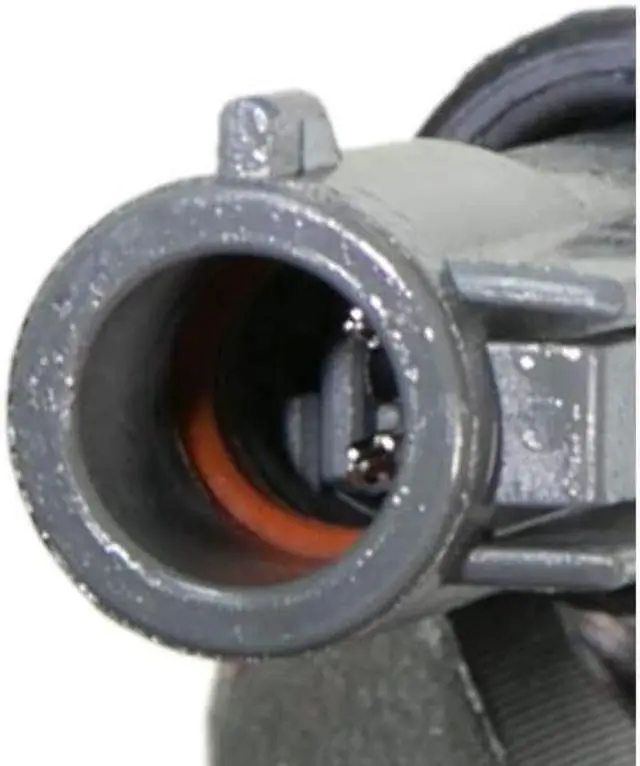

ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 34.25 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 6
Driven Or Non-Driven: Driven
Number Of Splines: 45
ABS Ring Type: Sensor
Lug Bolt Thread Size: M14-2.0
Total Hub Diameter (in): 7.20 Inch
Total Hub Height (in): 5 Inch
Flange Diameter (in): 7.2 Inch
Flange Offset (in): 1.793 Inch
Flange Shape:KEY_TAB Square
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Hub Pilot Diameter (in): 3.91 Inch
KEY_TAB KEY_TAB KEY_TAB
OE Part Number:
515079,WA515079,29515079,BR930460,
5L3Z1104AA, 5L3Z1104AB,5L342C530AD, 5L342C530AE.
Fitment:
Fit: 2005 2006 2007 2008 Ford F150 1/2 ton P/U 4WD
Fit: 2005 2006 2007 2008 Ford F150 1/2 ton P/U AWD
Fit: 2006 2007 2008 Lincoln Mark LT 4WD
Position: Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 34.25 Inch
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 6
Driven Or Non-Driven: Driven
Number Of Splines: 45
ABS Ring Type: Sensor
Lug Bolt Thread Size: M14-2.0
Total Hub Diameter (in): 7.20 Inch
Total Hub Height (in): 5 Inch
Flange Diameter (in): 7.2 Inch
Flange Offset (in): 1.793 Inch
Flange Shape:KEY_TAB Square
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Hub Pilot Diameter (in): 3.91 Inch
KEY_TAB KEY_TAB KEY_TAB
OE Part Number:
515079,WA515079,29515079,BR930460,
5L3Z1104AA, 5L3Z1104AB,5L342C530AD, 5L342C530AE.
Fitment:
Fit: 2005 2006 2007 2008 Ford F150 1/2 ton P/U 4WD
Fit: 2005 2006 2007 2008 Ford F150 1/2 ton P/U AWD
Fit: 2006 2007 2008 Lincoln Mark LT 4WD
