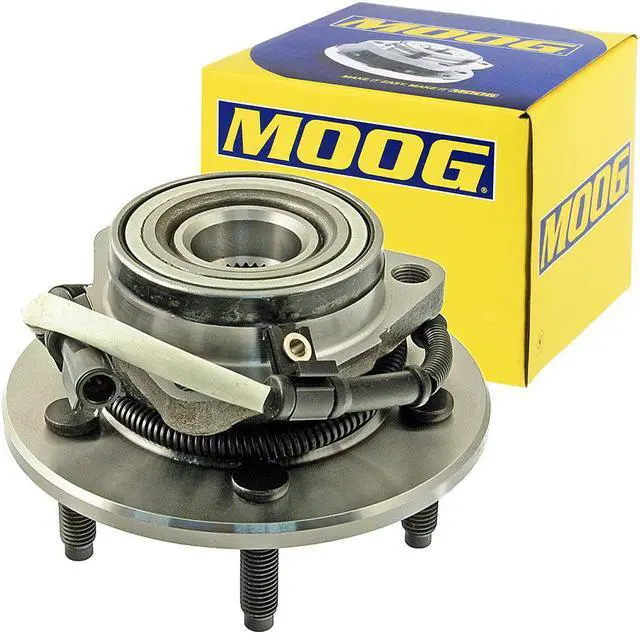

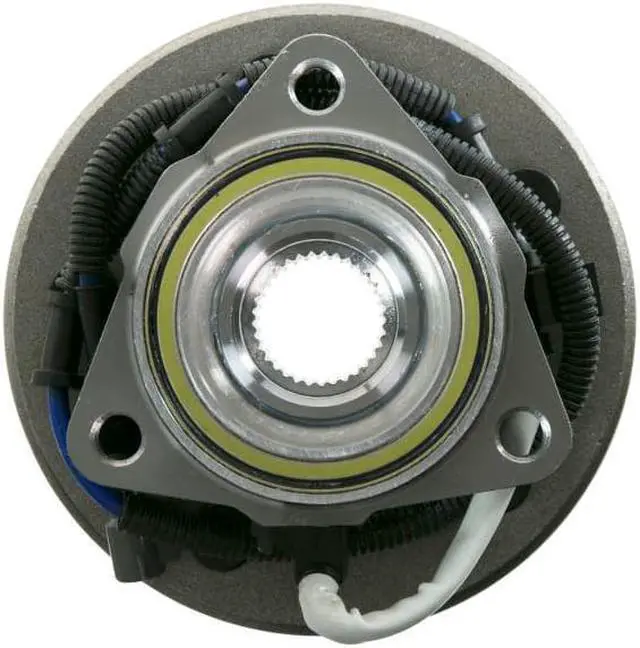

4WD Front MOOG Wheel Hub & Bearing for 2000 - 2003 Ford F-150 F150 w/ABS 5 Lug

Description:
Position:Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes
ABS Connector Shape: Round
Wiring Harness Included: Yes
Wiring Harness Length (in): 33.66 Inch
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included:KEY_TAB 5
Number Of Flange Bolts Included: 5
Driven Or Non-Driven: Driven
Number Of Splines: 33
ABS Ring Type: Tone
Number Of ABS Sensor Ring Teeth: 55
Lug Bolt Thread Size: M14-2.0
Total Hub Diameter (in): 7.145 Inch
Total Hub Diameter (mm): 181.5mm
Hub Centerbore Diameter (in): 5.311 Inch
Hub Centerbore Diameter (mm): 134.9mm
Total Hub Height (in): 4.866 Inch
Total Hub Height (mm): 123.6mm
Flange Diameter (in): 7.145 Inch
Flange Diameter (mm): 181.5mm
Flange Offset (in): 1.933 Inch
Flange Offset (mm): 49.1mm
Flange Shape: Triangle
Flange Bolt Size (in): 1.897 Inch
Flange Bolt Size (mm): 48.2mm
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2.12 Inch
Inner Ring Width (in): 0.94 Inch
Hub Pilot Diameter (in): 3.537 Inch
Hub Pilot Diameter (mm): 89.85mm

Fit:
2000 2001 2002 2003 2004 Ford F-150 (Front, 4WD)
2004 Ford F-150 Heritage (Front, 4WD)
