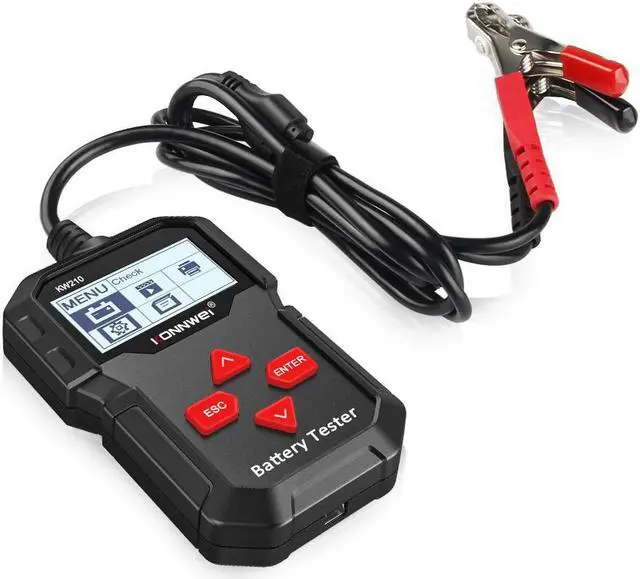

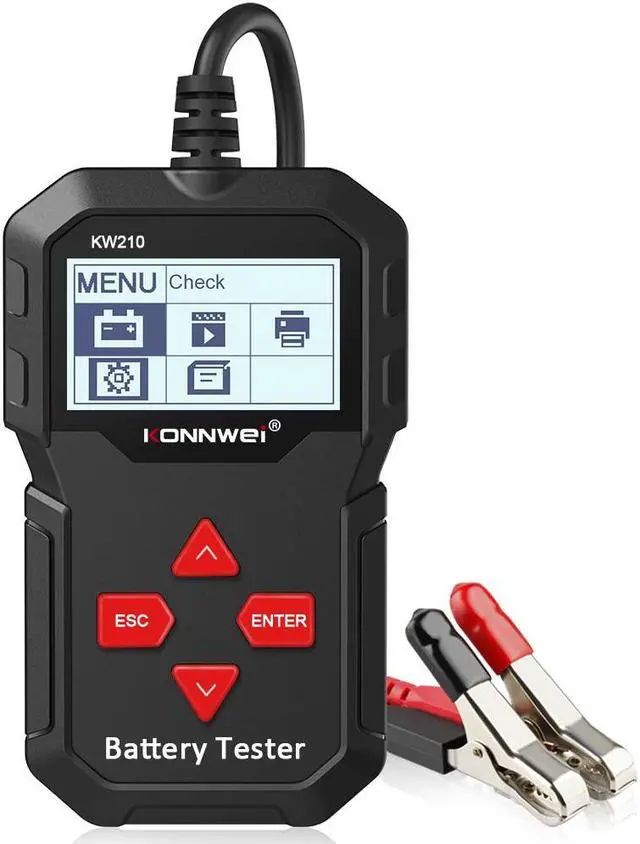

[Authorized Distributor] KONNWEI KW210 Automatic Smart 12V Car Battery Tester Auto Battery Analyzer 100 to 2000CCA Cranking Car Battery Tester KW210

Product Description
KONNWEI KW210 is the newest battery tester upgraded from the old classic backlit tester in the market, aiming at check battery health fast and accurately, as well as check the alternator working status. It's a professional vehicle diagnostic tool for checking your battery system issues by using the graphing voltage monitoring tool, with its color screen and unique pattern design, life time free update service, the KONNWEI KW210 is a perfect battery testing tool for your job and the family.

KONNWEI KW210 Languages
English, Russian, French, Spanish, German, Italian, Portuguese, Dutch

KW210 Battery Tester Function:
Identify battery status Good or Replace
Check Battery Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
Check Internal resistance value (m)
Display Life in percentage (%)

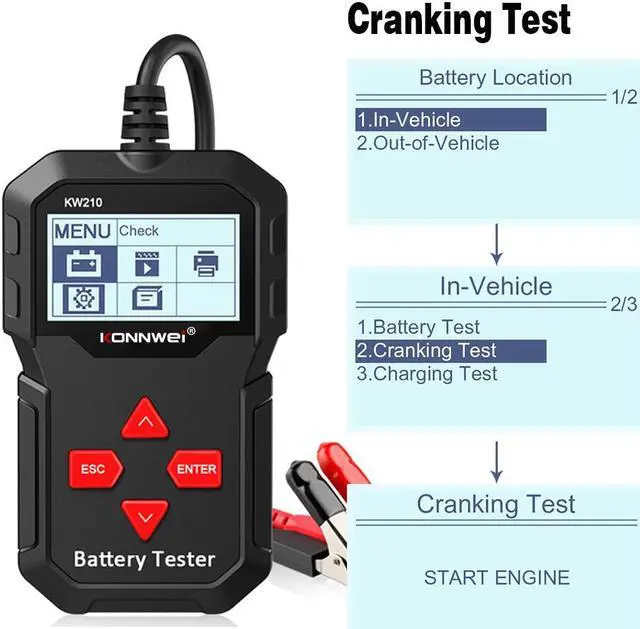

Battery Cranking Test, load test
Battery Charging Test, Ripple Test
Graphing voltage real time monitoring
Test results storage and review
Print test results and battery report on PC
Life time upgrade free


KW210 Battery Tester Features
*Fast and smooth running speed with STM32 chip set hardware
*Accurate test results, using high precision amplifier and calibrated by professional battery testing tool
*Wide testing range cover from CCA 100- 2000, 30- 220 AH, best in the market
*Industry initiative graphical Battery Voltage real time monitoring
*Unique battery results display in percentage
Test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.
*Polarity reverse connection protection, reverse connection will not damage the tester or affect the vehicle and battery.
*Directly test the battery with loss of electricity, no need to full charge before testing.
*Testing standards include currently the world's majority of battery standards, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.

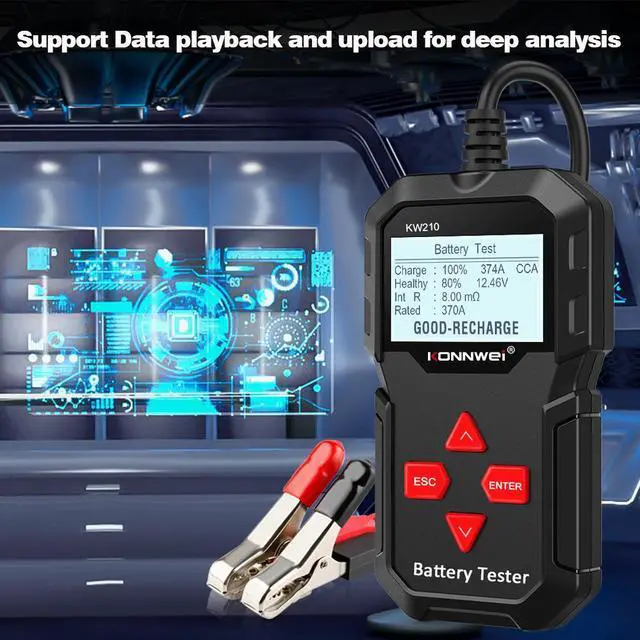

*Data Storage and upload to PC for printing
*Life time upgrade free by one-click smart cloud update
*Large color screen LCD display, pattern design

KONNWEI KW210 Specification
Display: 2.4 '' Color TFT screen
Operating Temperature: -20 to 70 (-4 to 158 )
Power: 9 to 16 V provided via vehicle
Supported Battery type: CCA, ICE, EN, DIN, CA, BCI, MCA, SAE, GB, JIS

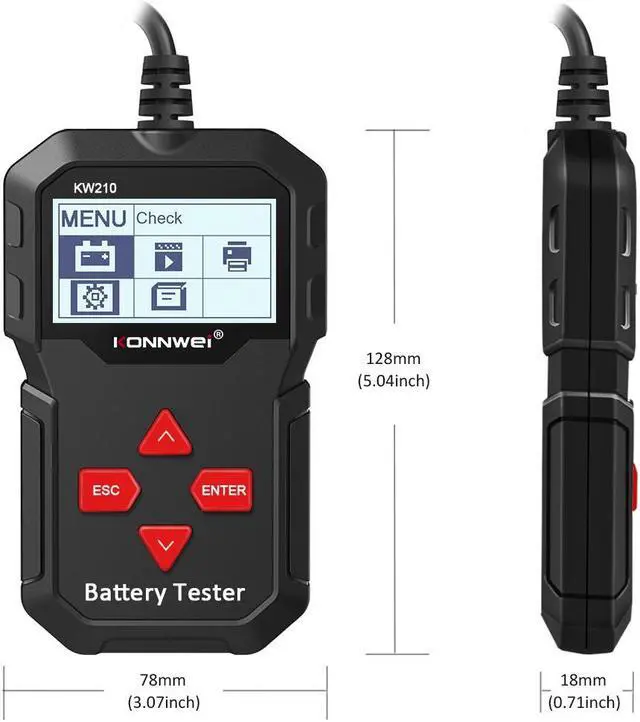

Device Dimensions: 16.5 cm x 6cm x 2.5 cm
Weight: 450 g

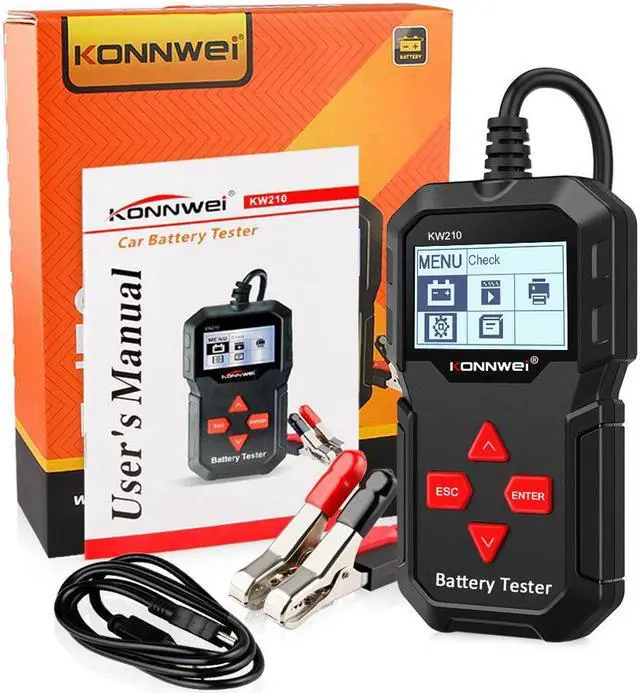

Package list
1* KONNWEI KW210 Battery Tester Unit
1* User's Manual
1* USB Cable for upgrade and print
1* Safe packing box (plastic protection inside)
