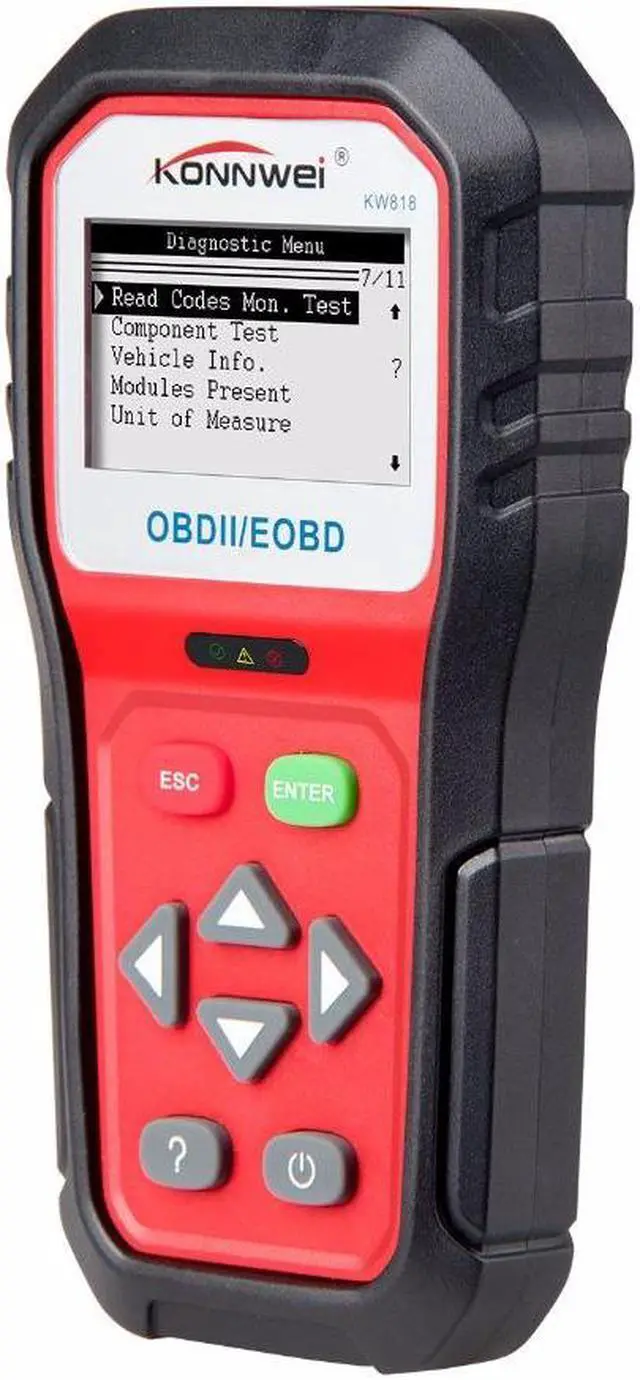

[Authorized Distributor] KONNWEI KW818 OBD2 EOBD2 Automotive Code Reader Engine DetectorCar Diagnostic Tool Support Free Upgrade System Print Data On PC KW818

KONNWEI KW818 Enhanced OBD2 Scanner The KONNWEI KW818 is the newest designed with the brand new diagnostic interface (UI) car diagnsotic scanner. Universal OBDII /EOBD/ CAN protocols makes it work with cars worldwide, new added battery check function, you will get not only a scanner, but also a car battery checker.

KW818 ODB2 Scanner Function List:

1. Read and erase fault code from engine, find out failure reason for check engine light coming on.

2. Turns off Check Engine Light (MIL), warning light, clears codes and resets monitors

3. Directly show difination of OBDII Codes, without check online.

4. Displays monitor and I/M readiness status (emission status)

5. Reads and display live PCM data stream, live sensor readings, up to 50 PID/S, and show it in graphical mode.

6. Views freeze frame data to analyze the real cause of engine failures

7. Displays live O2 oxygen sensor test data

8. Enhanced OBD2 Mode 6 On Board Monitoring Test Results for Specific Monitored Systems.
9. EVAP System test data
10. Retrieves vehicle information (VIN code, CIN and CVN Number)

Extra Function for KW818
1. 12V car battery status check, compare with user manual to verify if your battery need to be replacement.

2. Data stream storage, and playback even off vehicles.

3. Allows you to print out 3 kinds of stored data: DTCs, Freeze frame, Live sensor readings. DIY your diagnostic reports available.

4. Troubleshooter code tips guide you to find the root cause of a trouble code faster, save diagnosis and repair time.

KONNWEI KW818 Supports Car Makes KW818 supports both diesel and gasoline vehicles, as long as the car is compliant with standard OBDII protocols, with OBDII 16pins Diagnostic Port.

KONNWEI KW818 Specification Display: 2.8 '' Wide Backlit screen
Operating Temperature: 0 to 60 (32 to 140 )
Storage Temperature: -20 to 70 (-4 to 158 )
Power: 8 to 18 V provided via vehicle
Supported Protocols: J1859- 41.6, J1850- 10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898)
Device Dimensions: 19.5 cm ( 7.68 '') x 10cm ( 3.94 '') x 3.5 mm ( 1.38 '')
Weight: 600 g

KONNWEI KW818: Language features
Seven languages: English, French, German, Dutch, Spanish, Portuguese, Russian

KONNWEI KW818 product packaging and information
Product size ( cm):
Packing size (cm): 20*10*4
Product net weight (kgs): 25.5 * 18.5 *7
Packing net weight (Kg): 0.48
Packing number: 0.54
Box size: 40pcs/cn
Total carton: 53*38*52cm
weight: 23.4KG / carton

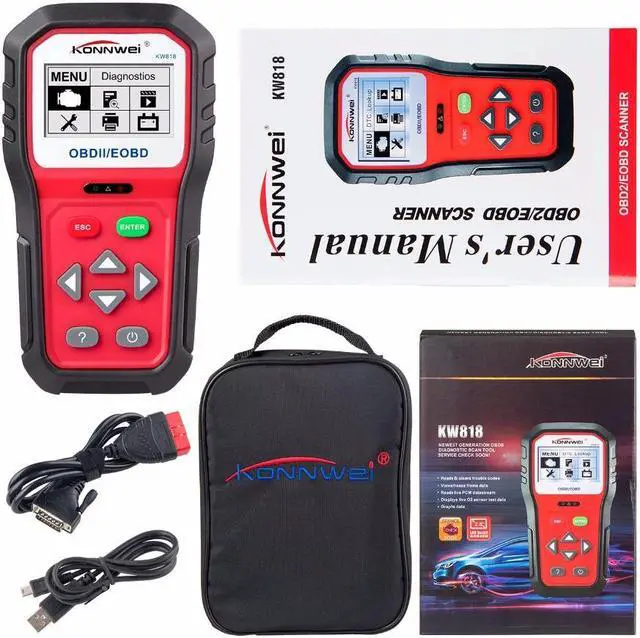

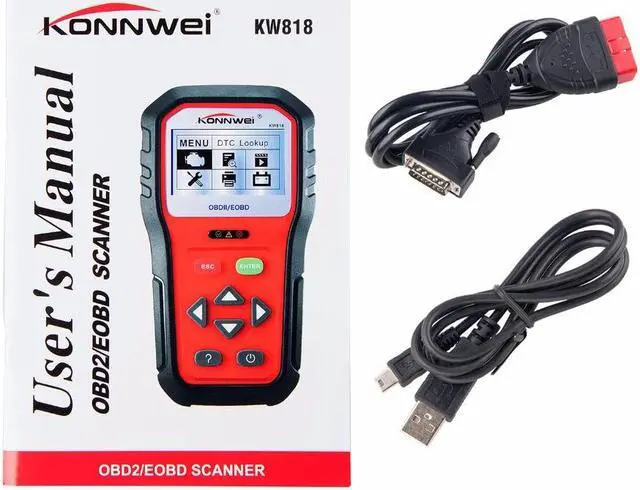

PACKING LIST:
1* KONNWEI KW818
1* User's Manual
1* OBD2 Diagnostic Cable
1* USB Cable
1* Protective nylon bag
